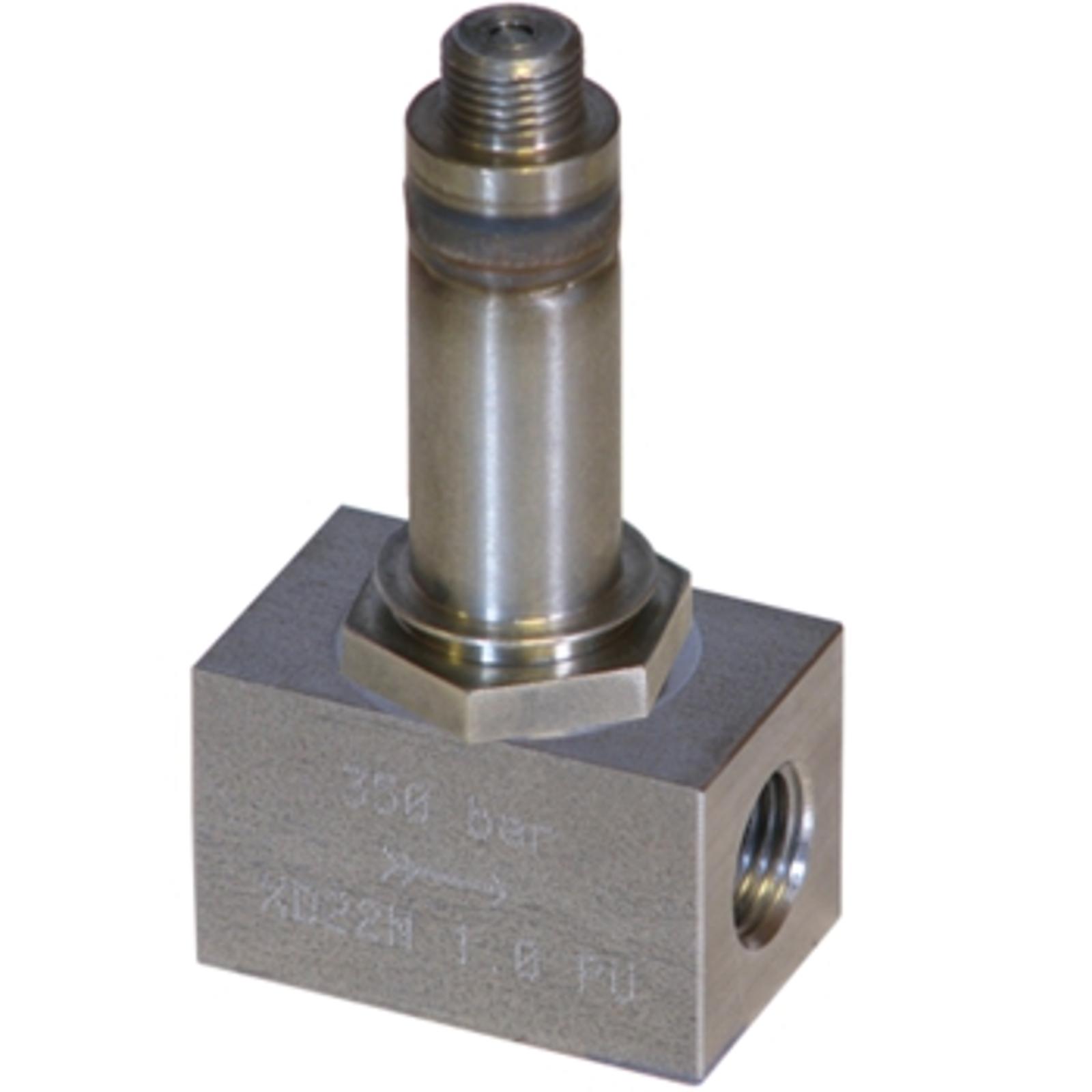

Stainless steel valve options, offering you solutions in niche markets.
High pressure, Stainless steel timer drain
High pressure timer controlled condensate drains are designed to automatically remove condensate from compressed air systems up to 500 bar. The FLUIDRAIN-HP-S range is designed to remove condensate from high pressure compressed air systems and systems that require stainless steel valves (food industry etc.).The FLUIDRAIN-HP-S range of timer drains offers true installation simplicity and it is recognised as the most reliable and best performing condensate drain worldwide.
The FLUIDRAIN-HP-S range offers trouble free condensate draining on systems up to 500 bar, depending on the valve orifice, valve material and seal selection. Brass and Stainless steel valve options are available depending on the required pressure.
Private labelling possible, offering you personal branding possibilities.

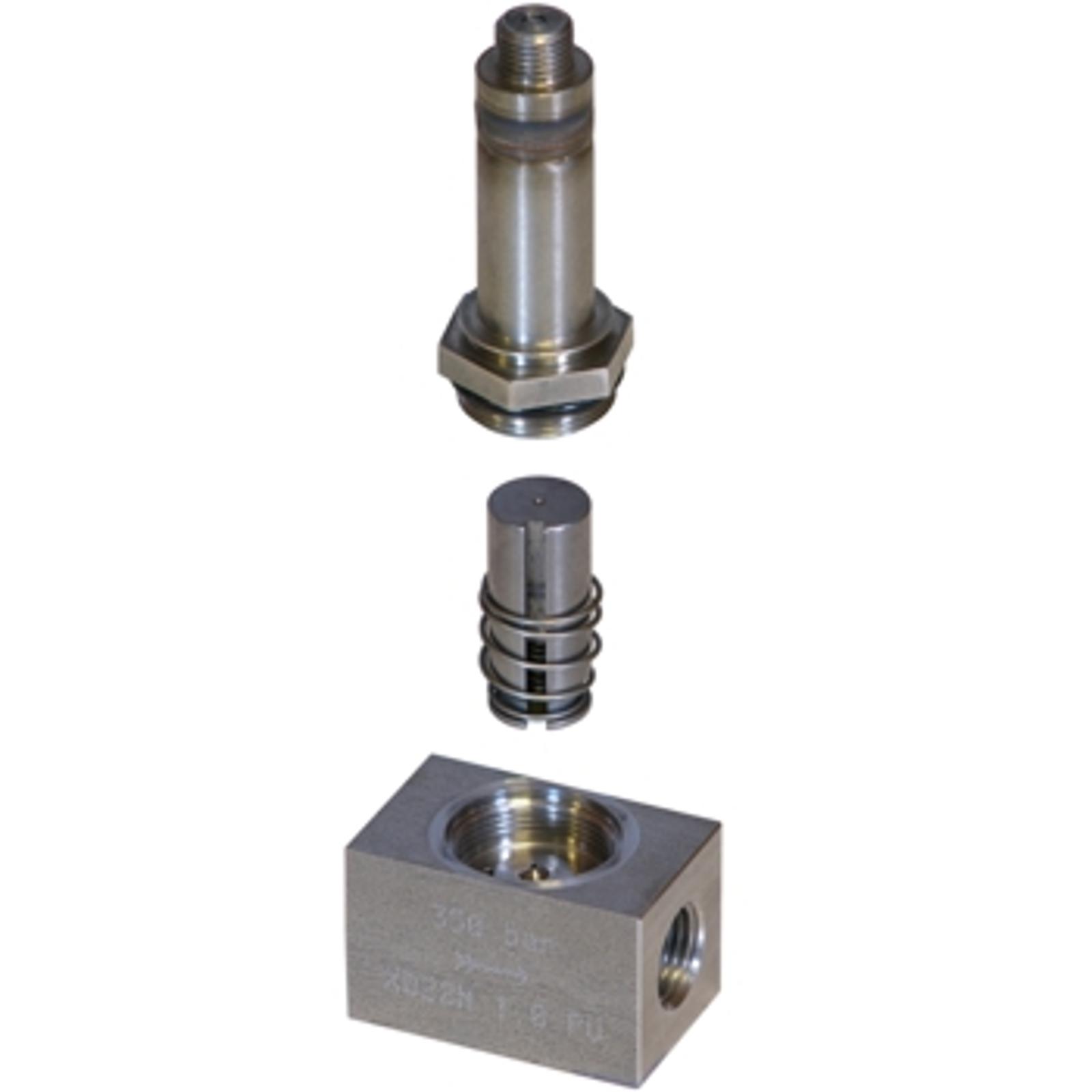

Serviceable valve construction, offering you routine maintenance revenues.
- Does not air-lock during operation.
- Suitable for all types of compressed air systems up to 500 bar, consult JORC for details.
- TEST (micro-switch) feature.
- Private labelling possible.
- Special seals available for special applications.
- Accurate cycle timing.
- FPM, Peek, PU, NBR and several other seals are available.
| Any size |
| 0 - 500 bar (depending on FLUIDRAIN model) |
| 12 - 380 VAC/DC 50/60Hz. (please indicate) |
| 1 - 55 °C |
| 1 - 55 °C |
| 0.5 - 10 seconds / 0.5 - 45 minutes |
| SMD technology, ensuring consistency in production |
| Bright LED illumination |
| Yes |
| 2/2 way, direct acting |
| Depending on pressure |
| FPM or other, depending on pressure and application |
| 1/4″ (BSP or NPT) |
| 1 cm |
| Yes |
| Brass and Stainless steel valve constructions, depending on pressure |
| DIN 43650-A |
| IP65 (NEMA4) |
fluidrain-hp-bv-en-4-20.pdf
OPTIMUM-HP-S
fluidrain-hp-bv-fr-4-20.pdf
OPTIMUM-HP-S
fluidrain-hp-bv-de-4-20.pdf
FLUIDRAINS-HP-(S)
fluidrain-hp-bv-pt-4-20.pdf
FLUIDRAIN-HP
fluidrain-hp-bv-es-4-20.pdf
FLUIDRAIN-HP-(S)
fluidrain-hp-bv-nl-4-20.pdf
FLUIDRAIN-HP
fluidrain-hp-bv-jp-27-11-2020.pdf
FLUIDRAIN-HP
fluidrain-hp-bv-rs-4-20.pdf
FLUIDRAIN-HP
timerdrains-catalogus-2020-bv-1-4-2020.pdf
TIMER DRAINS
timerdrains-frans-2019.pdf
TIMER DRAINS
timerdrains-espanol-llc-2019.pdf
TIMDER DRAINS
fluidrain-hp-over80bar-english-2-2022.pdf
FLUIDRAIN-HP
fluidrain-hp-over80bar-francais-2-2022.pdf
FLUIDRAIN-HP-(S)
fluidrain-hp-over80bar-deutsch-2-2022.pdf
FLUIDRAIN-HP
fluidrain-hp-over80bar-italiano-2-2022.pdf
FLUIDRAIN-HP-(S)
fluidrain-hp-over80bar-espanol-2-2022.pdf
FLUIDRAIN-HP-(S)
fluidrain-hp-over80bar-nederlands-2-2022.pdf
FLUIDRAIN-HP-(S)
fluidrain-hp-imi-polski-2-2022.pdf
FLUIDRAIN-HP-(S)
fluidrain-hp-over80bar-russisch-2-2022.pdf
FLUIDRAIN-HP-(S)
fluidrain-hp-s-bv-dim-mm.pdf
FLUIDRAIN-HP-(S)
BALL VALVE STRAINERS
The FLUIDRAIN and EZ-1 drain valves have an orifice of 4.5 mm (EZ-1 4.0 mm).
SERVICE KITS
Great care is taken to ensure long lasting components are selected and applied in our products.
MOUNTING BRACKETS
Mounting brackets allow easy installation of condensate drains and small oil/water separators to walls, on the floor or inside of refrigerated dryers.
