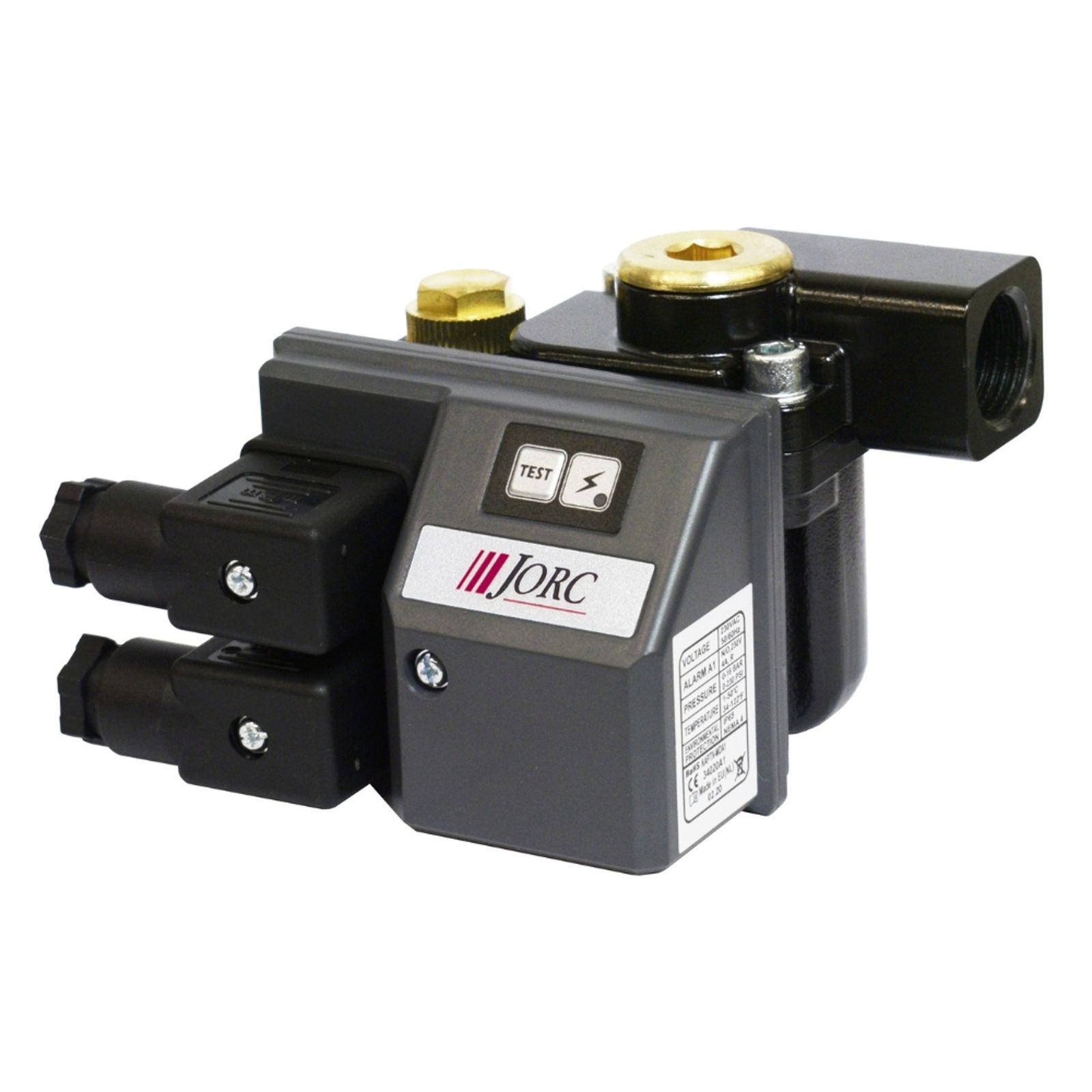

Its compact design doesn’t compromise on performance, making it the top choice for fridge dryers and filters. Experience unmatched reliability and versatility with KAPTIV-MD-AL-MULTI. Your air systems deserve nothing less. Features multiple inlets for improved flexibility.
Technical features:
Max. compressor capacity | 10 m³/min. (350 CFM) regardless of climate zone |
Max. drainage capacity | 45 litres condensate per hour at 16 bar (230 psi) |
Min./max. system pressure | 0 - 16 bar (up to 230 psi) |
Min./max. medium temperature | 1 - 60 °C (34 - 140 °F) |
Min./max. ambient temperature | 1 - 60 °C (34 - 140 °F) |
Supply voltage options | 230VAC / 115VAC / 24VAC / 24VDC |
Enclosure protection rating | IP 65 (NEMA 4) |
Connector type (power and alarm) | DIN 43650-B |
Inlet connection | 1/2” (BSP or NPT) |
Inlet height | 74 mm (2.95 in) |
Side inlet adapter | Yes, optional |
Outlet connection | 1/4” (BSP), with brass hose barb adapter |
Valve type | 2/2 way, direct acting |
Valve orifice | 2 mm (0.08 in) |
Valve seals | FPM |
Serviceable valve | Yes |
Integrated mesh strainer | Yes |
Housing material | Corrosion resistant aluminium, EP coating |
Test feature | Yes |
Visual alarm * | Yes, LED (power) indication on the drain |
Alarm feature type A1 | Normally open alarm output contact (potential free relay) |
Alarm feature type A2 | Normally closed alarm output contact (potential free relay) |
* Power LED on the drain starts flashing fast when in alarm mode.
** A1 = Normally open contacts, closed when in alarm phase.
*** A2 = Normally closed contacts, open when in alarm phase.
