FLUIDRAIN

Electronic timer drain

The FLUIDRAIN timer controlled condensate drain is a combination of a solenoid valve and an electronic timer designed to automatically remove condensate from compressed air systems.

The FLUIDRAIN is designed to remove condensate from compressors, compressed air dryers and receivers up to any size, type or manufacturer.

The FLUIDRAIN offers true installation simplicity and it is recognised as the most reliable and best performing condensate drain worldwide. The large orifice in the direct acting valve, combined with its sophisticated timer module ensure many years of trouble-free draining of condensate providing minimum service work is carried out.

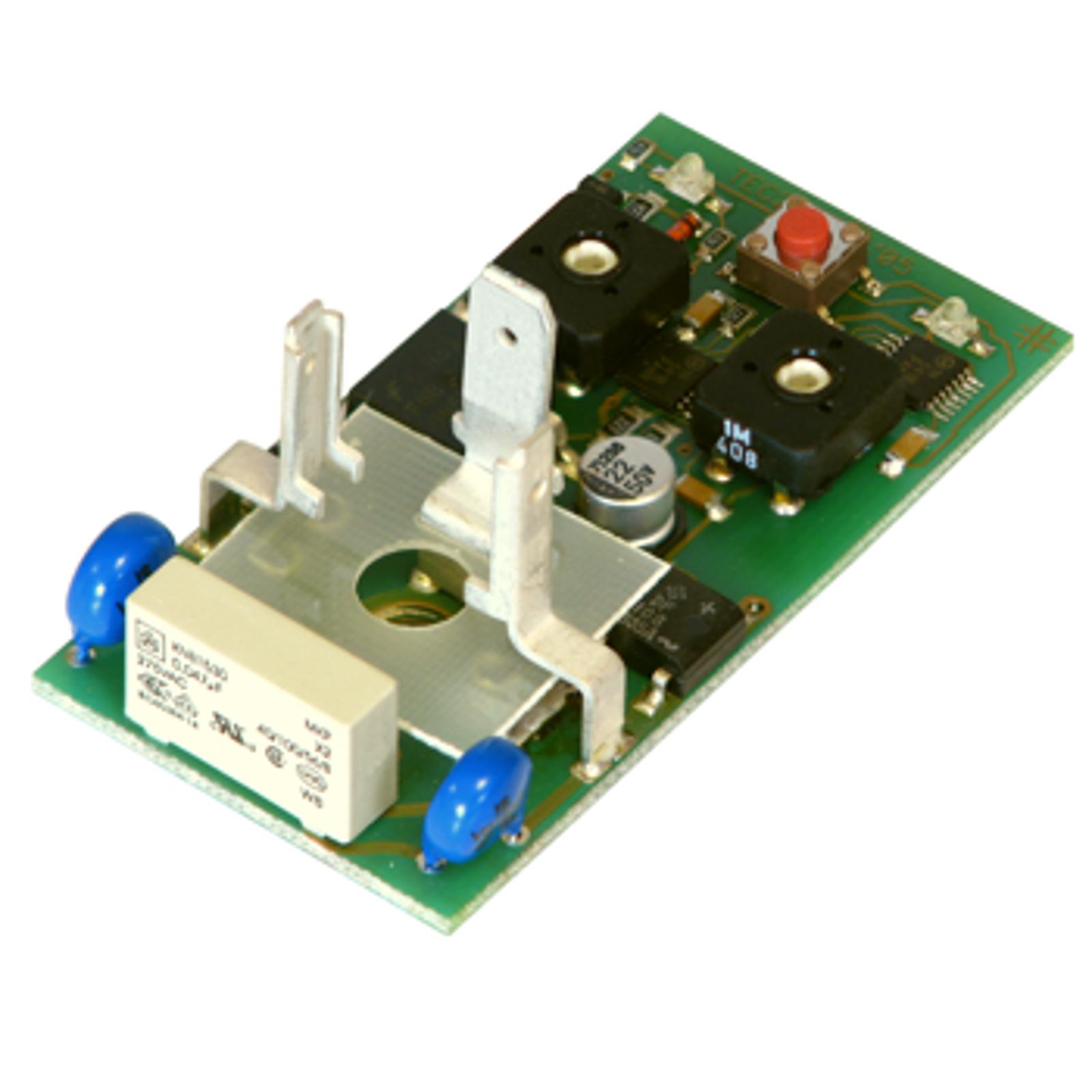

High quality PCB components, offering you consistent quality.

fluidrain timer pcb

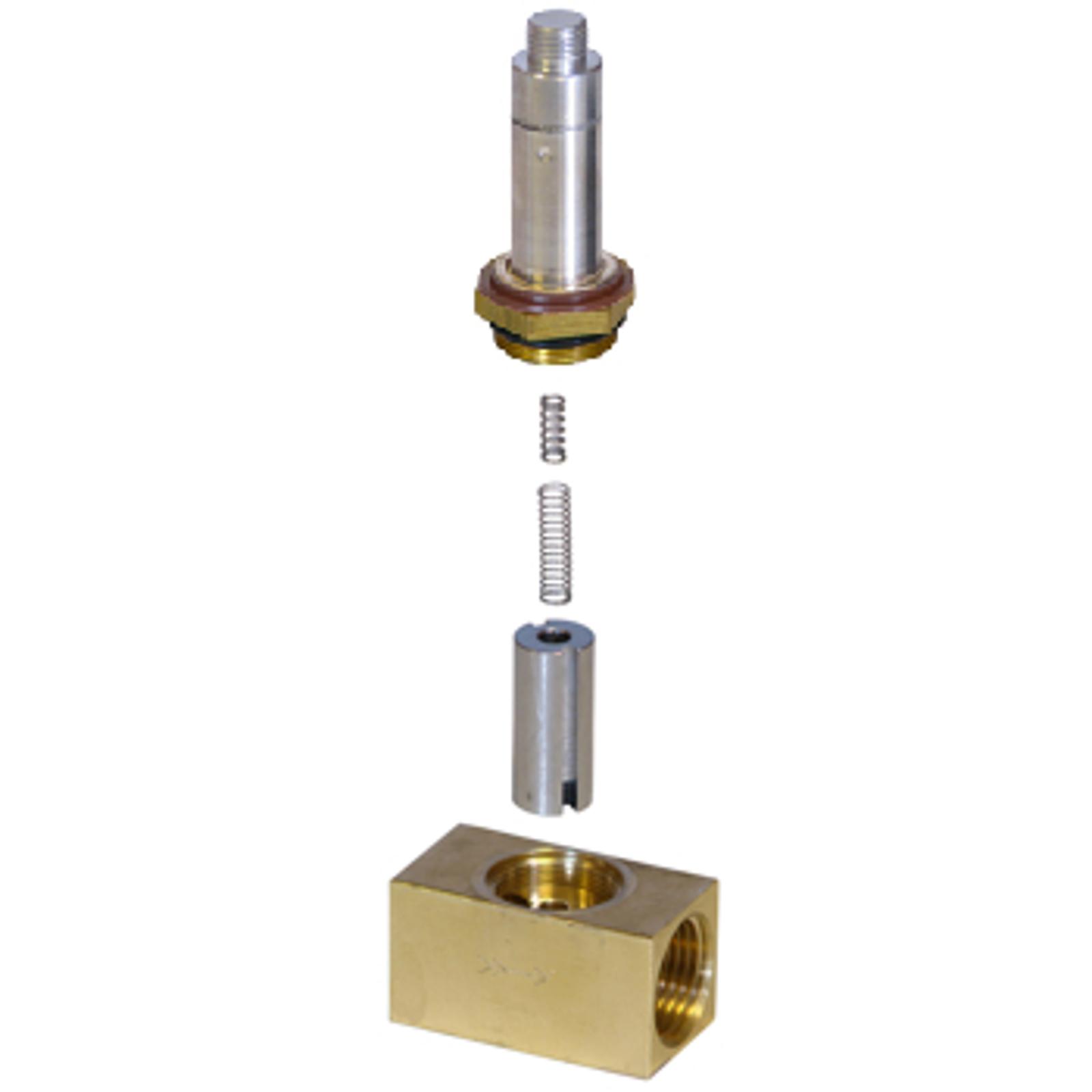

Serviceable valve, offering you annual maintenance revenues.

fluidrain valve service

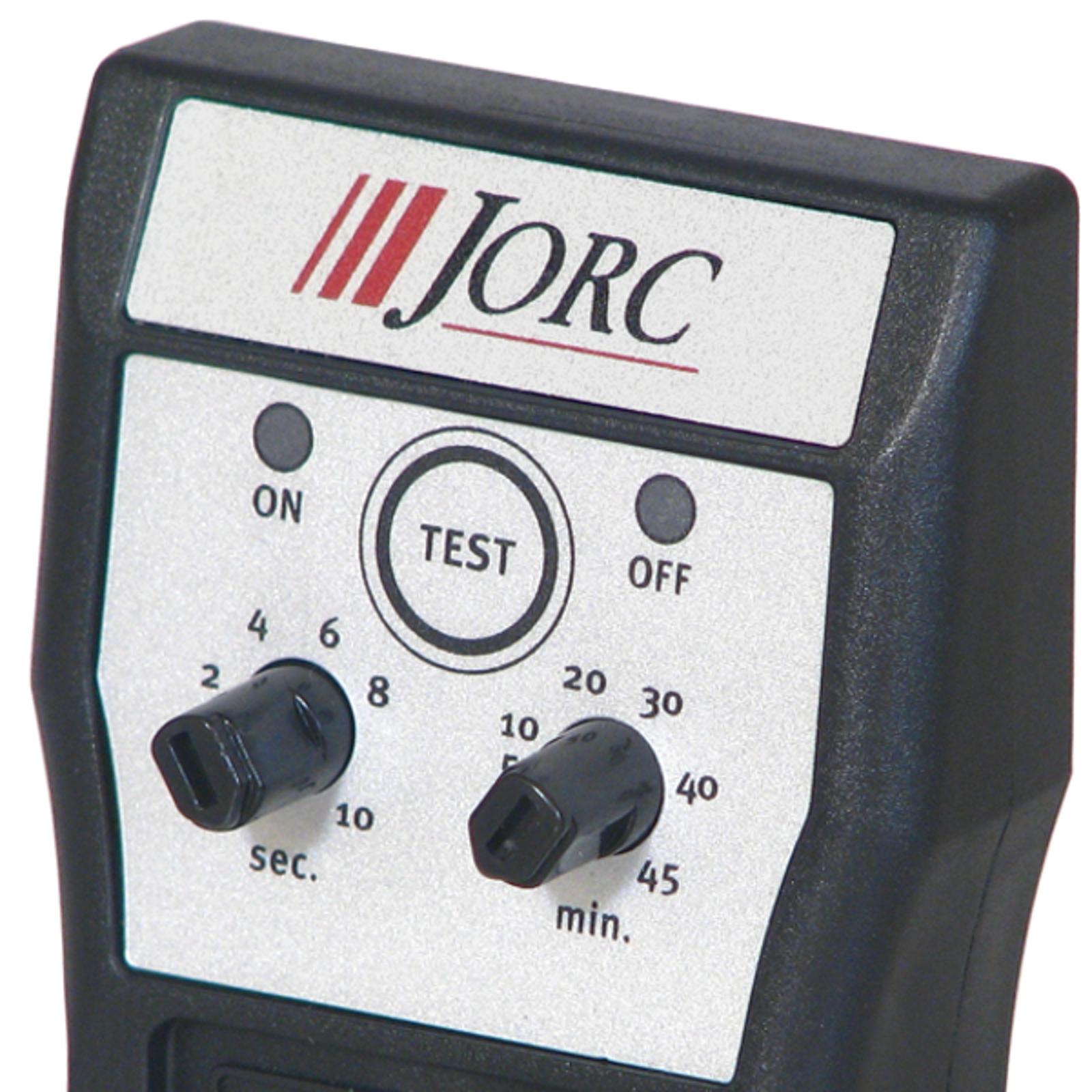

Private labelling possible, offering you product personalisation.

fluidrain label
  • Does not air-lock during operation.
  • Suitable for any type of compressed air systems and up to any size.
  • Also available in Stainless steel and High pressure.
  • TEST (micro-switch) feature.
  • Accurate time cycles.
  • Large (4.5 mm) valve orifice.
  • Voltage range 12 - 380VAC/DC.
  • Environmental low Watt version available.

  • MAXIMUM COMPRESSOR CAPACITY

Any size

  • PRESSURE RANGE

0 - 16 bar (higher pressure available, see FLUIDRAIN-HP-S)

  • SUPPLY VOLTAGE OPTIONS

12 - 380 VAC/DC 50/60Hz. (please indicate)

  • MEDIUM TEMPERATURE

1 - 55 °C

  • AMBIENT TEMPERATURE

1 - 55 °C

  • TIMER CYCLE RANGE (ON / OFF)

0.5 - 10 seconds / 0.5 - 45 minutes

  • TIMER PCB

SMD technology, ensuring consistency in production

  • TIMER CYCLE INDICATION

Bright LED illumination

  • TEST FEATURE

Yes

  • VALVE TYPE

2/2 way, direct acting

  • VALVE ORIFICE

4.5 mm

  • VALVE SEALS

FPM

  • INLET/OUTLET CONNECTIONS

1/8″, 1/4″, 3/8″, 1/2″ (BSP or NPT)

  • INLET CONNECTION HEIGHT

1 cm

  • SERVICEABLE VALVE

Yes

  • VALVE HOUSING MATERIAL

Brass (Stainless steel available)

  • POWER CONNECTION

DIN 43650-A

  • ENVIRONMENTAL PROTECTION

IP65 (NEMA4)
