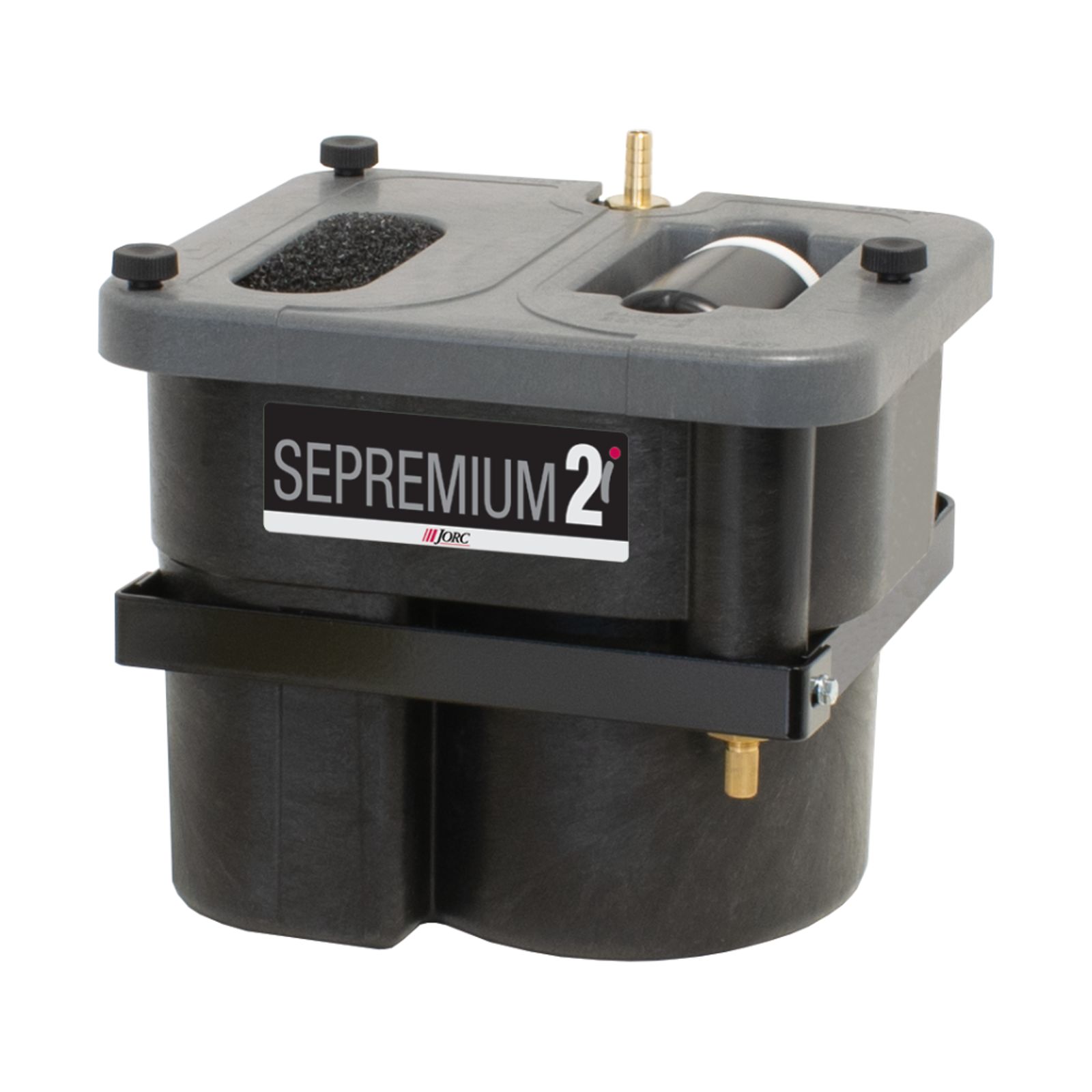

SEPREMIUM 2i oil water separator main image

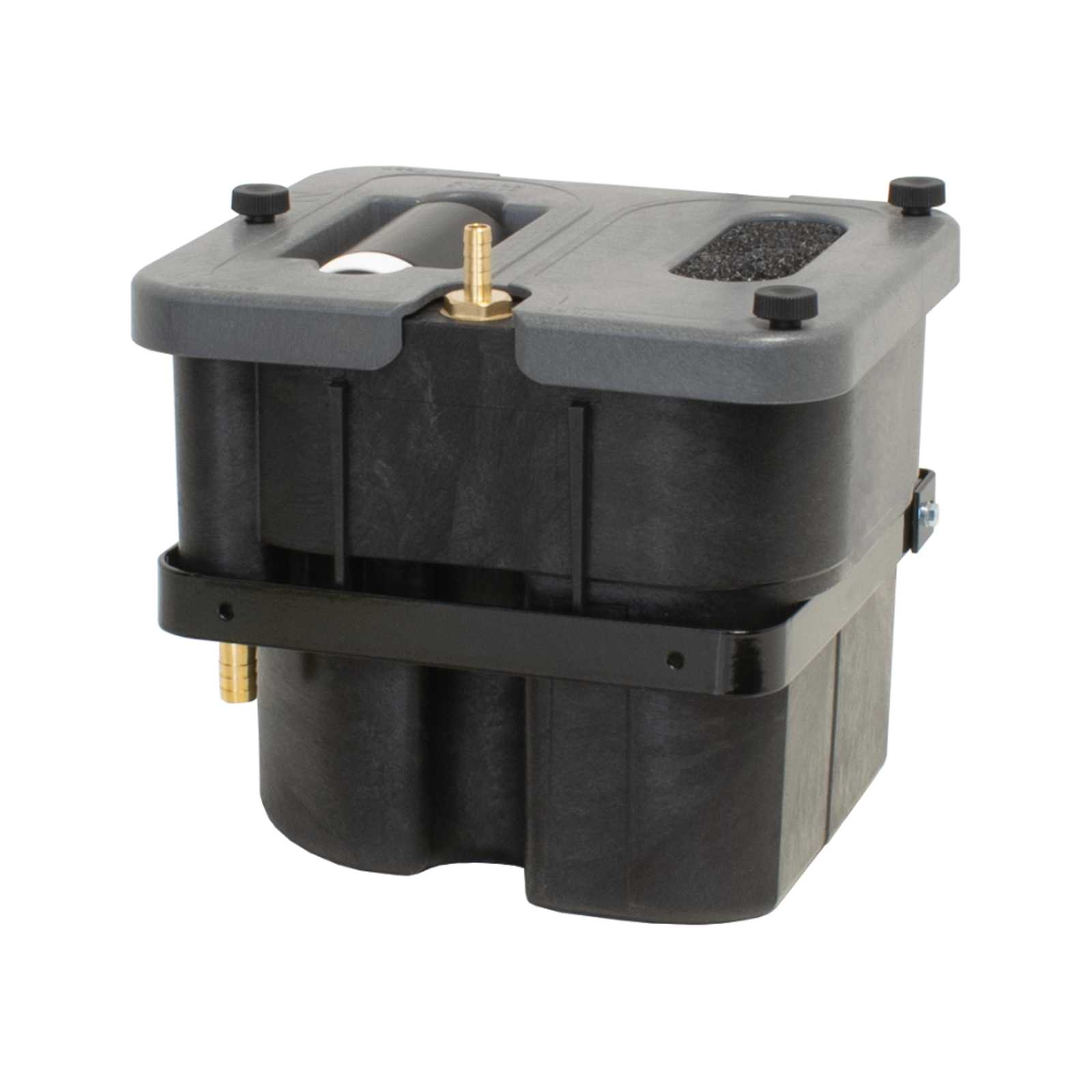

JORC SEP 2i back
JORC SEP 2i new image
SEPREMIUM 2i oil water separator main image
JORC SEP 2i back
Back to the product list

SEPREMIUM 2i

Serviceable Oil water separator

Designed for ultra-compact applications, the SEPREMIUM 2i is perfect for small repair shops, light-duty manufacturing zones, and standalone compressor stations. With a compressed air flow capacity of up to 2 m³/min, it offers efficient multi-stage filtration and advanced JORC green element filtration technology. The serviceable design features easily accessible filter elements, making routine maintenance quick and tool-free. This model is an ideal, cost-effective solution for handling low-volume condensate while ensuring environmental compliance and effortless servicing.

Commercial benefits:

  • Ideal choice for compressor capacities up to 2 m³/min.
  • Application of high-quality filtration material
  • Effective separation of mineral oil, synthetic oil and stable condensate emulsions
  • Brass hose connectors ensure swift and secure installation
  • Housing and lids made out of up to 100% recycled plastic
  • Exceptional value for money



Technical advantages:

  • Maximum compressor capacity 2 m³/min. (70 CFM)
  • Test valve & sample bottle for output testing & measuring the ppm value (indication)
  • Operates with all JORC type drains (both timer-controlled and zero air loss)
  • Customer specific finishing options available
  • Lighter and easier replacement of elements

  • Max. Compressor Capacity

2 m³/min. (70 CFM)

  • Max. Oil Absorption Volume

2 liters

  • Filter Elements

1

  • Activated Carbon Elements

1

  • Inlet connection

G ½" (10 mm hose adapter)

  • Outlet connection

G ½" (14 mm hose adapter)

  • Test Valve & Sample Bottle

Yes

  • Residual Oil Content

<5 ppm

  • Housing Material

PPC

  • Housing Color

Black

  • Lid Color

Grey

  • Test Kit Included

Yes

  • Inlet/Outlet Hose Adapters

Included

  • DIBt Certification

Yes

  • Suitable for Mineral/Synthetic Oils

Yes

  • Suitable for Stable Emulsions/Polyglycol

On request

  • Space Requirement

240x270x249


CONDENSATE TESTKIT

JORC offers an in-house laboratory test kit to analyse and determine the succes rate of our oil water separators prior to sale and/or installation.
