LOCATOR

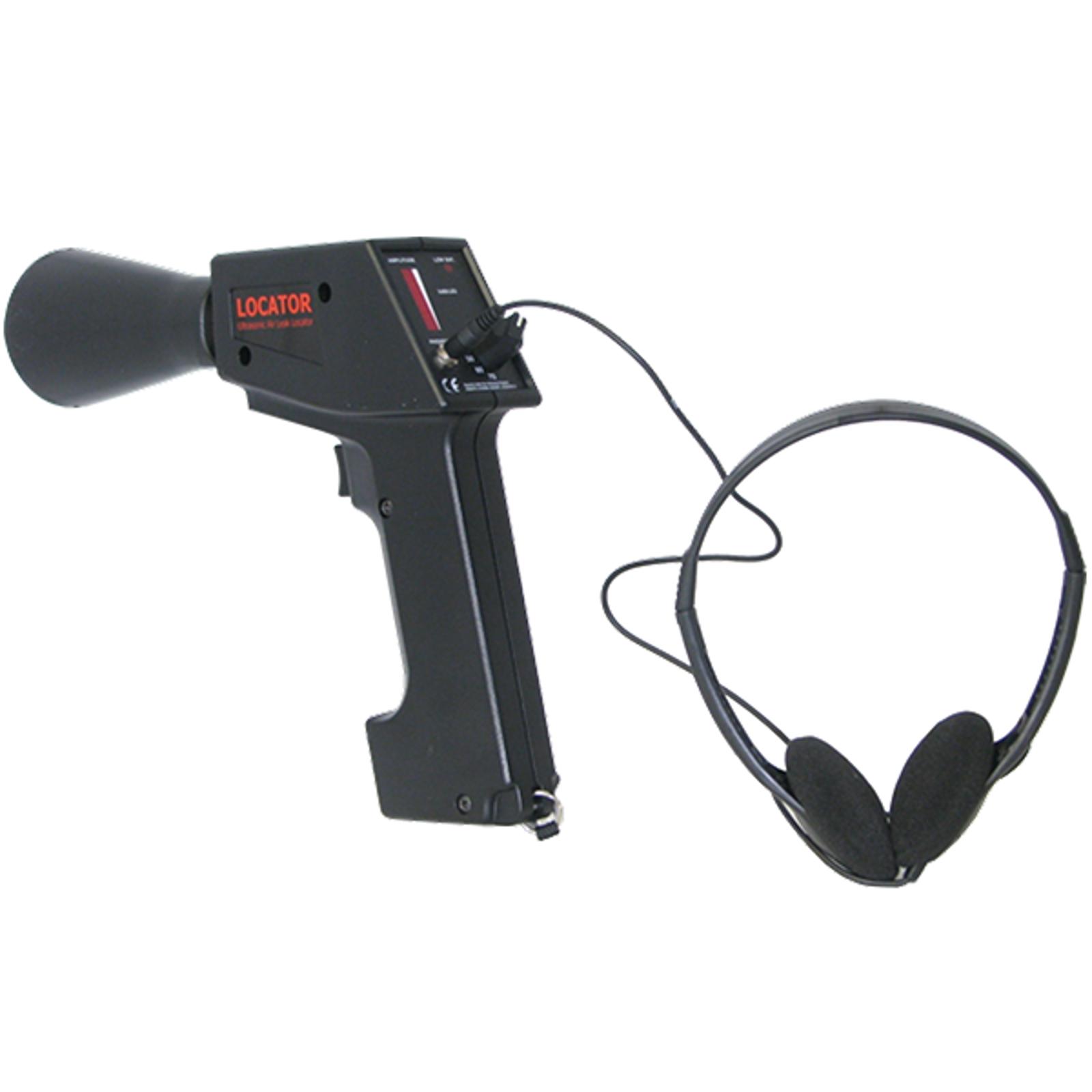

Ultrasonic air leak detector

Air leaks are a concern for anyone operating a compressed air system.
The average plant will have air leaks that waste up to 30% of the total air capacity.

Leaks will cause compressors to run at full load for longer periods of time. The compressors will not only use more energy, but may also need additional maintenance due to the increased loads.

Leaks can give the false impression that additional compressors are required to meet the demand for compressed air.

The AIR-SAVER offers air loss prevention - the LOCATOR offers air loss detection!

Locates air leaks during working hours, no need to shut down production to carry out the leak audit.

locator png

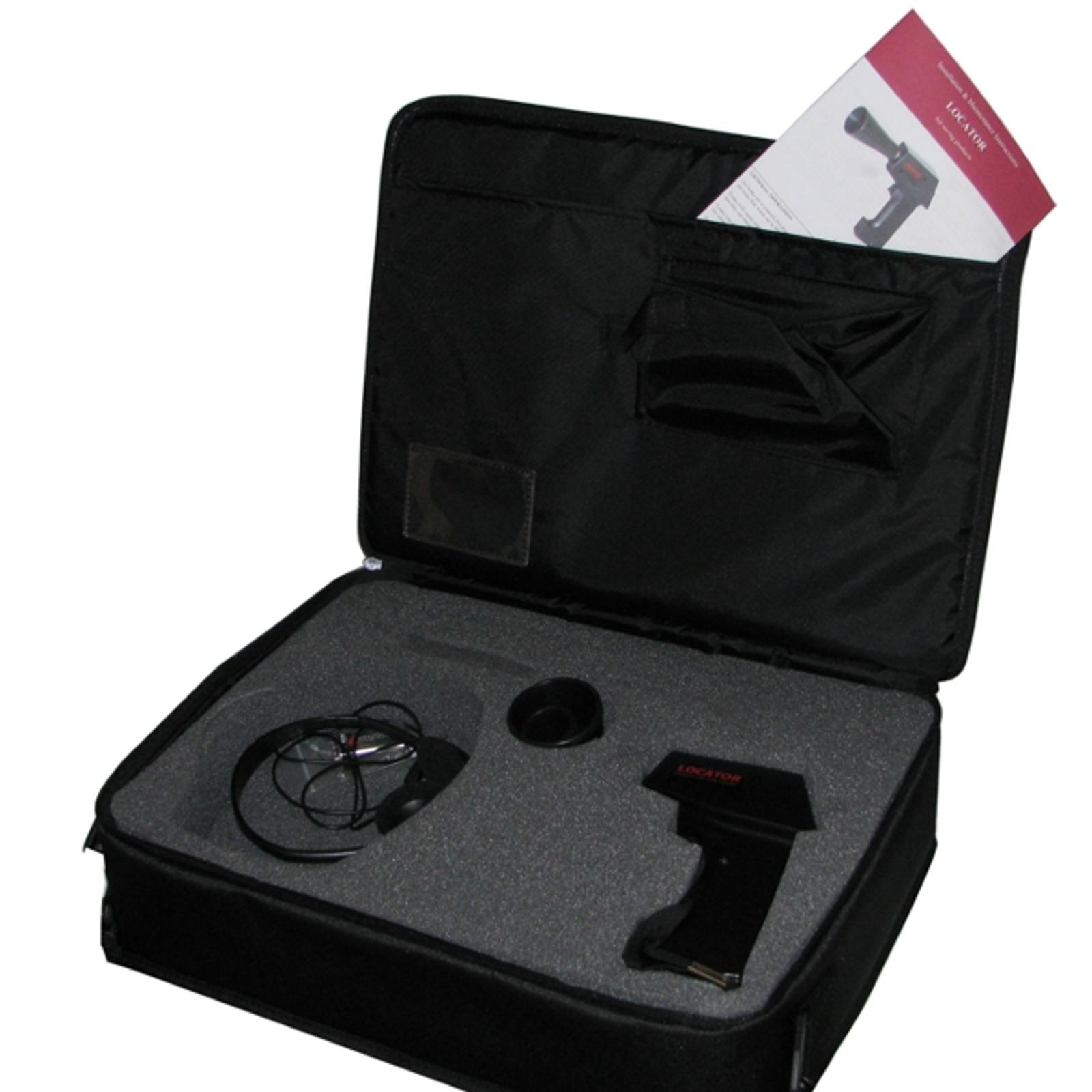

Supplied in a case, ensuring all components are securely together.

7900 case

Leaks will be detected from a distance (up to 10 meters), no need for ladders etc.

  • Ultrasonic leak detection to save money
  • SMT/solid state hybrid heterodyne receiver
  • Fully automatic - no maintenance
  • Highly effective in locating leaks and incredibly simple to apply
  • Very little time is required to locate leaks throughout a factory

  • CONSTRUCTION

Hand held ABS housing

  • CIRCUITRY

SMT/Solid state hybrid heterodyne receiver, ultrasonic processor

  • FREQUENCY RESPONSE

20 - 100 kHz.

  • INDICATOR

10 Segment leak indication LED bar

  • POWER

9 volt alkaline battery (included)

  • HEADSET

Yes

  • RESPONSE TIME

300 mille seconds

  • AMBIENT OPERATING TEMP.

1 - 50 °C

  • RELATIVE HUMIDITY

10 - 95%

  • WEIGHT

0.3 Kgs
