KAPTIV-CS

Electronic zero air loss drain

The KAPTIV-CS (Compact Solution) removes all types of condensate from compressed air systems up to 100 m³/min. without the loss of compressed air.

The KAPTIV-CS is cost effective and offers a rapid pay-back period due to a competitive pricing level, low stocking cost, zero air loss and energy saving features.

The compact robust industrial housing, 2/2 way direct acting valve with a large orifice, alarm N/C or N/O and the integrated mesh strainer make the KAPTIV-CS a highly reliable draining solution. The KAPTIV-CS can be applied in oil lubricated as well as oil-free applications.

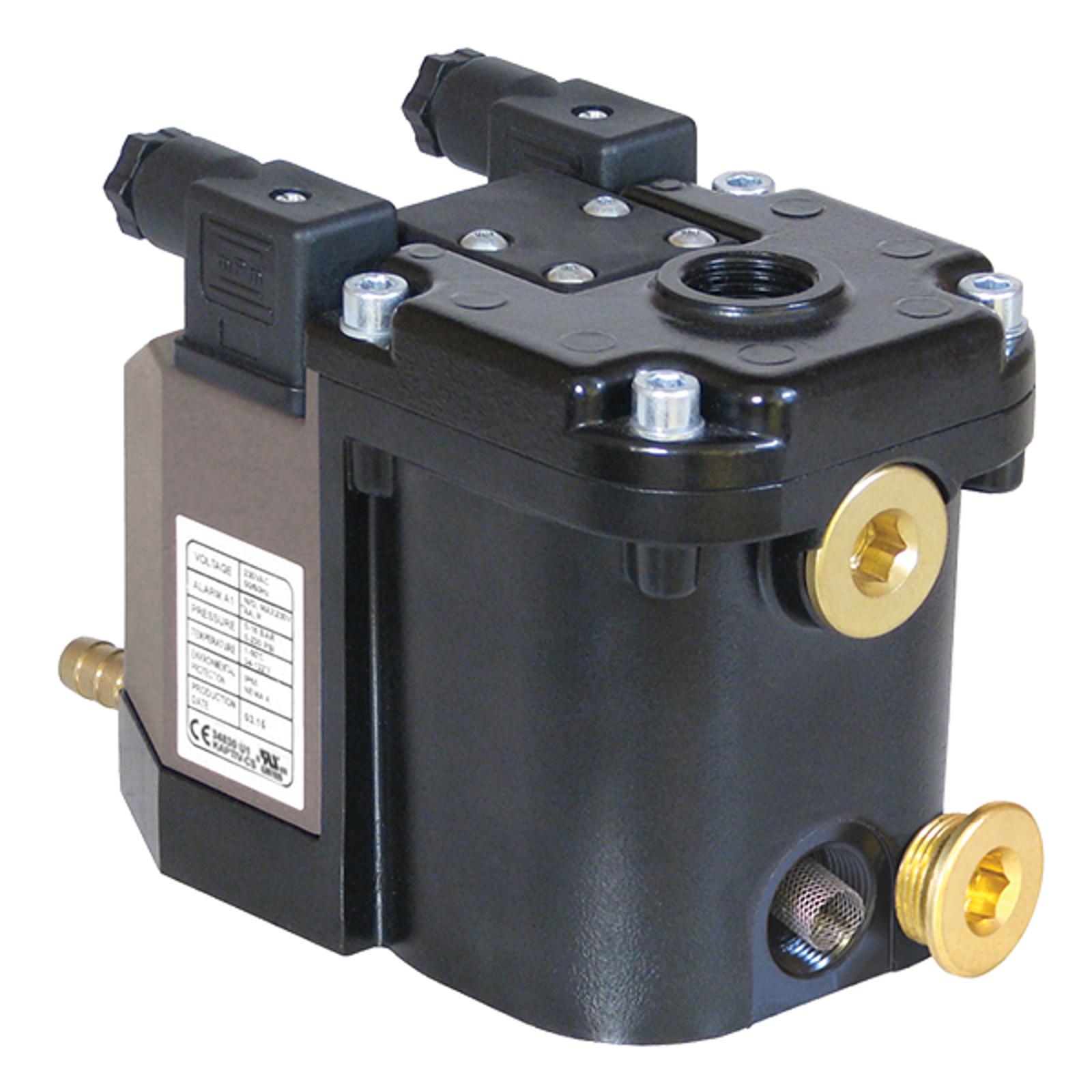

Robust aluminium housing with three inlet options, offering you installation flexibility.

inlets-ul
Digital, LED illuminated sight-port/level indicator digitally showing you the condensate level inside the reservoir and enabling you to monitor the KAPTIV-CS's operation, even in poor lit places.

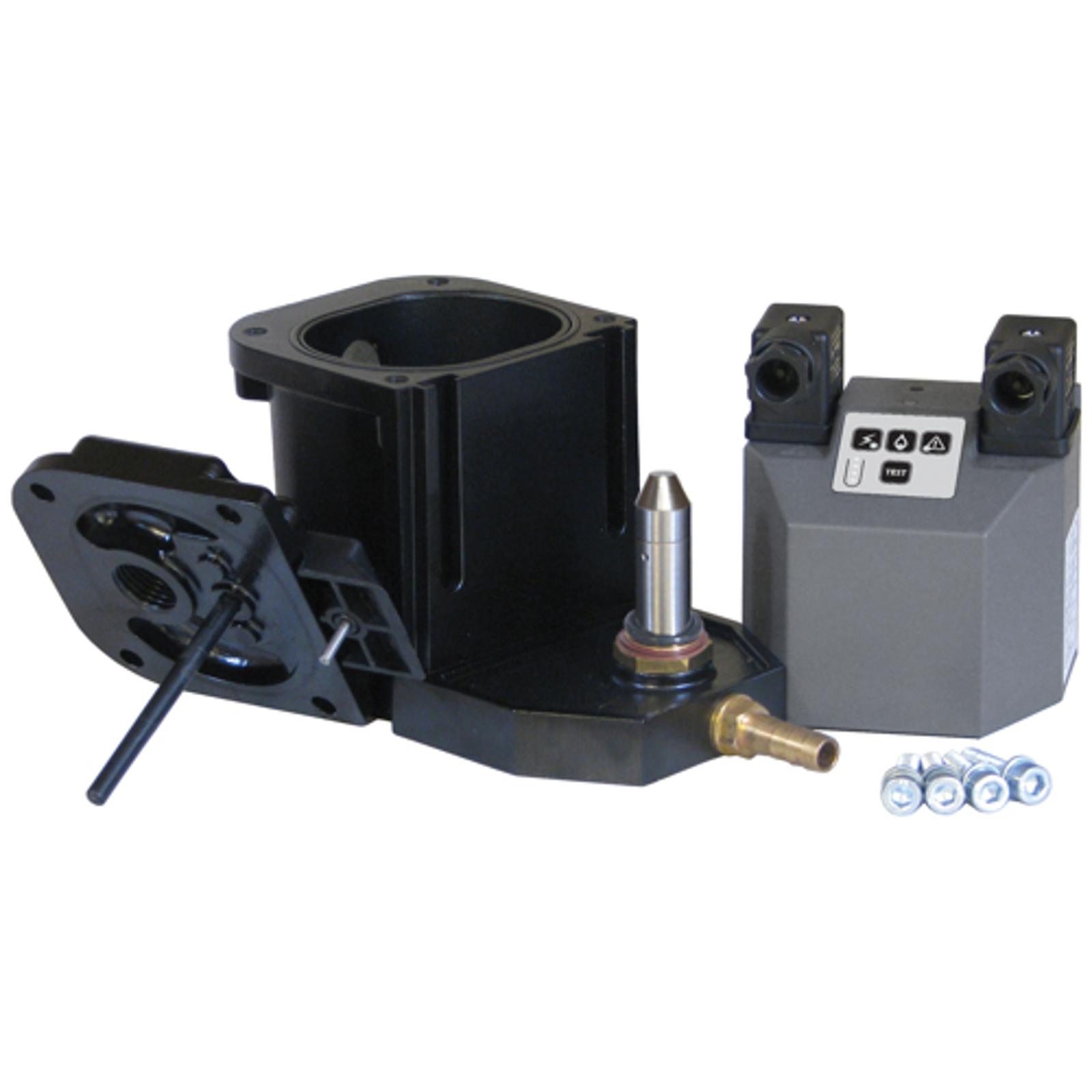

Extremely easy to disassemble, offering dissasembly simplicity and time saving during routine maintenance.
assemble
  • Capacitive level sensing technology saves air, energy and money.
  • Competitive compact level sensed draining solution.
  • Rapid pay-back period due to competitive pricing level and reduced stocking costs.
  • The KAPTIV-CS can be connected to any alarm device.
  • Alarm function (N/O or N/C) standard incorporated.
  • Successful draining of all types of condensate due to large orifice.
  • Easy installation and visual display of operating status.
  • Direct acting valve assembly, ensuring reliable discharge operation.

  • MAX. COMPRESSOR CAPACITY

100 m³/min. (3500 CFM)

  • MAX. DRAINAGE CAPACITY A3/A4 VERSION

665 liters condensate per hour at 16 bar

  • MIN./MAX. SYSTEM PRESSURE

0 - 16 bar (0 - 230 psi)

  • MIN./MAX. MEDIUM TEMPERATURE

1 - 60 °C (34 - 140 °F)

  • MIN./MAX. AMBIENT TEMPERATURE

1 - 60 °C (34 - 140 °F)

  • SUPPLY VOLTAGE OPTIONS

230VAC / 115VAC / 24VAC / 24VDC

  • ENCLOSURE PROTECTION RATING

IP65 (NEMA4)

  • CONNECTOR TYPE (POWER AND ALARM)

DIN 43650-B

  • INLET CONNECTIONS

1/2″ BSP or NPT, 3 inlet options

  • INLET HEIGHT

11 cm (top) and 7.5 & 1.5 cm (side)

  • OUTLET CONNECTION

1/4″ BSP, with brass hose barb adapter

  • VALVE TYPE

2/2 way, direct acting

  • VALVE ORIFICE

4 mm

  • VALVE SEALS

FPM

  • SERVICEABLE VALVE

Yes

  • INTEGRATED MESH STRAINER

Yes

  • HOUSING MATERIAL

Corrosion resistant aluminium, EP coating

  • TEST FEATURE

Yes

  • VISUAL ALARM

Yes, LED indication

  • ALARM FEATURE A3 (N/O)

Normally Open alarm output contact -potential free relay
(Normally open contacts, closed when in alarm mode. LED on the drain is OFF in normal operation and ON when in alarm mode)

  • ALARM FEATURE A4 (N/C)

Normally Closed alarm output contact -potential free relay
(Normally closed contacts, open when in alarm mode. LED on the drain is OFF in normal operation and ON when in alarm mode)
