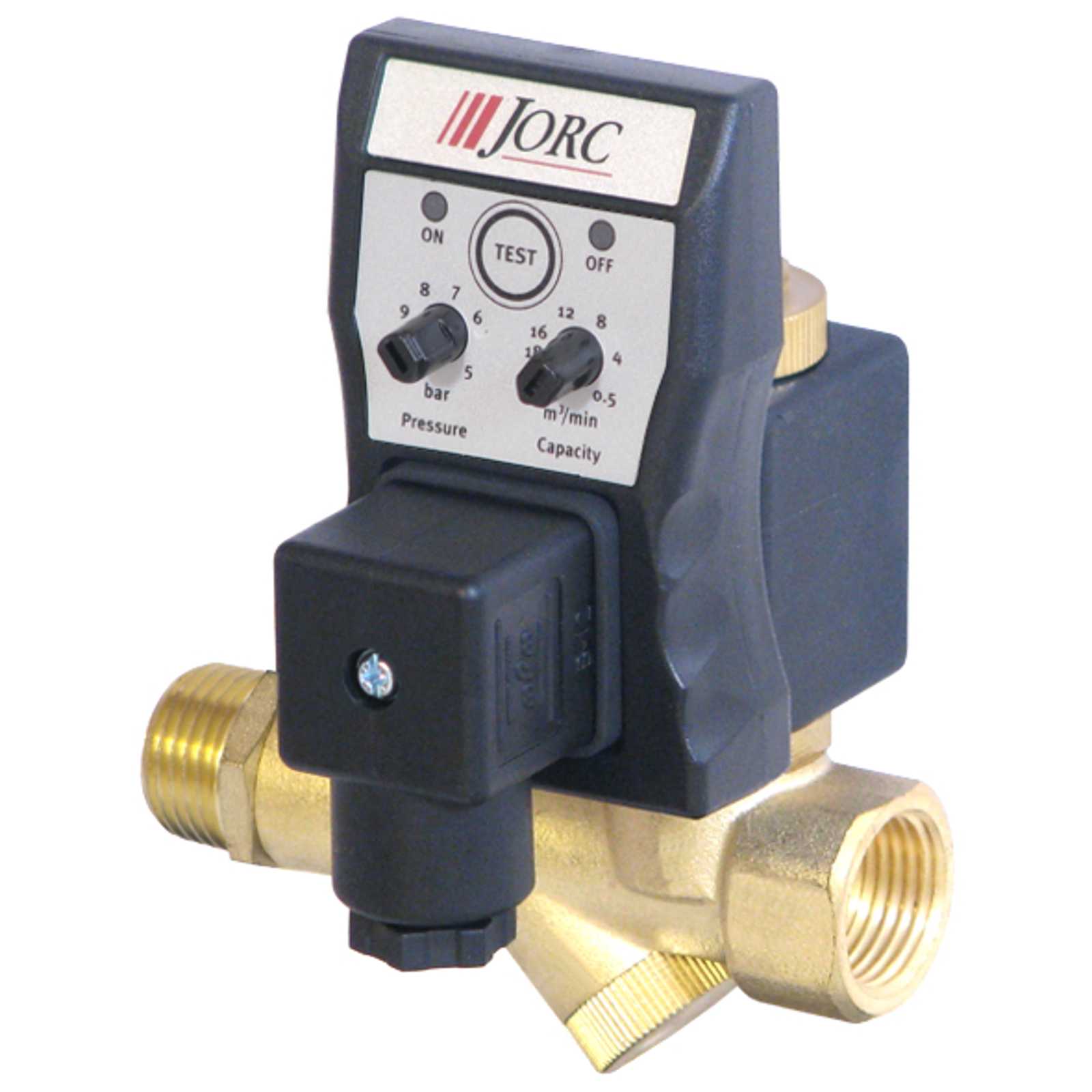

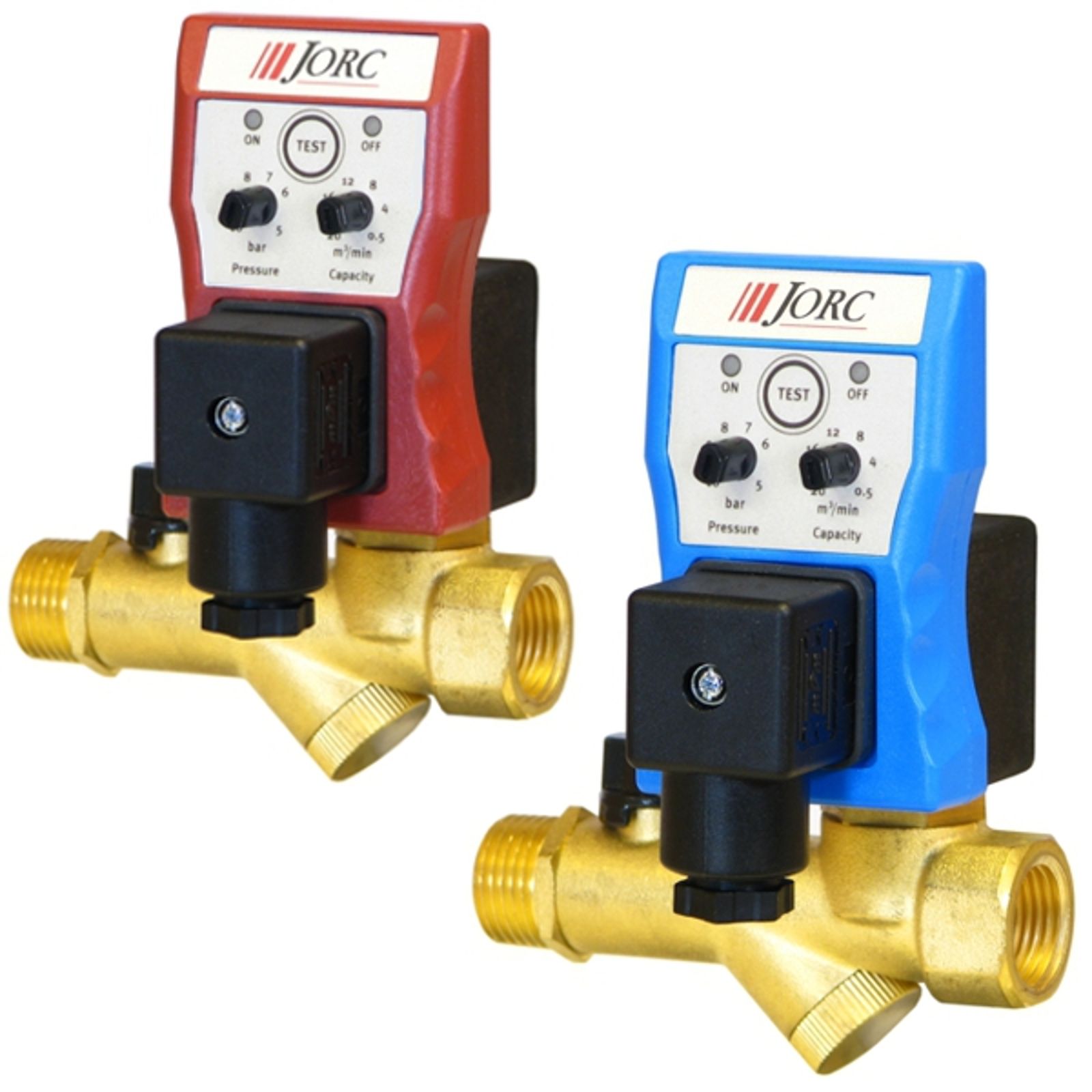

FLUIDRAIN-COMBO-QUICKSET

• MAXIMUM COMPRESSOR CAPACITY

20 m³/min.

• PRESSURE RANGE

0 - 10 bar (higher pressure available, see FLUIDRAIN)

• SUPPLY VOLTAGE OPTIONS

24 - 240 VAC/DC 50/60Hz. (please indicate)

• MEDIUM TEMPERATURE

1 - 55 °C

• AMBIENT TEMPERATURE

1 - 55 °C

• TIMER CYCLE RANGE (ON / OFF)

Simply select the compressor capacity and pressure!

• TIMER PCB

SMD technology, ensuring consistency in production

• TIMER CYCLE INDICATION

Bright LED illumination

• TEST FEATURE

Yes

• VALVE TYPE

2/2 way, direct acting

• VALVE ORIFICE

4 mm

• VALVE SEALS

FPM

• INLET/OUTLET CONNECTIONS

1/4" & 1/2" (BSP or NPT) / 1/2" (BSP or NPT)

• INLET CONNECTION HEIGHT

1 cm

• SERVICEABLE VALVE

Yes

• VALVE HOUSING MATERIAL

Brass (Stainless steel available, see FLUIDRAIN)

• POWER CONNECTION

DIN 43650-A
