The DRAIN HEATER applied on the MAGY.
Anti-freezing device
In very cold temperatures, condensate may run the risk of freezing when it does not continuously flow through the system. The DRAIN HEATER guarantees a continuous condensate flow in all systems where you have trouble keeping the condensate flowing due to extreme cold weathers.The DRAIN HEATER can be installed on the KAPTIV-CS, MAGY and NUFORS-CR models.
Please note: if the pipework leading up to and leading from the drain is insulated, then the drain will typically not require any anti-freezing device. JORC drains are produced from materials that will operate in extreme cold weather conditions. Often the desire to apply anti-freezing devices on drains is derived from situations wherein competitive product experiences have formed a mind-set.
The heater is applied in the SMART GUARD.
The DRAIN HEATER applied on the NUFORS-CR.

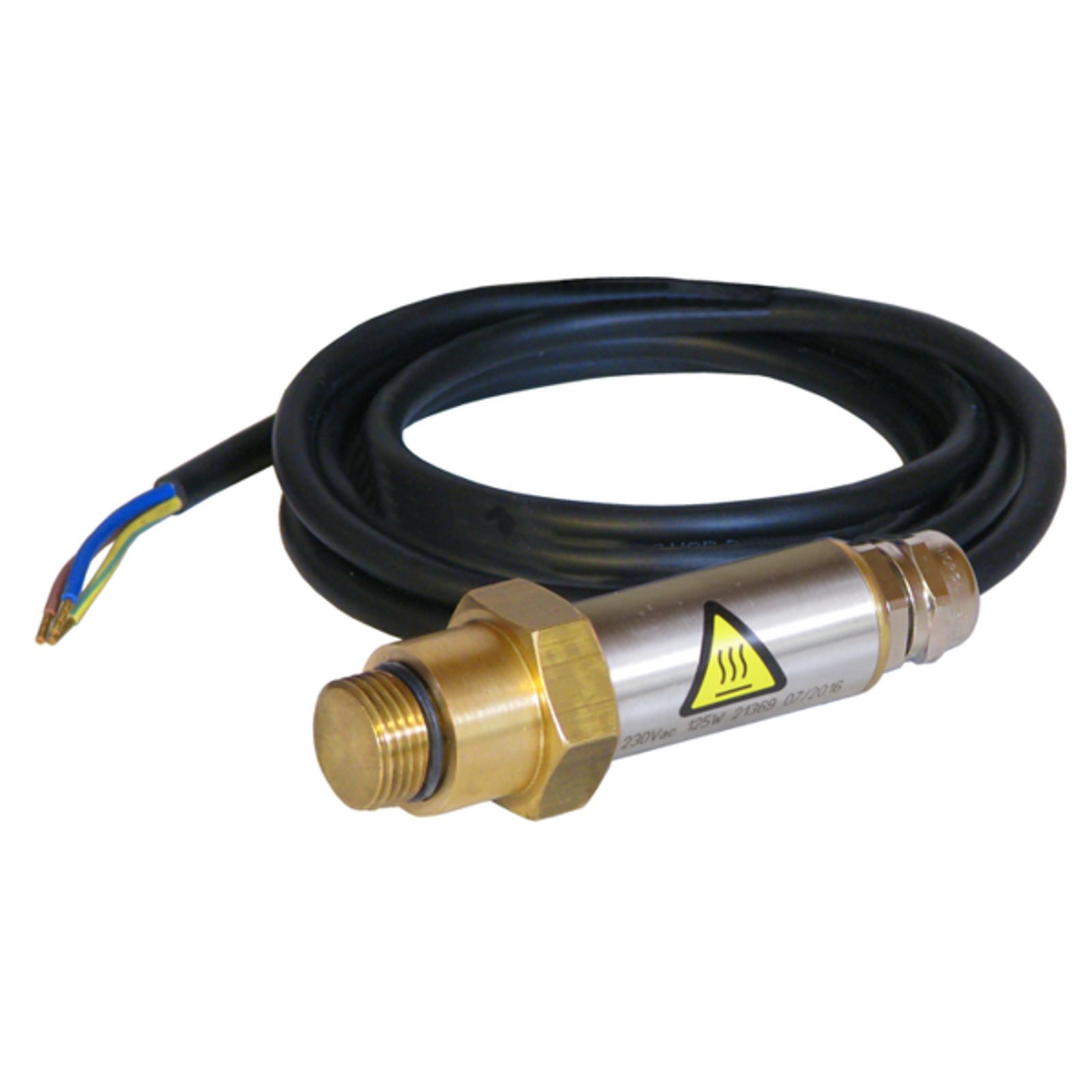

The DRAIN HEATER prevents freezing up of the level sensed drains in extreme cold conditions.
| 230VAC or 115VAC |
| 0.5A |
| 1.1A |
| 30 Bar |
| 1/2" BSP or NPT |
| 32mm |
| 3.5 meters |
| Brass and Stainless steel |
| IP65 (NEMA4) |
| <+5 °C ON / >+15 °C OFF |
| <+40 °C ON / >+65 °C OFF |
| -25 °C / +5 °C |
| 1 (earth) |
