TEC-11

Timer drain for filters and dental compressors

The TEC-11 timer controlled condensate drain is a combination of a solenoid valve and an electronic timer designed to automatically remove condensate from compressed air filters and small dental (oil free type) compressors.

The clever in-line design allows for perfect installation under all types of compressed air filters and dental compressors, regardless of their capacity or size.

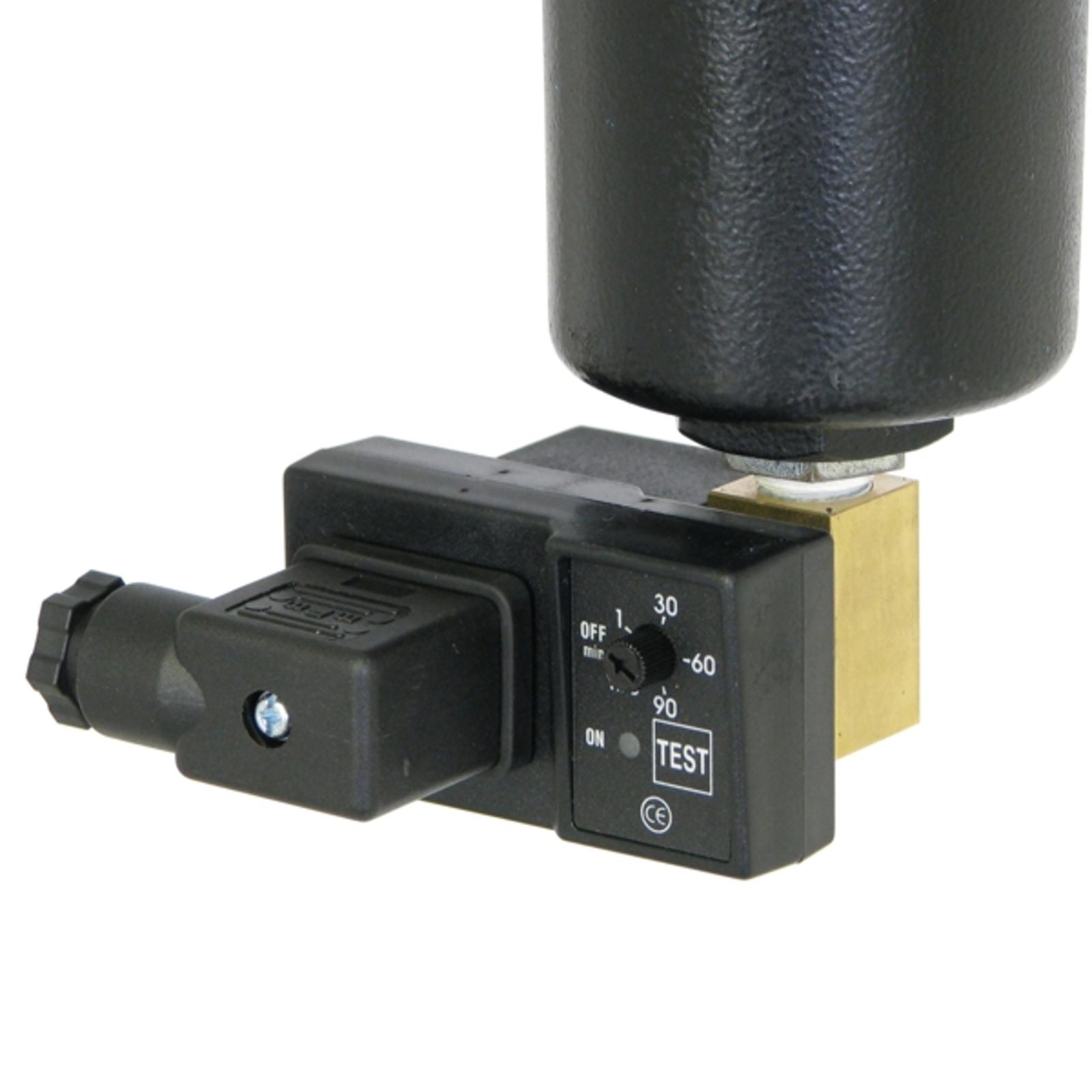

In-line design, offering easy mounting under filters.

tec 11 in-line

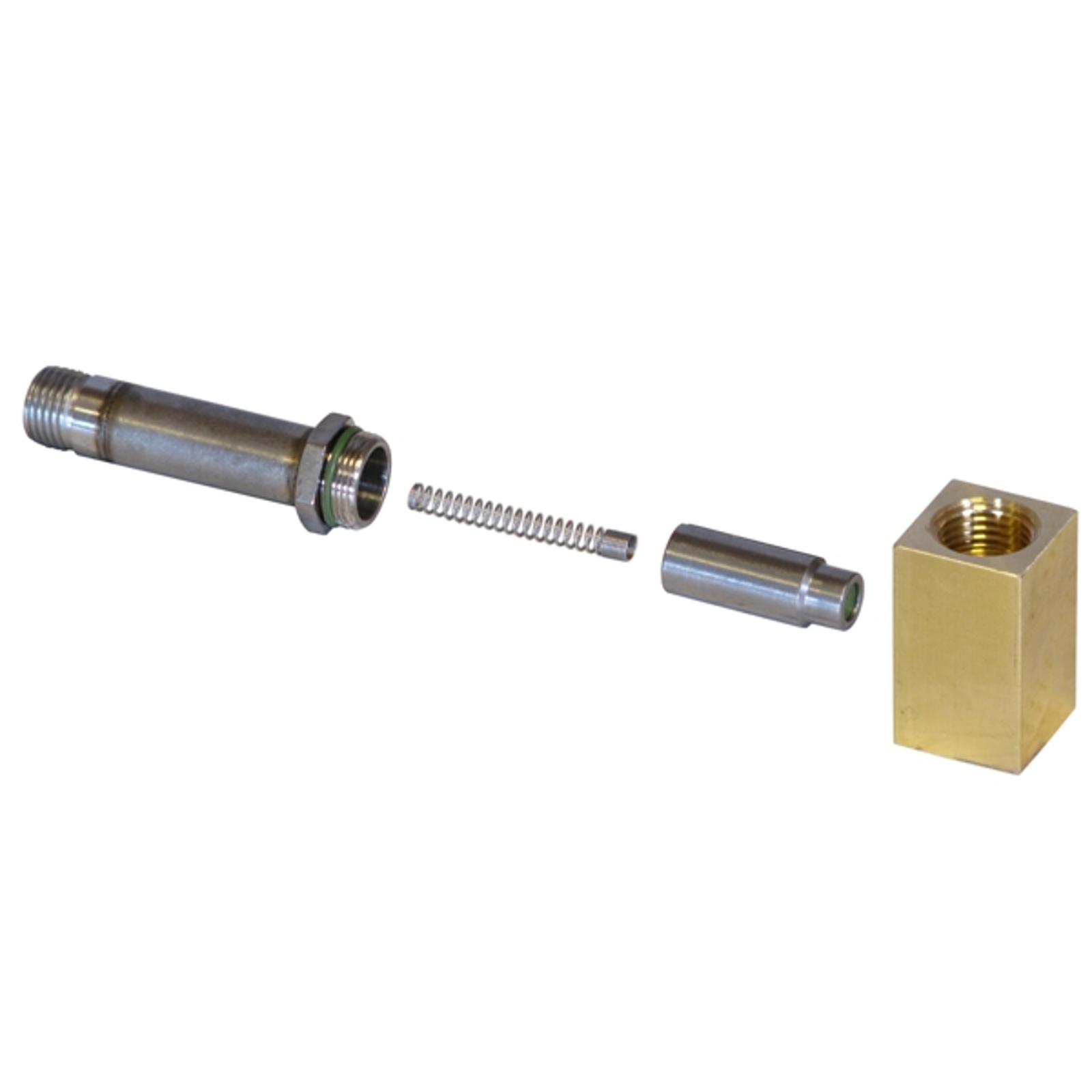

Serviceable valve construction, offering you routine maintenance revenues.

tec 11 valve

Small and compact, offering easy installation on small dental compressors.

tec 11 png
  • Does not air-lock during operation.
  • Suitable for Compressed air filters up to 230 PSI.
  • Clever in-line design.
  • TEST (micro-switch) feature.
  • Fixed ON cycle and an adjustable OFF cycle.
  • Medium pressure up to 230 PSI (optionally up to 305 PSI).
  • Connection sizes 1/8” & 1/4"" NPT).
  • Incredibly compact design.

  • MAXIMUM COMPRESSOR CAPACITY

Any size

  • PRESSURE RANGE

0 - 16 bar (higher pressure available, see Fluidrain-HP-S)

  • SUPPLY VOLTAGE OPTIONS

12 - 380 VAC/DC 50/60Hz. (please indicate)

  • MEDIUM TEMPERATURE

1 - 55 °C

  • AMBIENT TEMPERATURE

1 - 55 °C

  • TIMER CYCLE RANGE (ON / OFF)

2seconds, fixed / 1.2 - 120 minutes, adjustable
0.3 seconds fixed (ON) optionally available.

  • TIMER PCB

SMD technology, ensuring consistency in production

  • TIMER CYCLE INDICATION

Bright LED illumination

  • TEST FEATURE

Yes

  • VALVE TYPE

2/2 way, direct acting

  • VALVE ORIFICE

2 mm

  • VALVE SEALS

FPM

  • INLET/OUTLET CONNECTIONS

1/8″ or 1/4″ (BSP or NPT)

  • INLET CONNECTION HEIGHT

1 cm

  • SERVICEABLE VALVE

Yes

  • VALVE HOUSING MATERIAL

Brass

  • POWER CONNECTION

DIN 43650-B/ISO 6952

  • ENVIRONMENTAL PROTECTION

IP65 (NEMA4)
