Bright digital illuminated cycle display, offering you a visual display of current operating cycle.

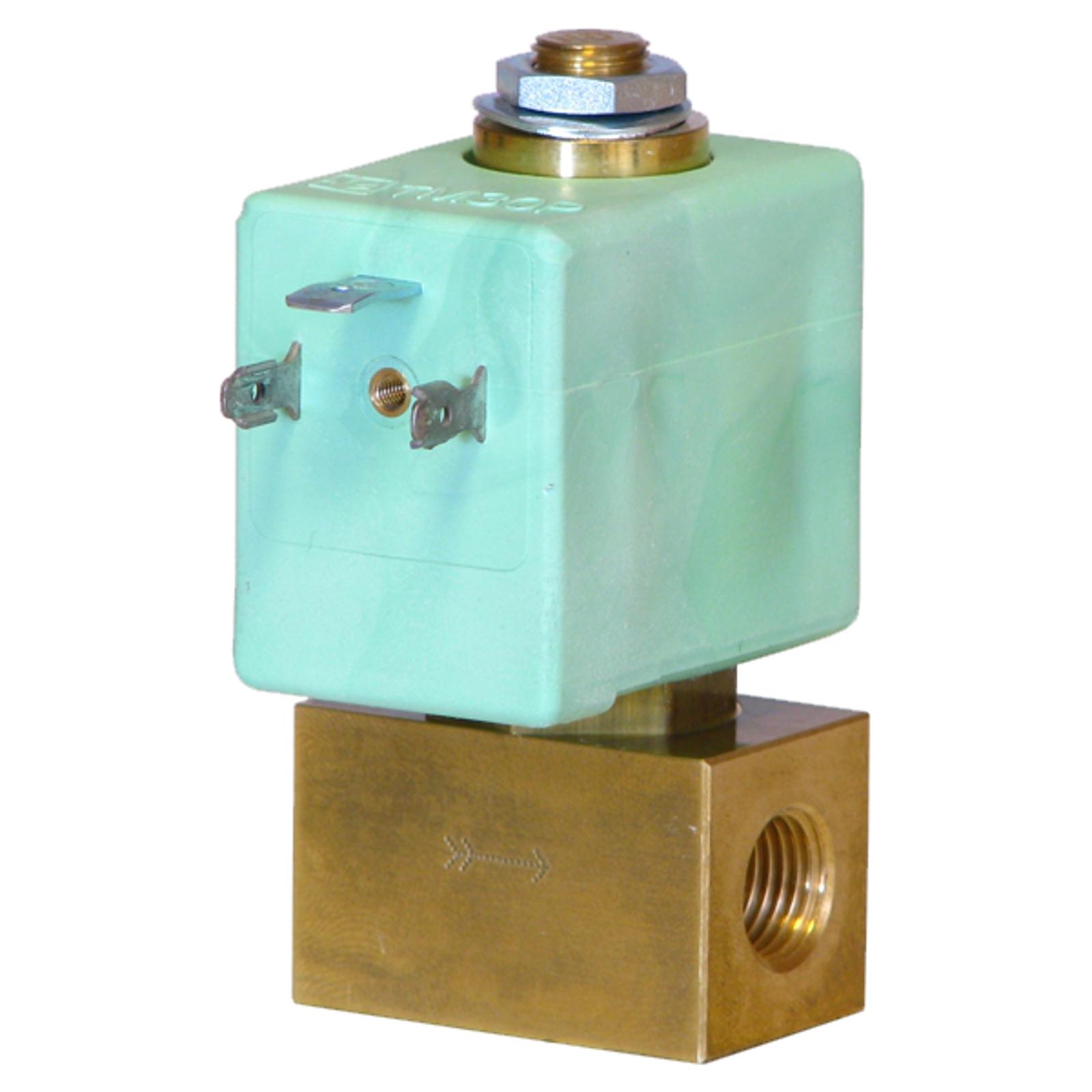

Fail safe - (normally open) drain
The D-LUX-N/O has a normally open valve construction, combined with our extreme low wattage coil (approximately 1 Watt).We can offer you a "fail safe" timer drain that will automatically open in situations of power failure or power shutdown.
The standard version is rated up to 16 bar and is available in various voltages. The D-LUX-N/O is ideal for compressors, dryers, filters and all other components of a compressed air system that require a fail safe solution
The fail safe and low energy drain solution is available with a two weeks lead time.
The D-LUX timer offers you solutions for a wide range of applications due to its flexible programmability.
Digital processor, offering you exceptionally accurate cycle timing.
Equipped with a low energy drain solution
- Power consumption reduced by up to 95%.
- Extreme low wattage coil (approximately 1 watt).
- Suitable for any type of compressed air systems and up to any size.
- TEST (micro-switch) feature.
- Accurate time cycles.
- Voltage range 12 - 230VAC/DC.
| Any size |
| 0 - 16 bar |
| 12 - 230 VAC/DC 50/60Hz. (please indicate) |
| 1 - 55 °C |
| 1 - 55 °C |
| 0,1 second to 99 hours (both ON and OFF) |
| SMD technology, ensuring consistency in production |
| Bright LED illumination, clear LED display |
| Yes |
| 2/2 way, Normally Open |
| Approx. 1 Watt |
| 1.4 mm |
| FPM |
| 1/4" (BSP or NPT) |
| 1 cm |
| Yes |
| Brass |
| DIN 43650-A |
| IP65 (NEMA4) |
