Multiple housing colours, offering you brand matching with your house-style.
Electronic solenoid valve timer
The EZ-1 Timer is produced using SMT (Surface Mounting Technology), ensuring improved performance and consistency process.The application of the timer is to control the OPEN (pulse) and CLOSED (pause) cycles of solenoid valves.
Cycles range options are: milli-seconds, seconds, minutes and hours.
Adjustable cycle potentiometers offering ON and OFF cycle options, bright yellow LED's indicate in which cycle the timer is operating.

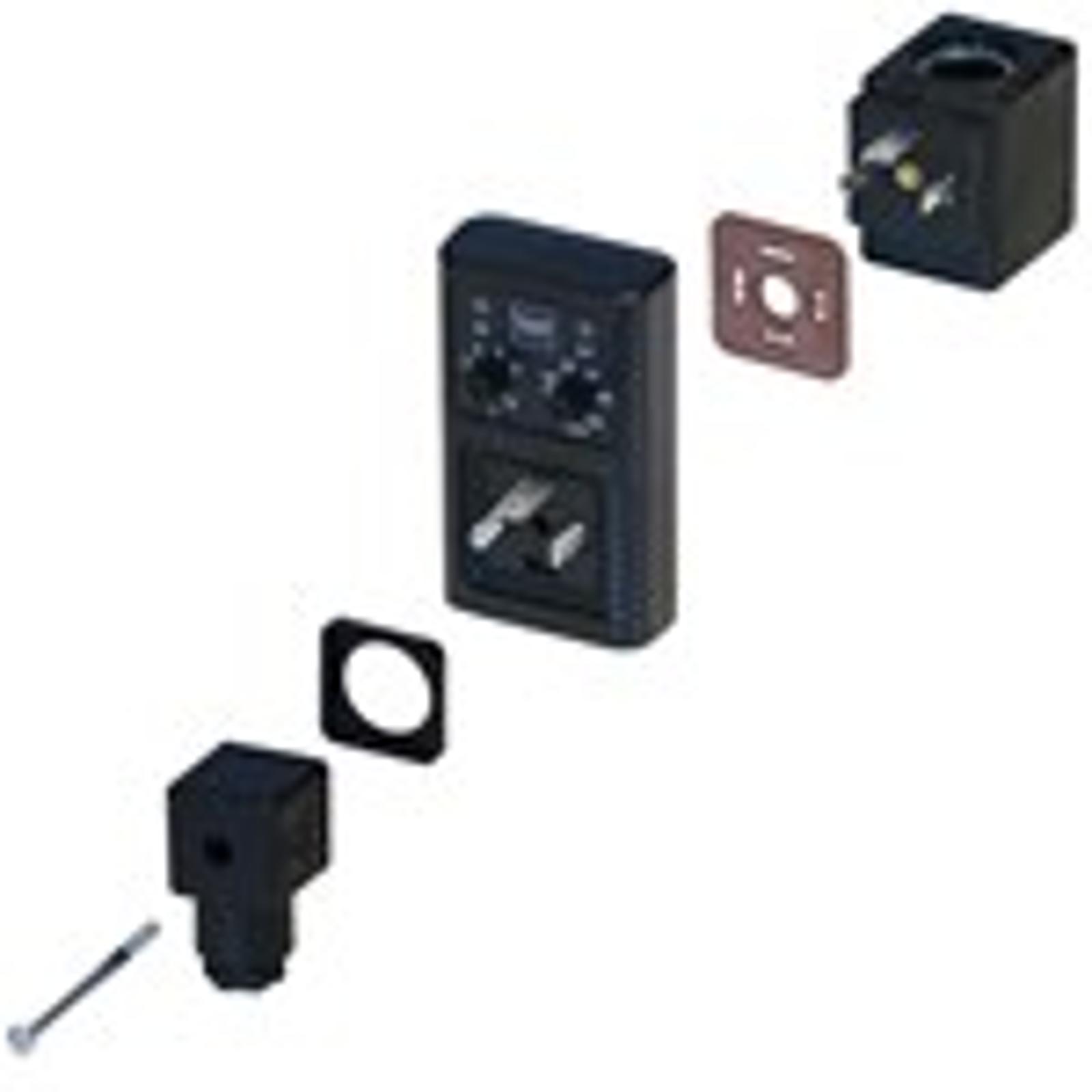

The EZ-1 Timer is designed to fit all solenoid valves with connection type DIN 43650 - A/ISO 4400
Voltage protection elements are included on all JORC timers, offering you a higher over-voltage protection.
DIN form A connection.
- Multi-voltage 24 - 230VAC/DC 50/60Hz.
- Compact design.
- Private labelling possible.
| 24 - 240VAC/DC 50/60Hz. |
| 1 - 55 °C |
| 0.5 - 10 seconds (ON) / 0.5 - 45 minutes (OFF) |
| SMD technology, ensuring consistency in production |
| Bright LED illumination |
| ABS plastic FR grade |
| Black (other colours are available) |
| Yes |
| DIN 43650-A, ISO 4400 |
| IP65 (NEMA4) |
