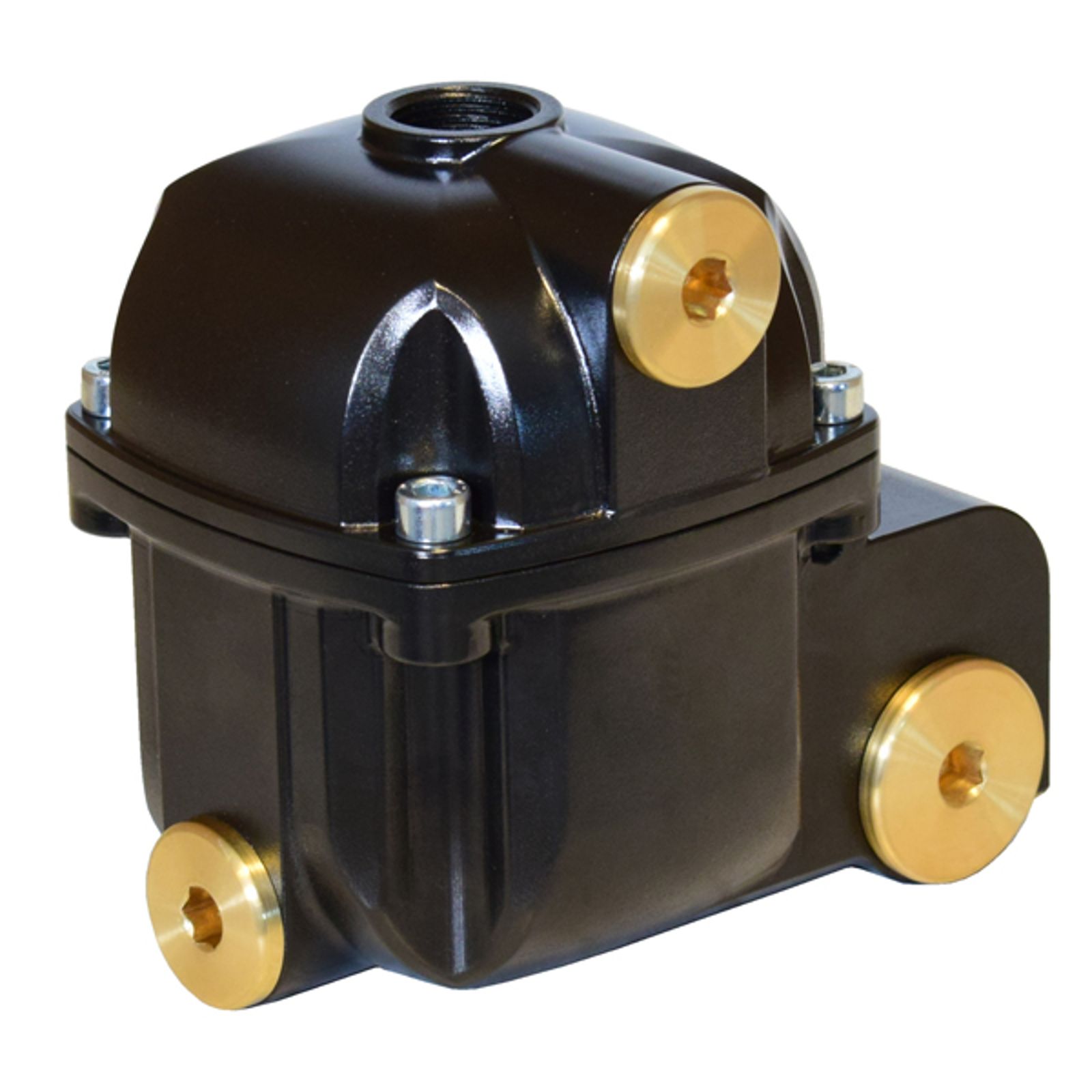

Three inlet options for easy installation.

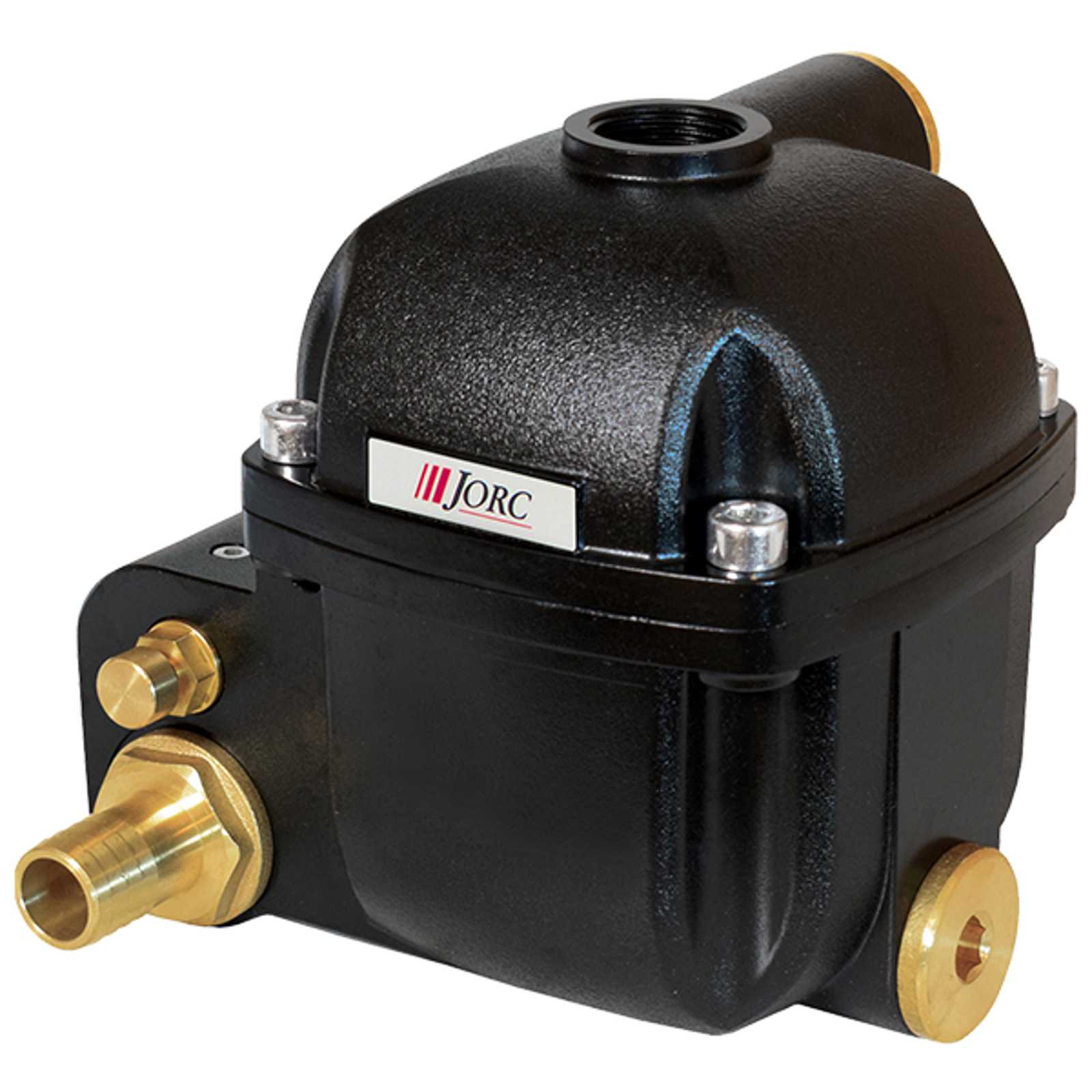

Pneumatically operated condensate drain
The NUFORS-XF removes all types of condensate from large capacity compressed air applications up to 500 m³/min, without using electricity and without the unnecessary loss of compressed air. The NUFORS-XF has an exceptional large condensate discharge capacity of 4.800 litres per hour at 16 bar.
The discharge process is automatic and is based on a 3/2 way level controlled valve principle that operates a piston type direct acting valve.
The NUFORS-XF is ideally suited in applications where power is not available, too expensive or not reliable. The NUFORS-XF features a specially treated robust aluminium housing suitable for oil lubricated and oil-free applications.
In addition, the NUFORS-XF can be applied in applications that demand a higher enclosure protection rating. The NUFORS-XF offers an IP68/NEMA6 rating.

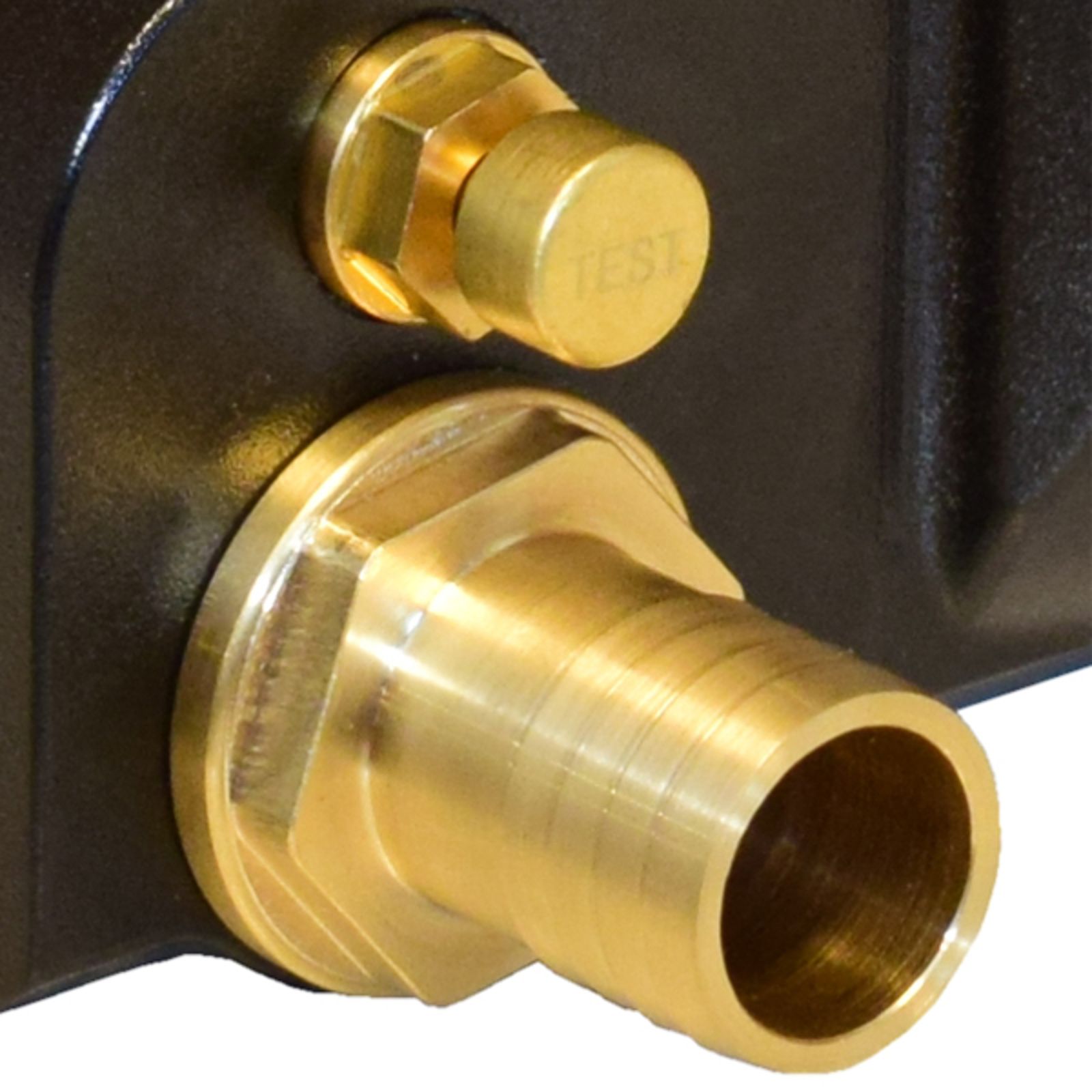

Test feature for routine testing.

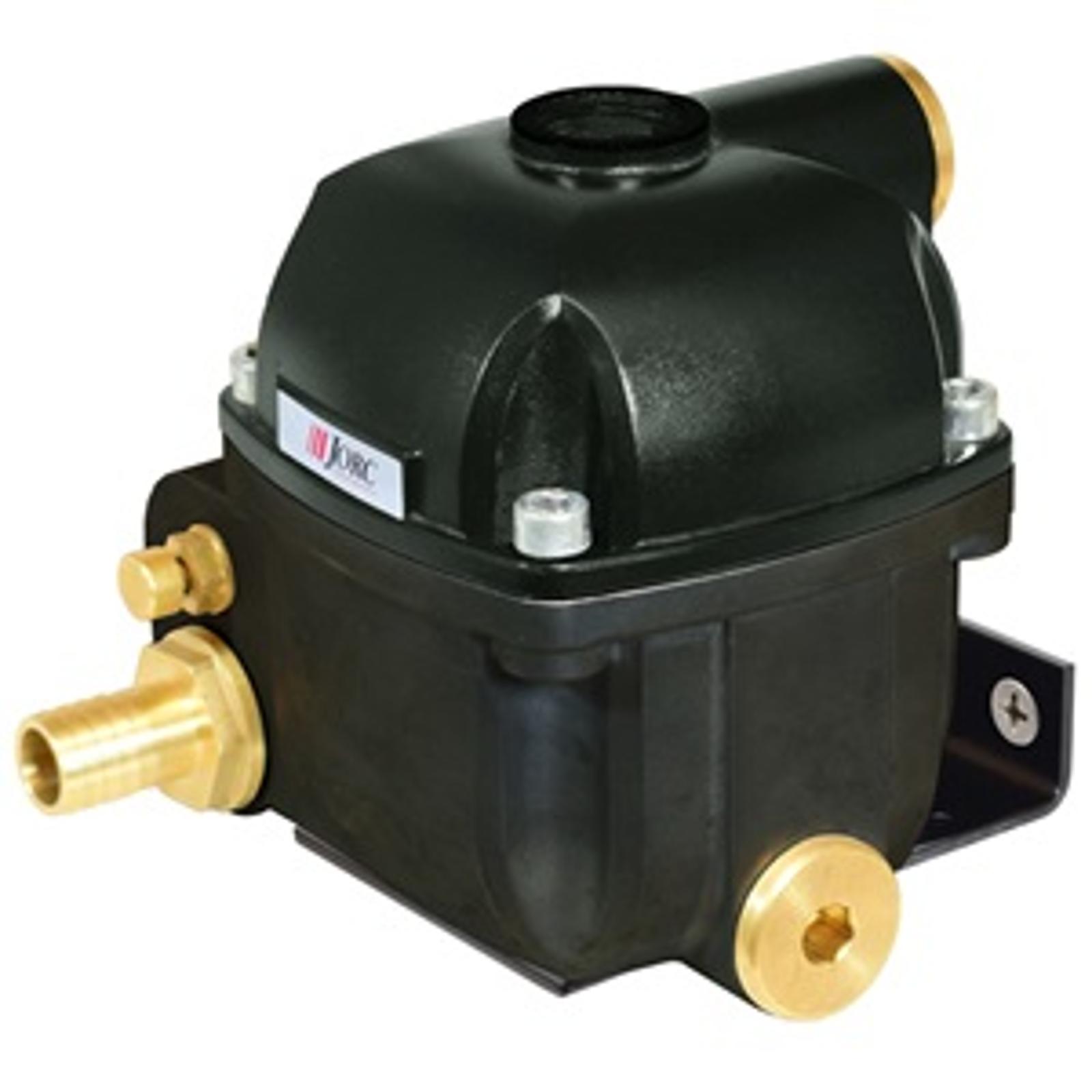

The NUFORS-XF on its optionally available mounting bracket.
- Suitable for large capacity compressed air applications up to 500 m³/min.
- No electricity required - install and go
- No operating costs
- Competitive ‘true green’ solution
- Reduced stocking costs - 1 model covers 500 m³/min.
- No complicated sizing charts required
- Consult JORC for private labeling options
- Level sensing drain technology
- Incredibly easy and quick to install and to service
- No complicated control air line and pressure regulator required
- Top- and side inlets available
- Test feature for routine testing
- Robust corrosion resistant aluminium housing
- Direct acting valve construction for a reliable condensate discharge operation
- Successful draining of, even heavily emulsified, condensate due to a large 12 mm valve orifice
| 500 m³/min. (17500 CFM) guideline only |
| 4800 litres condensate per hour at 16 bar |
| 3 - 16 bar (44 - 230 psi) |
| 1 - 60 °C (34 - 140 °F) |
| 1 - 60 °C (34 - 140 °F) |
| IP68 (NEMA6) |
| 3/4" BSP or NPT, 3 inlet options |
| 15.1 cm (top), 13.3 cm and 1.8 cm (side) |
| 3/4" BSP, with brass hose barb adapter |
| Direct acting |
| 12 mm |
| FPM |
| Yes |
| Corrosion resistant aluminium, EP coating |
| Yes |
