KAPTIV-MD-AL

Electronic condensate drain with alarm

The KAPTIV-MD-AL is an electronic zero air loss drain with an alarm feature (potential free relay), suitable for applications up to 10 m3/min. (compressor capacity). The alarm contact options are A1 (Normally Open contact) or A2 (Normally Closed contact).

This exceptionally versatile and compact drain is available as a stock item in multiple voltage options, offering a pressure range from 0 to 16 bar, and only weighs 0.5 kg.

With features such as a test button, LED indication, and automatic blockage detection, this energy-saving electronic drain is the optimum choice for reliable, condensate removal when space is limited (overall height only 74 mm).

To simplify the installation in restrictive height conditions, the side-inlet adapter is a useful tool.

The KAPTIV-MD-AL’s incredibly compact size is a real benefit in applications such as refrigerated dryers and filters. The KAPTIV-MD-AL can be applied in oil-lubricated as well as oil-free applications.

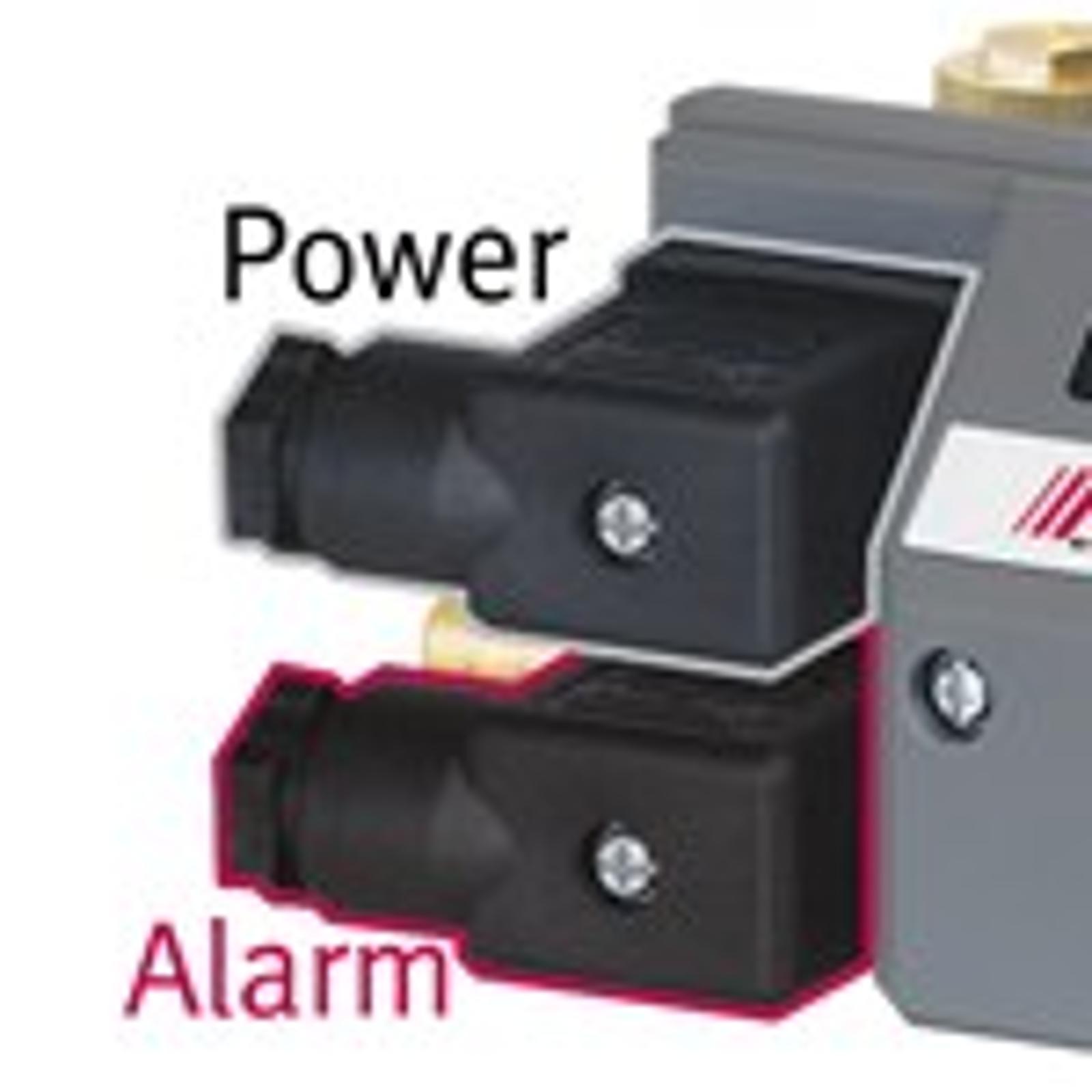

Alarm contact options N/O or N/C.

kaptiv md al available options 1

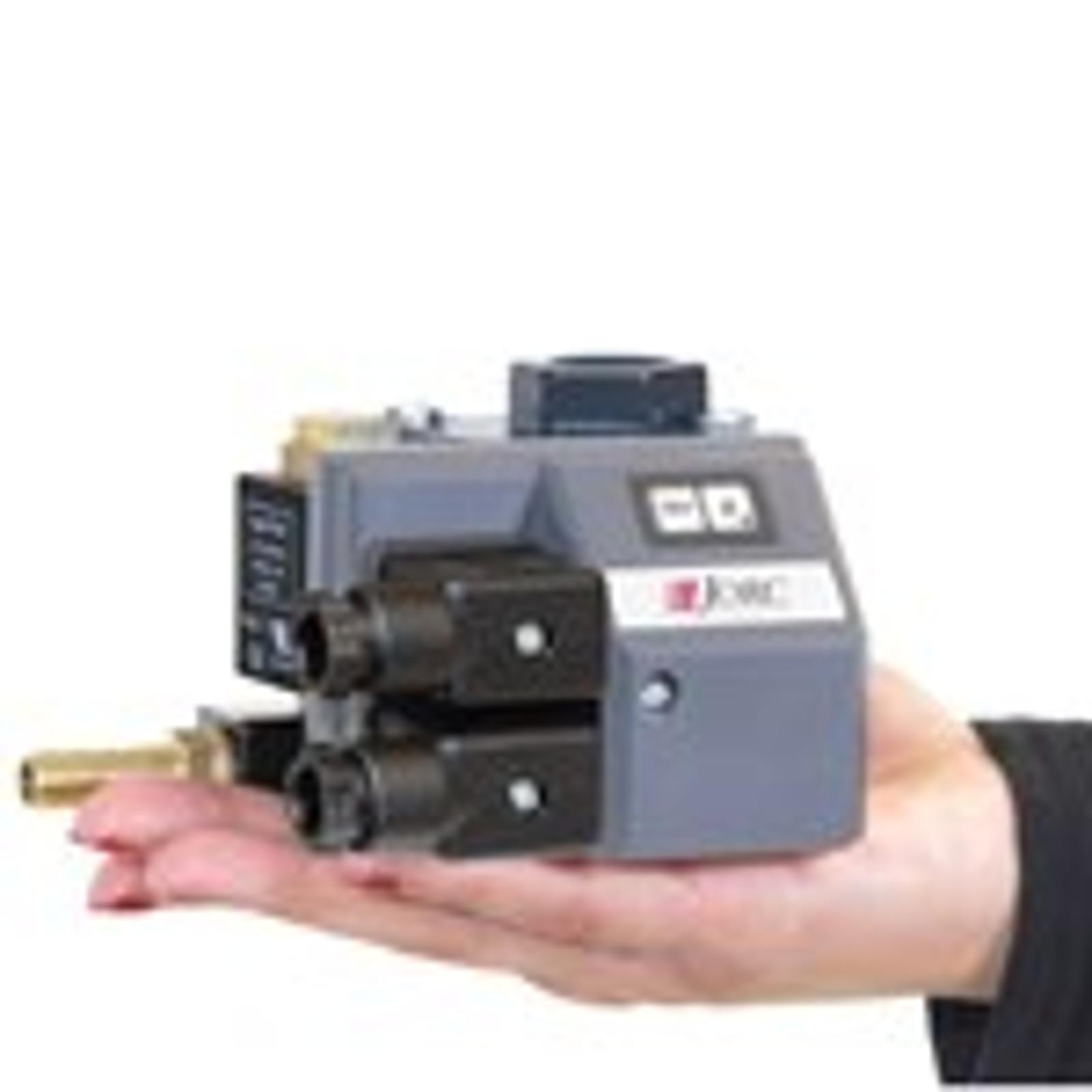

Incredibly compact.
image gen

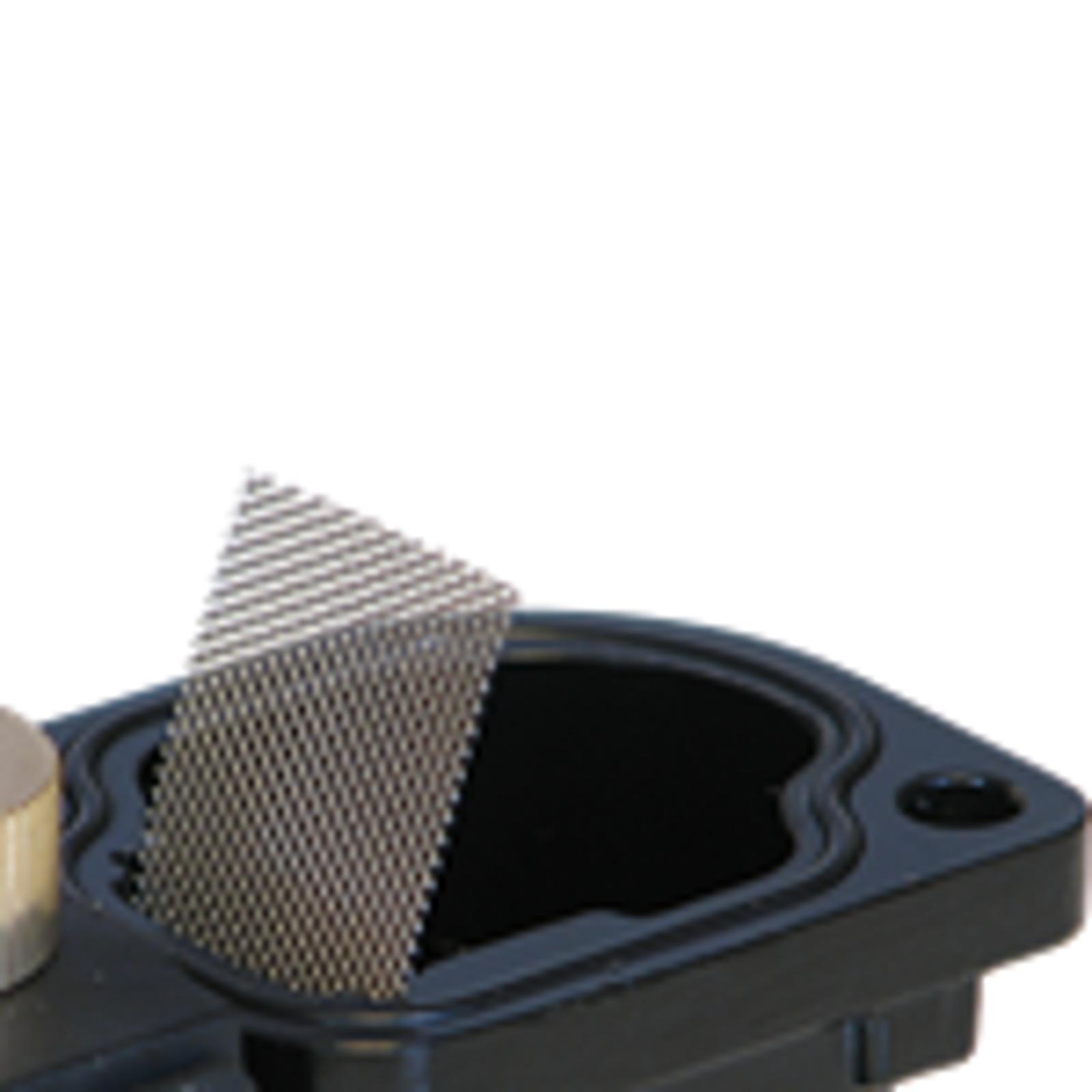

Large protective integrated mesh filter.
available options 2

Explore the future of compressed air systems with the KAPTIV-MD-AL range. Expertly crafted to remove all condensate types without compromising on air, it’s the compact powerhouse your setup deserves. Whether you’re dealing with smaller applications or restrictive spaces, KAPTIV-MD-AL’s unmatched reliability ensures seamless operation every time. Don’t just upgrade; revolutionize with KAPTIV-MD-AL.

  • Extremely compact and lightweight unit.
  • True zero air loss solution.
  • One model covers all compressor capacities up to 10 m³/min.
  • No sizing chart required, offering stock advantages.
  • The serviceable valve offers maintenance opportunities.
  • Visual alarm (LED indication).
  • Alarm feature (potential free relay) incorporated.
  • Easy to install due to its low inlet height.
  • External valve position allows for fast and easy maintenance.
  • Direct acting valve with FPM seal.
  • Robust corrosion resistant aluminium housing.
  • A large integrated mesh strainer.
  • Consult JORC for private labelling options.

  • MAX. COMPRESSOR CAPACITY

10 m³/min. (350 CFM)

  • MAX. DRAINAGE CAPACITY A1/A2 VERSION

45 liters condensate per hour at 16 bar

  • MIN./MAX. SYSTEM PRESSURE

0 - 16 bar (0 - 230 psi)

  • MIN./MAX. MEDIUM TEMPERATURE

1 - 60 °C (34 - 140 °F)

  • MIN./MAX. AMBIENT TEMPERATURE

1 - 60 °C (34 - 140 °F)

  • SUPPLY VOLTAGE OPTIONS

230VAC / 115VAC / 24VAC / 24VDC

  • ENCLOSURE PROTECTION RATING

IP65 (NEMA4)

  • CONNECTOR TYPE (POWER AND ALARM)

DIN 43650-B

  • INLET CONNECTIONS

1/2″ BSP or NPT

  • INLET HEIGHT

74 mm

  • SIDE INLET ADAPTER

Yes, optional

  • OUTLET CONNECTION

1/4″ BSP, with brass hose barb adapter

  • VALVE TYPE

2/2 way, direct acting

  • VALVE ORIFICE

2 mm

  • VALVE SEALS

FPM

  • SERVICEABLE VALVE

Yes

  • INTEGRATED MESH STRAINER

Yes

  • HOUSING MATERIAL

Corrosion resistant aluminium, EP coating

  • TEST FEATURE

Yes

  • VISUAL ALARM

Yes, LED indication

  • ALARM FEATURE A1 (N/O)

Normally Open alarm output contact (potential free relay)

  • ALARM FEATURE A2 (N/C)

Normally Closed alarm output contact (potential free relay)
