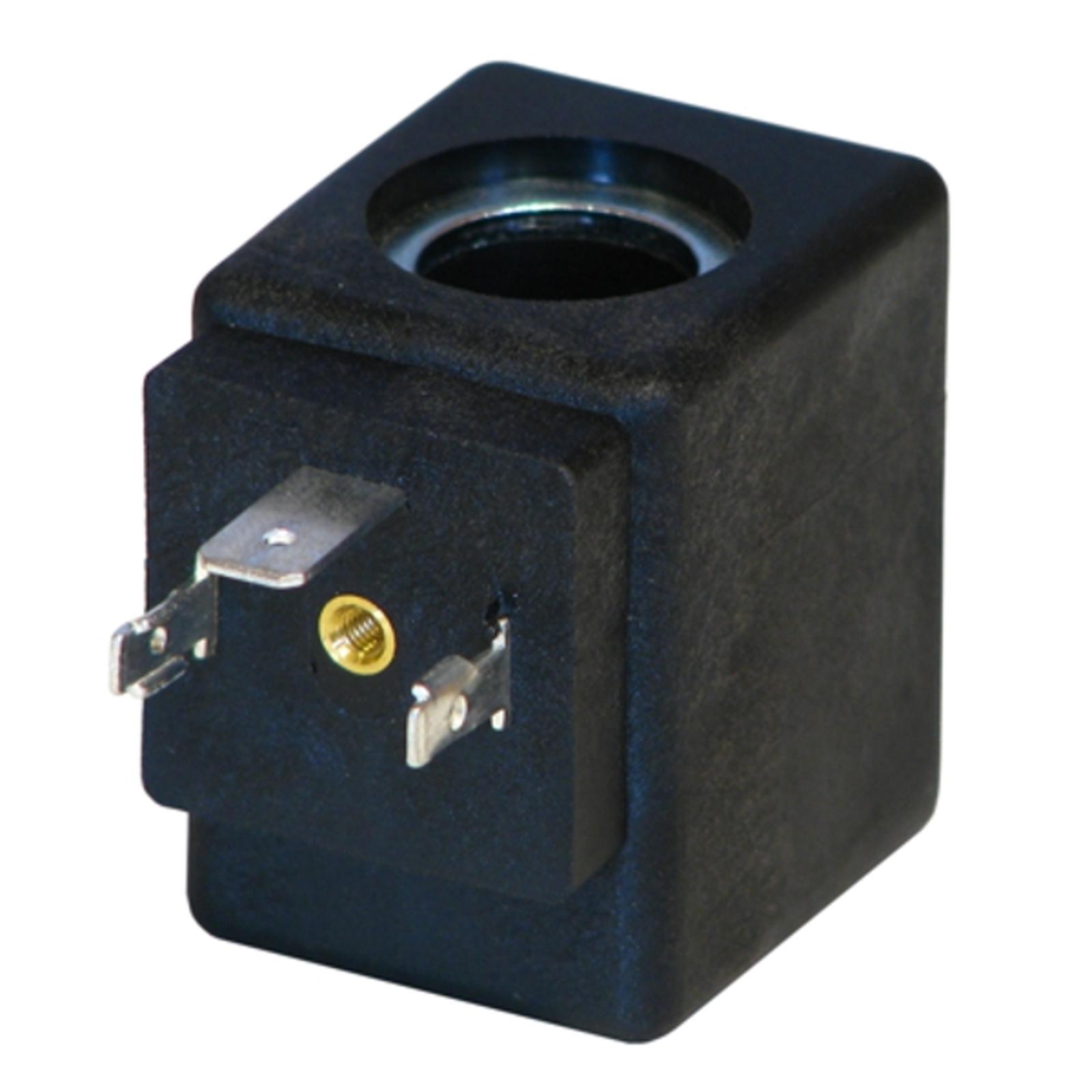

JCM (DIN form A) type coil.
Solenoid valve coils
JORC’s JC-type coils are produced with H-grade coil insulation, ensuring maximum heat resistance during operation.The outer encapsulation is an ABS type material.
All voltages are available ranging from 12 – 380VAC/DC 50/60 Hz.
There are three coil sizes (JCS, JCM and JCL), depending on type of valve in combination with pressure rating requirements.

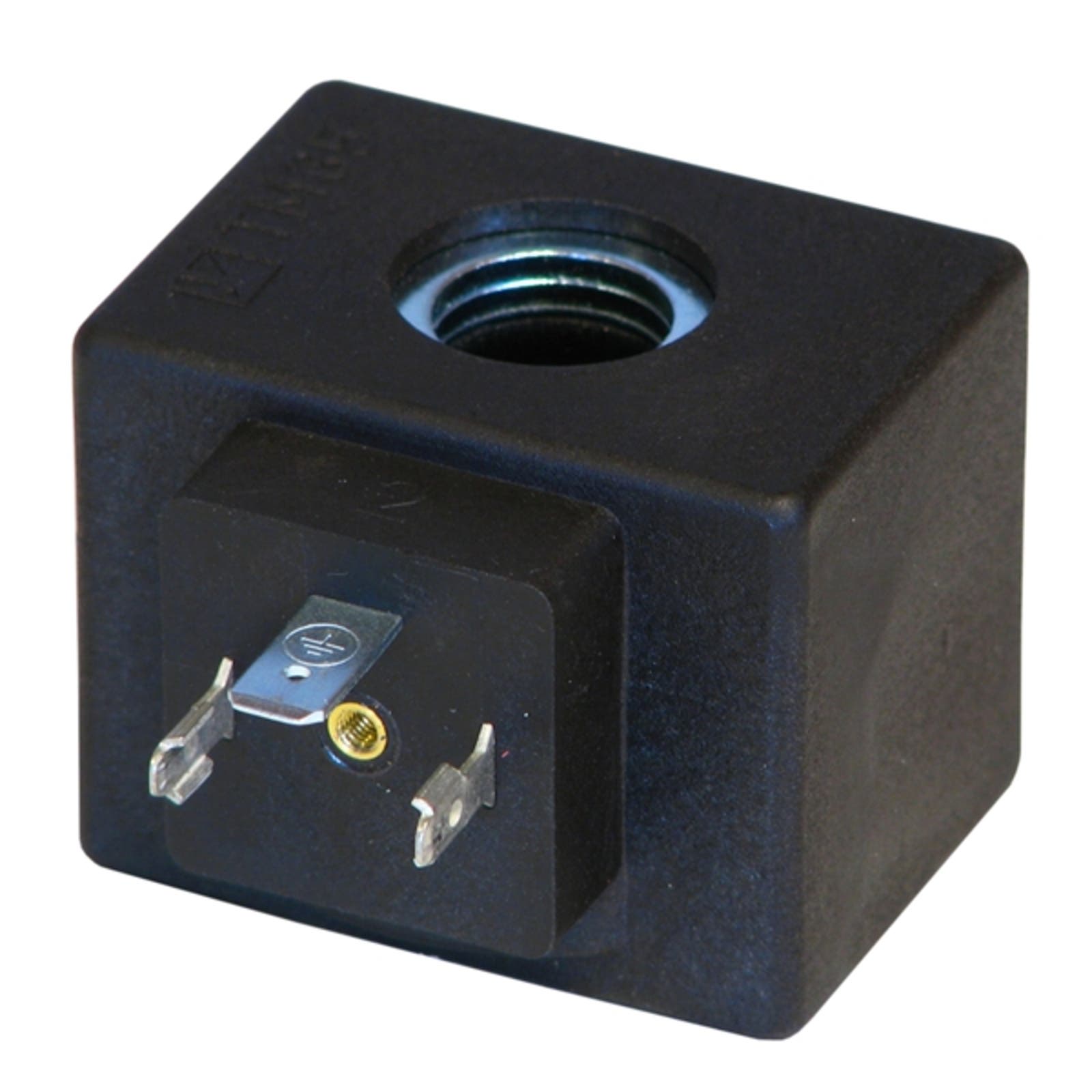

JCL (DIN form A) type coil.

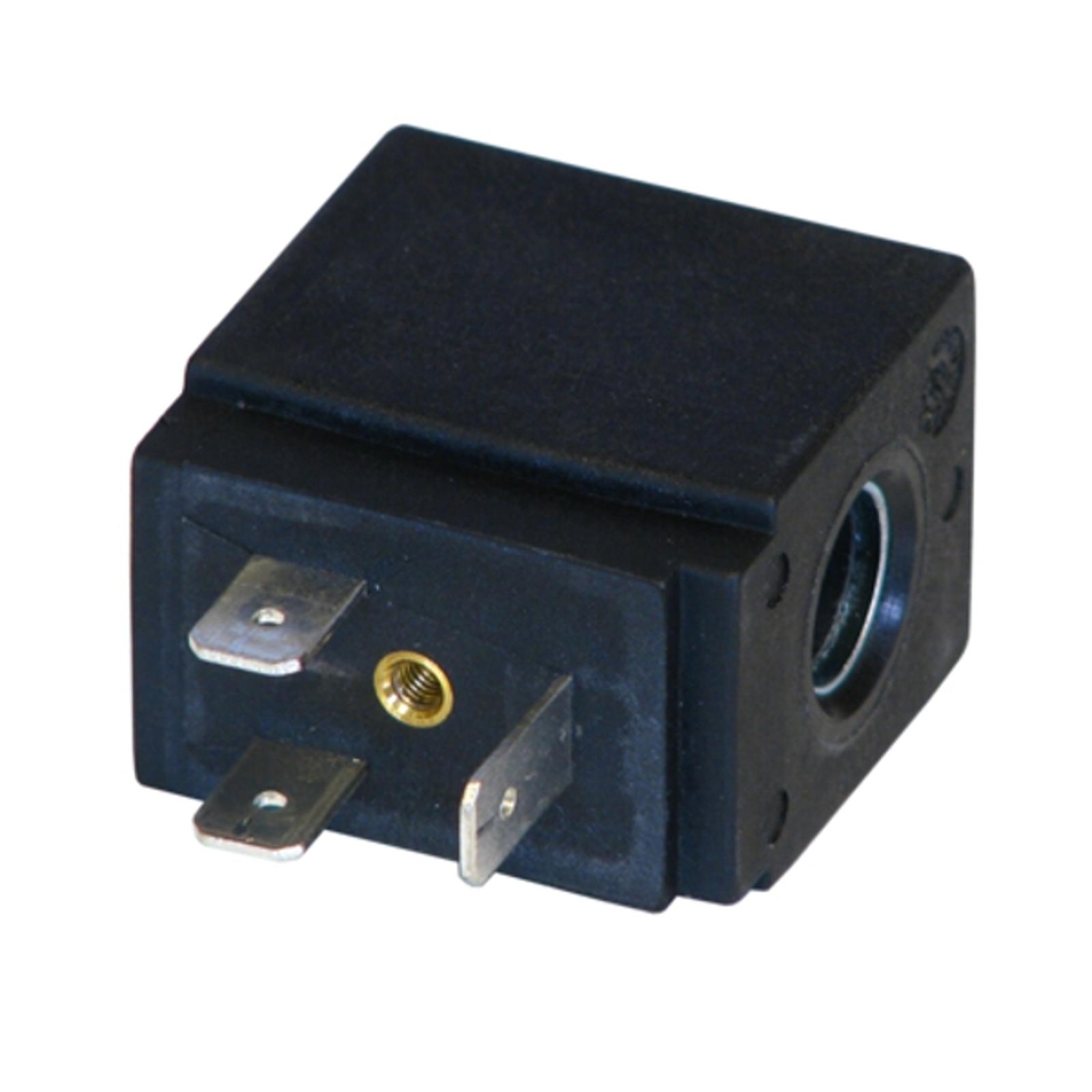

JCS (DIN form B) type coil.
- Various solenoid coils are available in all voltages to suit the application.
- CE and UL certified.
- H-grade coil insulation.
- Various options for high pressure applications.
- DIN form A and B options.
Depending on coil type and voltage, consult factory.
DOWNLOADS
D-LUX TIMER
The D-LUX Timer is produced using SMT (Surface Mounting Technology), ensuring improved performance and consistency process.
IP COIL SEALING SET
A solenoid valve is a very versatile product. Its simplicity and quick open/close time make it ideally suited for numerous applications.
FLUIDRAIN TIMER
The FLUIDRAIN Timer is produced using SMT (Surface Mounting Technology), ensuring improved performance and consistency process.
COMBO-D-LUX
The COMBO-D-LUX feature is a digital timer setting applied on time controlled condensate drains designed to automatically remove condensate from compressed air systems.

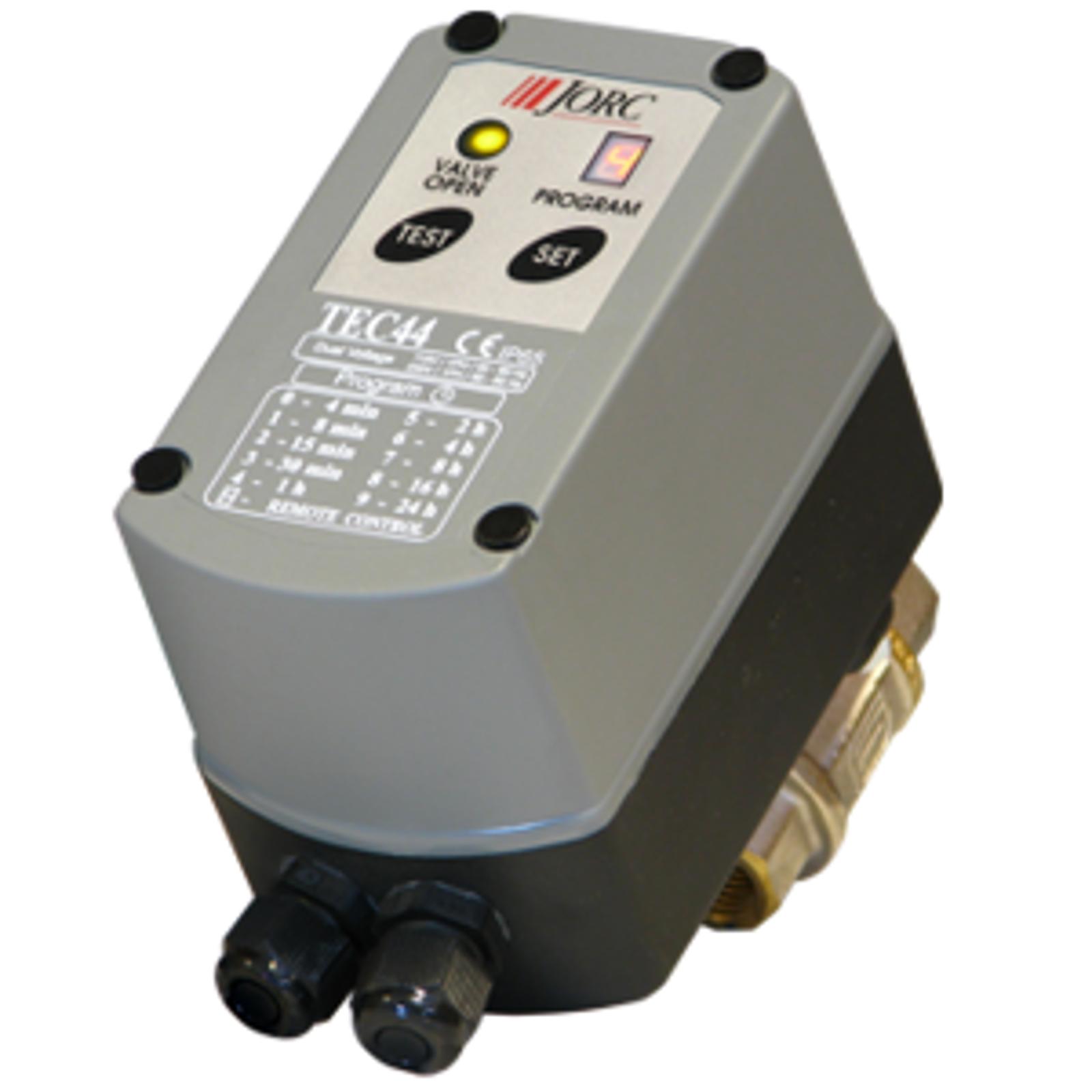

TEC-44
