TEC-44

Unblockable motorised ball valve drain

The TEC-44 is a powerful timer controlled motorised ball valve, designed to remove condensate from deliquescent dryers, tanks, vessels and refrigerated dryers.

The TEC-44 is designed to remove heavy contaminated condensate up to pressure ratings of 40 bar. This condensate drain can not be blocked and is applied where all else fails. Draining applications with a high level of contamination (rust, scale etc.) require the TEC-44.

The TEC-44 is impossible to block due to its powerful ball valve rotation and large orifice.

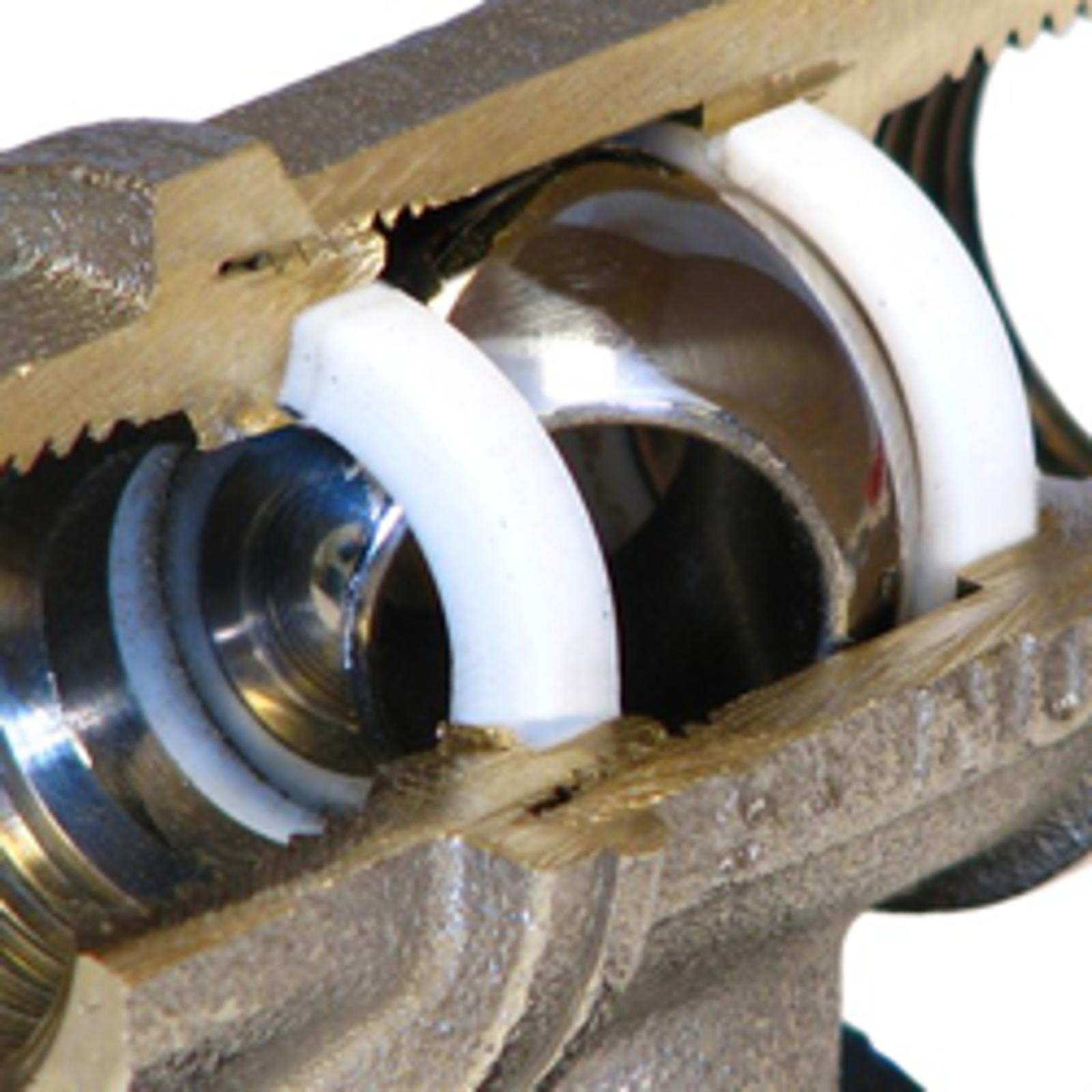

Stainless steel ball valve, offering you crushing power.

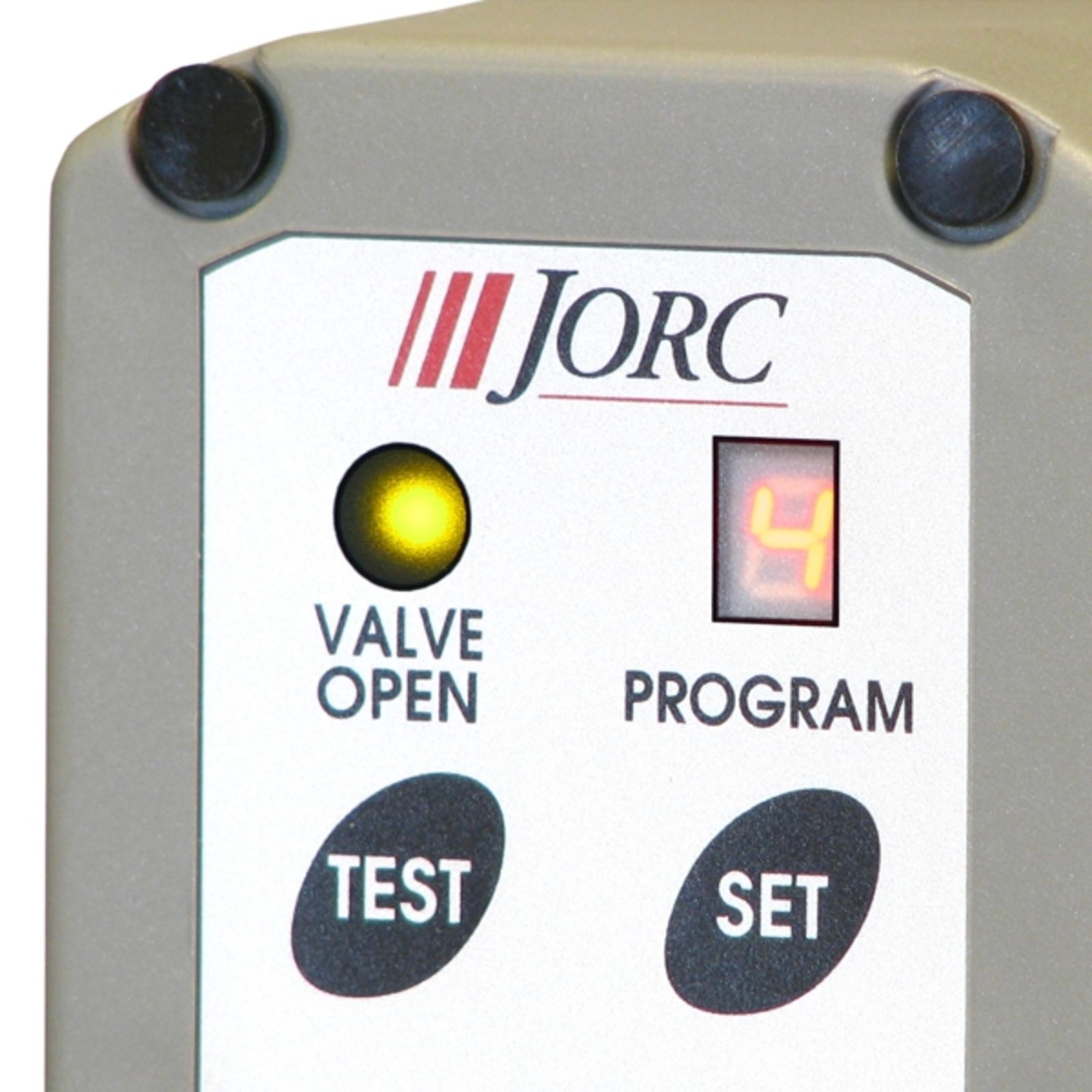

Digital cycle display, offering you a visual display of drain status.

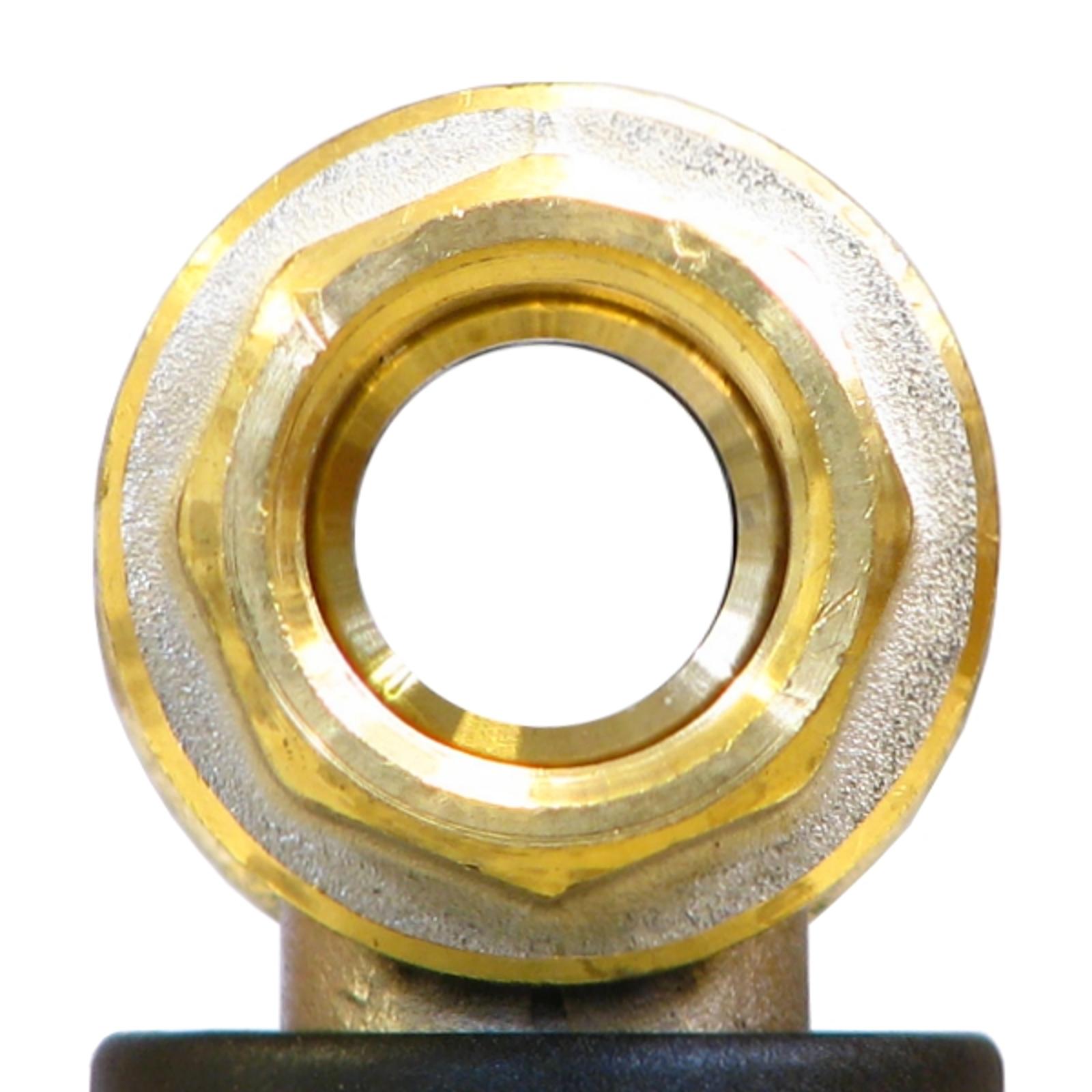

Large (full bore) 12 mm orifice, offering you a drain that cannot block.

Does not air-lock during operation.
For compressed air applications up to 40 bar.
Suitable for all types of compressed air systems with a high contamination of its condensate (rust, scale).
TEST (micro-switch) feature.
Micro-processor controlled (high level of time cycle accuracy).
Medium pressure up to 40 bar.
Remote control - optional.

MAXIMUM COMPRESSOR CAPACITY	Any size
PRESSURE RANGE	0 - 40 bar
SUPPLY VOLTAGE OPTIONS	24VDC, 115VAC and 230VAC 50/60Hz. (please indicate)
MEDIUM TEMPERATURE	1 - 60 °C
AMBIENT TEMPERATURE	1 - 55 °C
TIMER CYCLE RANGE (ON / OFF)	7 seconds to 15 minutes ON / 4 minutes to 24 hours OFF
ACTUATOR PCB	SMD technology, ensuring consistency in production
TIMER CYCLE INDICATION	Bright LED illumination, LED program indicator
TEST FEATURE	Yes
VALVE TYPE	2/2 way, motorised ball valve
VALVE ORIFICE	12 mm
VALVE SEALS	FPM and Teflon
INLET/OUTLET CONNECTIONS	1/2″ (BSP or NPT)
INLET CONNECTION HEIGHT	1.0 cm
SERVICEABLE VALVE	Yes
VALVE HOUSING MATERIAL	Brass nickel plated, ballvalve stainless steel
POWER CONNECTION	Cable and plug
ENVIRONMENTAL PROTECTION	IP65 (NEMA4)
REMOTE SWITCH OPTION	Yes
