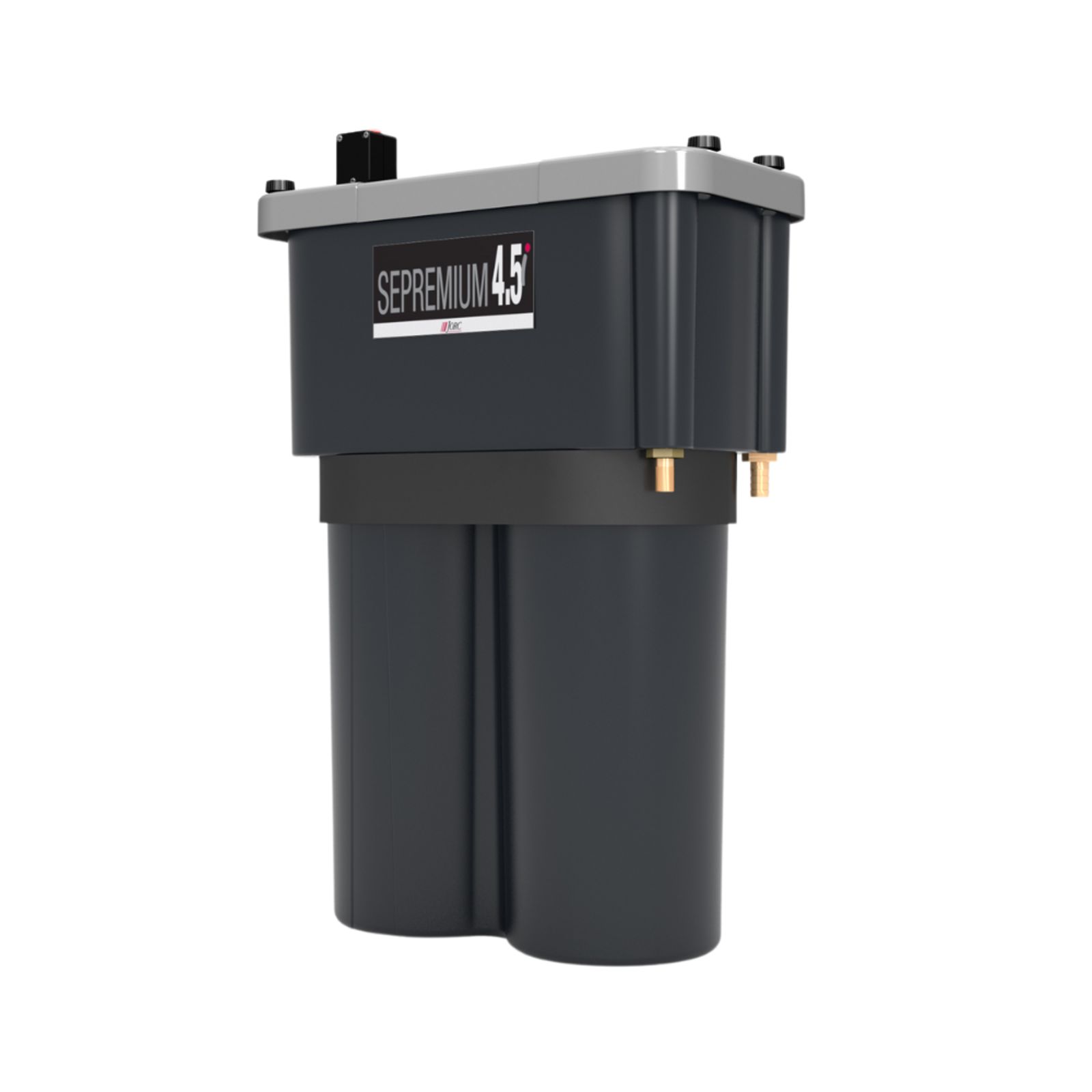

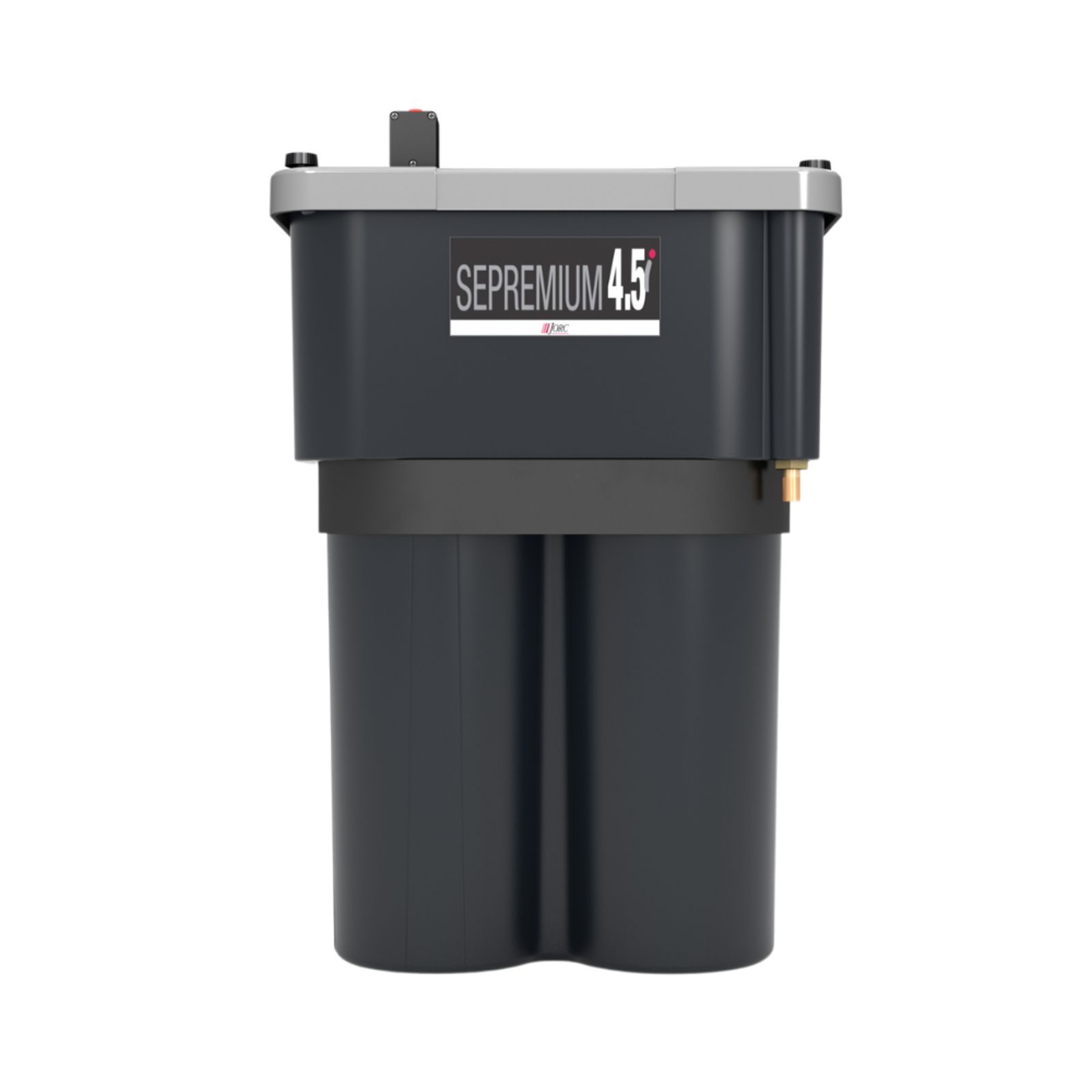

JORC SEPREMIUM 4.5i Oil Water Separator

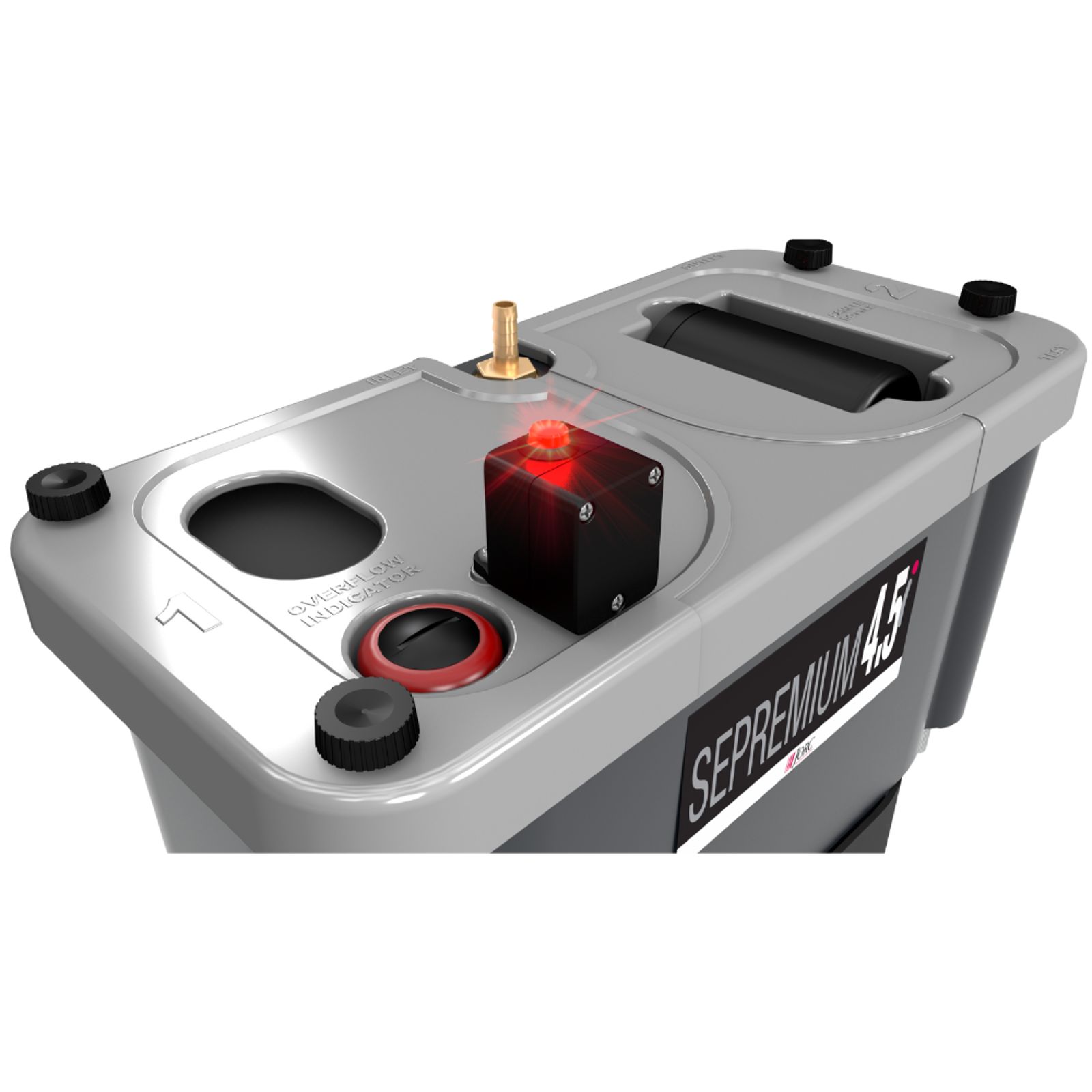

JORC SEPREMIUM 4.5i Oil Water Separator Top Detail view

Oil Water Separator

As condensate enters the SEPREMIUM 4.5i, it undergoes a multi-stage filtration process to effectively remove oil. Engineered to meet the latest ecological standards, the SEPREMIUM 4.5i boasts a residual oil content of less than 5 ppm. Upon entry, the condensate is meticulously filtered through the newly integrated unique JORC high-quality green element that ensure optimal environmental compliance and facilitate user-friendly operation. Featuring a 100% recycled plastic housing, the SEPREMIUM 4.5i is a true green intelligent oil separation solution.

These innovative oil-adsorbing components utilize cutting-edge adsorption technologies. The final separation stage includes specially selected activated carbon to polish out the remaining contaminants. This new intelligent separator includes an automatic indicator (flashing light) to indicate a service necessity and/or a potential overflow issue before a problem arises. Also, there is the possibility to incorporate the separator into a monitoring system using available sensor switches that can be mounted on your separator. The SEPREMIUM 4.5i is conveniently installed using the included solid constructed mounting bracket.

Commercial benefits:

Any type and design of condensate drain can be utilized
Newly designed performance elements specifically available to treat stable condensate emulsions and polyglycol-lubricated compressed air system
Compact dimensions facilitate easy handling and installation
Overflow flash indicator included
Optional JORC sensor to connect to your monitoring system
No formation of bacteria-related deposits through water calming (compared to gravity separators)
Includes a solid constructed bracket for convenient wall mounting

Technical advantages:

Ideal choice for compressor capacities up to 4.5 m³/min. (159 CFM)
Implementation of NEW high-quality JORC green filtration element
Effective separation of mineral oil, synthetic oil and stable condensate emulsions
Brass hose connectors ensure swift and secure installation
Includes a solid constructed bracket for convenient wall mounting
Housing and lids made out of up to 100% recycled plastic
Exceptional value for money

Max. Compressor Capacity	4.5 m³/min. (159 CFM)
Max. Oil Absorption Volume	4.5 liters
Filter Elements	1
Activated Carbon Elements	1
Inlet connection	G ½" (10 mm hose adapter)
Outlet connection	G ½" (14 mm hose adapter)
Test Valve & Sample Bottle	Yes
Residual Oil Content	<5 ppm
Housing Material	PPC
Housing Color	Black
Lid Color	Grey
Test Kit Included	Yes
Inlet/Outlet Hose Adapters	Included
DIBt Certification	Yes
Suitable for Mineral/Synthetic Oils	Yes
Suitable for Stable Emulsions/Polyglycol	On request
Space Requirement	191x392x596
