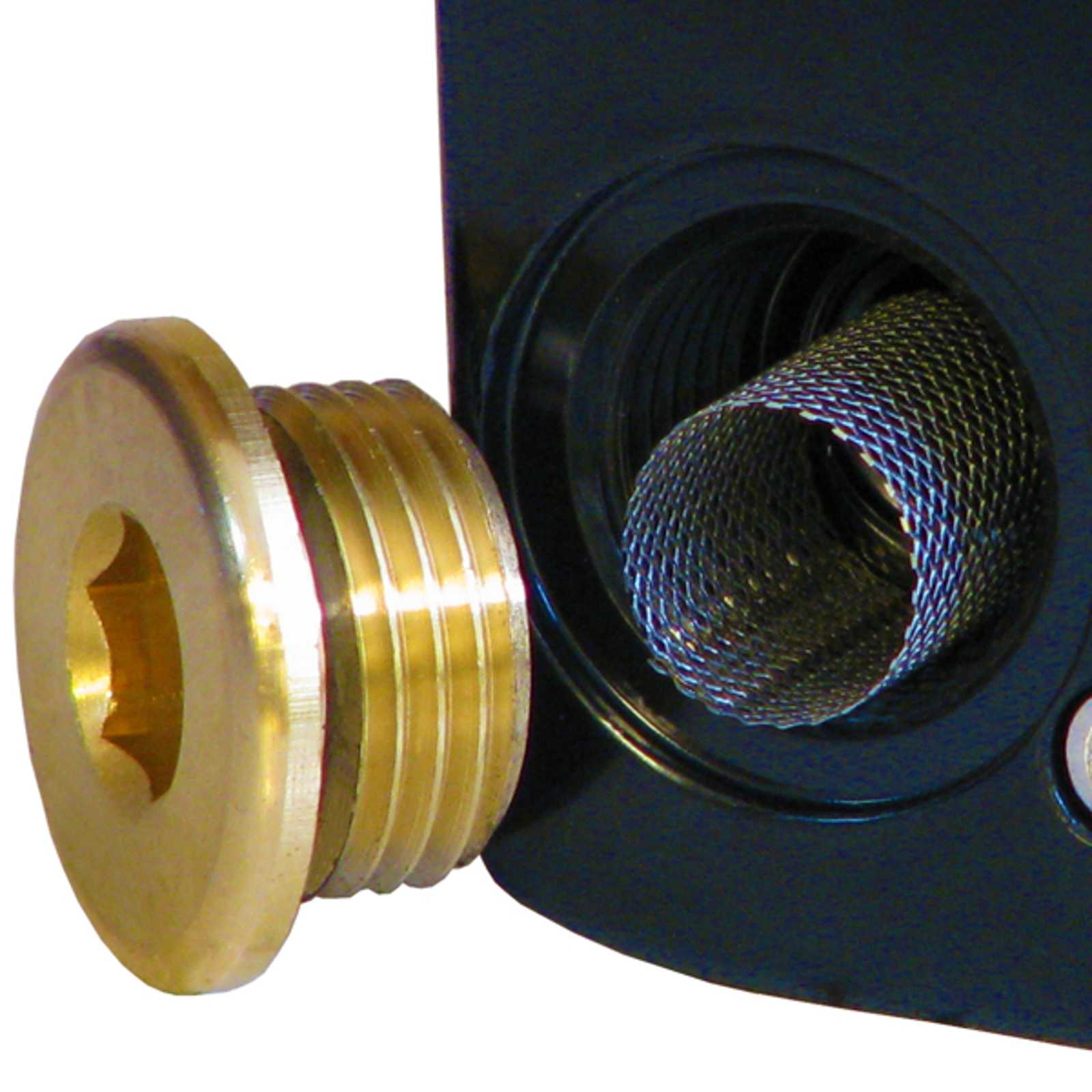

Integrated strainer to protect the valve.

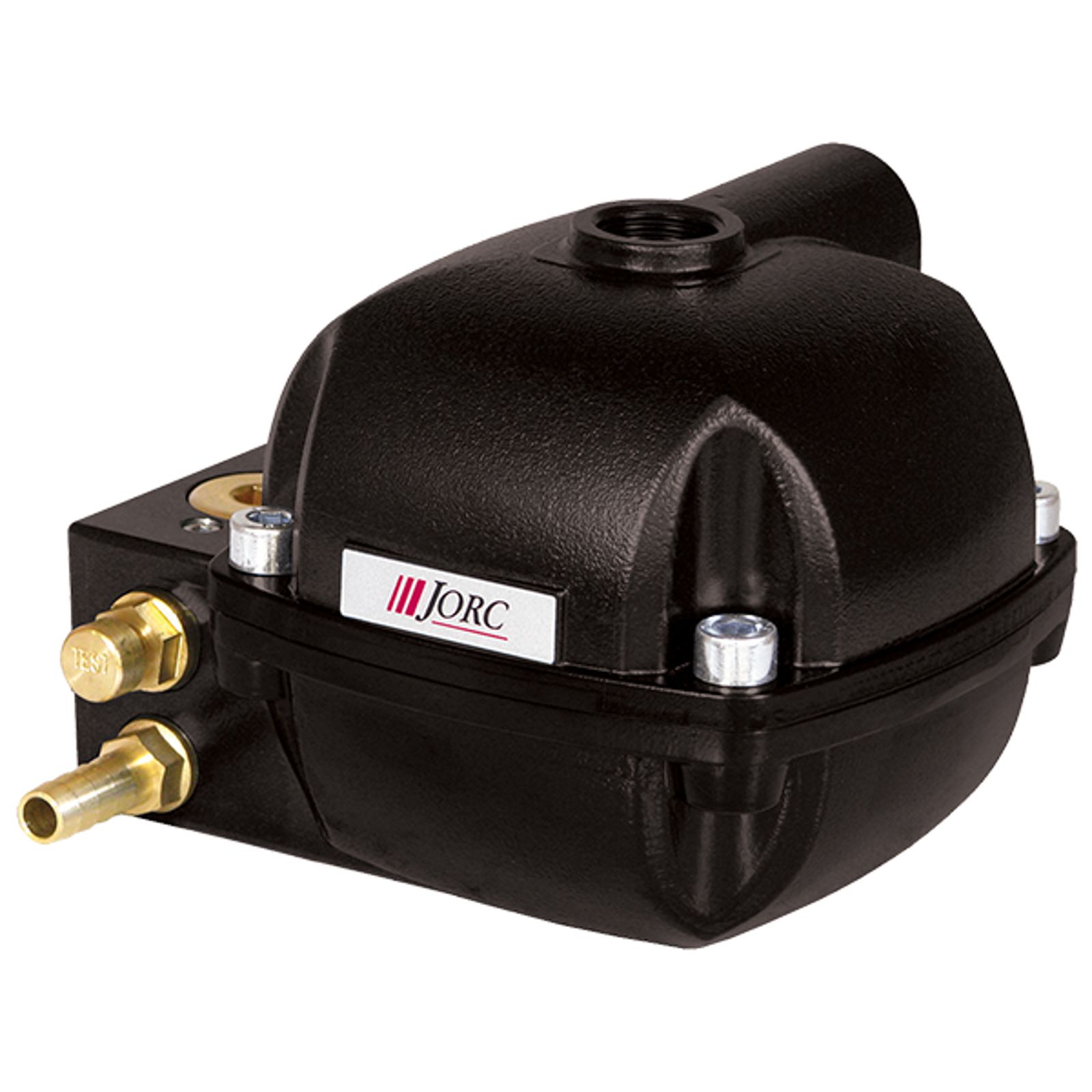

Pneumatically operated level sensed condensate drain
The NUFORS-CR removes condensate from compressed air systems without using electricity and without the unnecessary loss of compressed air.The discharge process is automatic and is based on a 3/2 way level controlled valve principle that operates a piston type direct acting valve. The advantage of this valve principle is that the NUFORS-CR’s orifice can be 6 mm, offering an increased reliability factor.
The NUFORS-CR is ideally suited in applications where power is not available, too expensive or not reliable. The NUFORS-CR features a specially treated robust aluminium housing suitable for oil lubricated and oil-free applications.
In addition, the NUFORS-CR can be applied in applications that demand a higher IP rating (International Protection rating or Ingress Protection). The NUFORS-CR offers an IP68/NEMA6 rating.

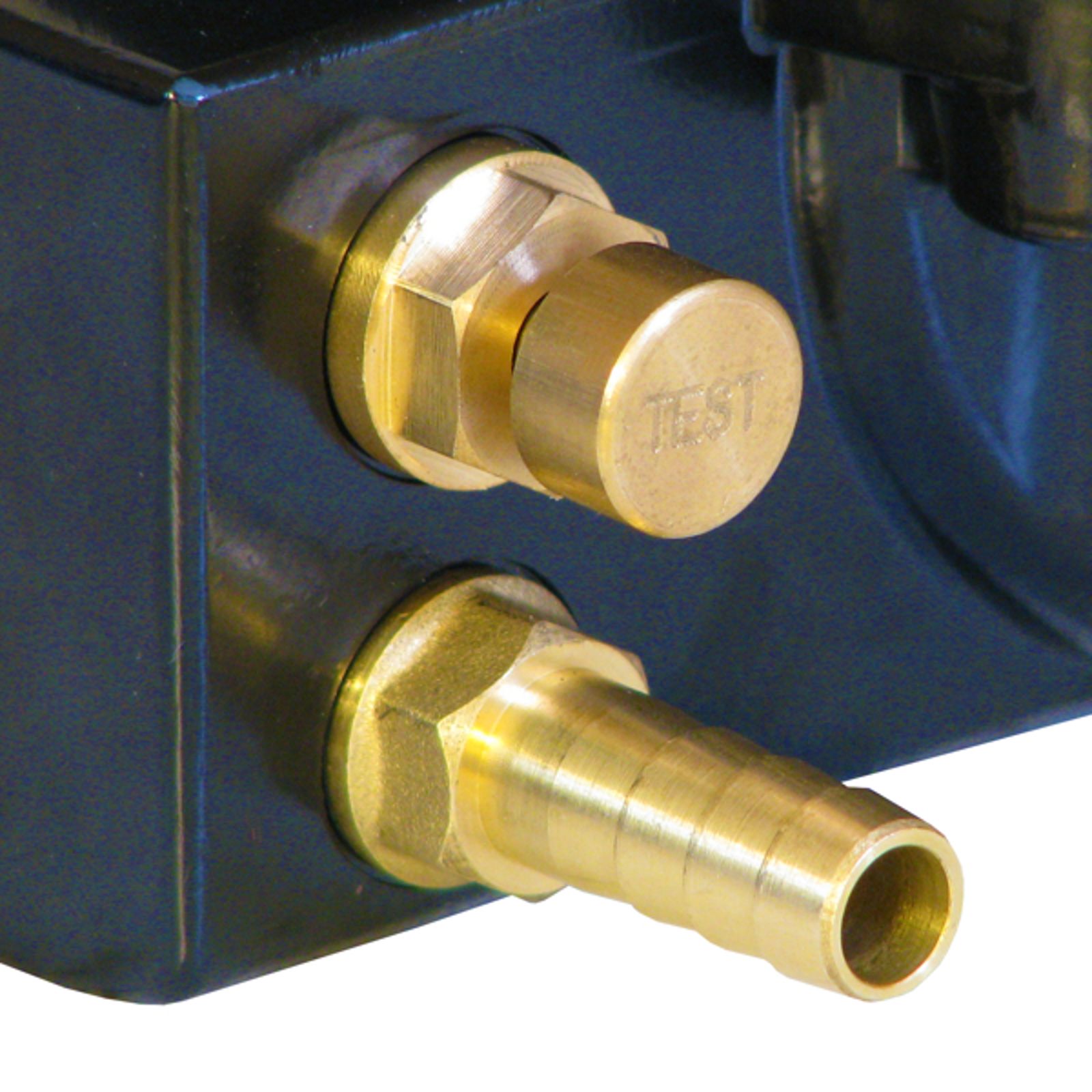

Test feature for routine testing.

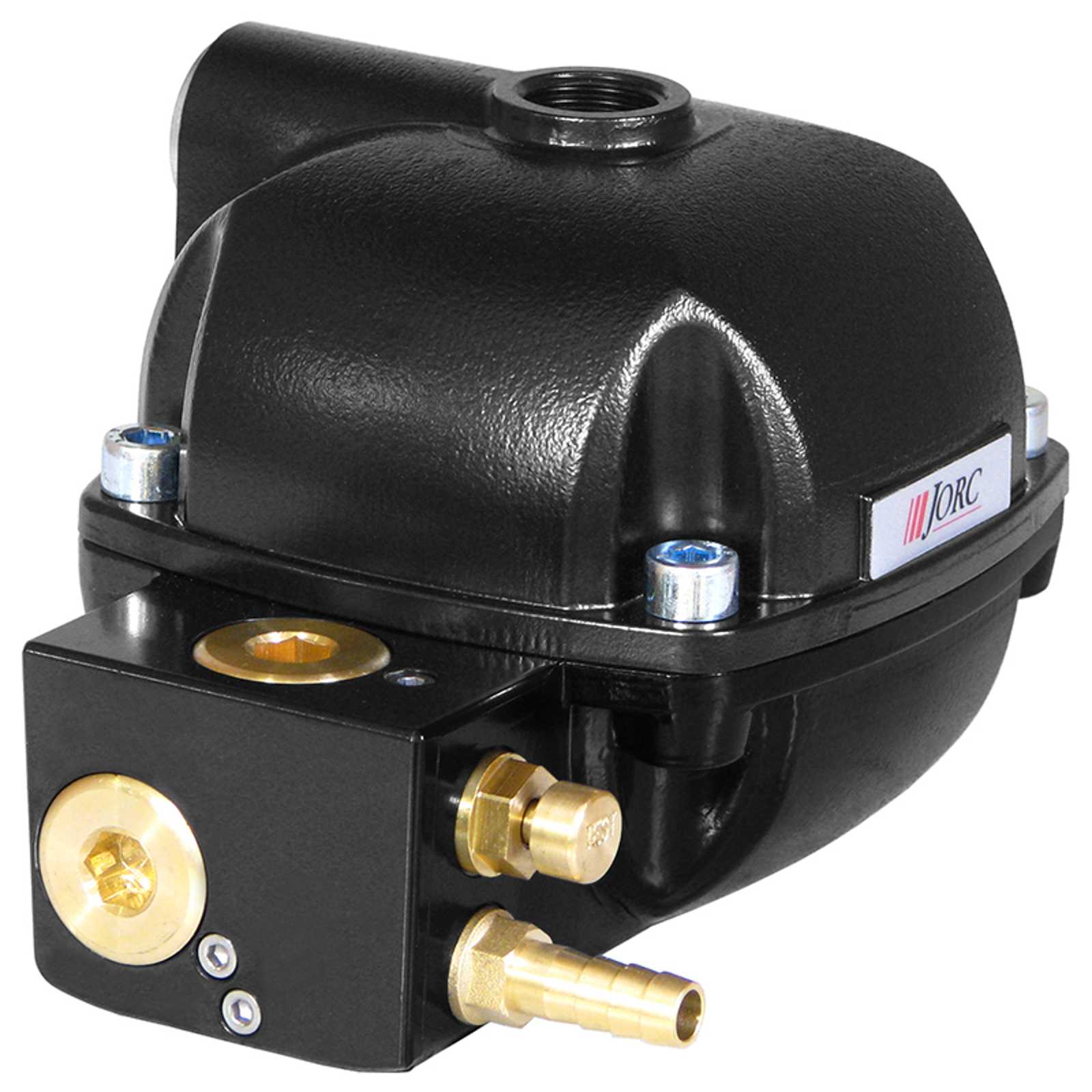

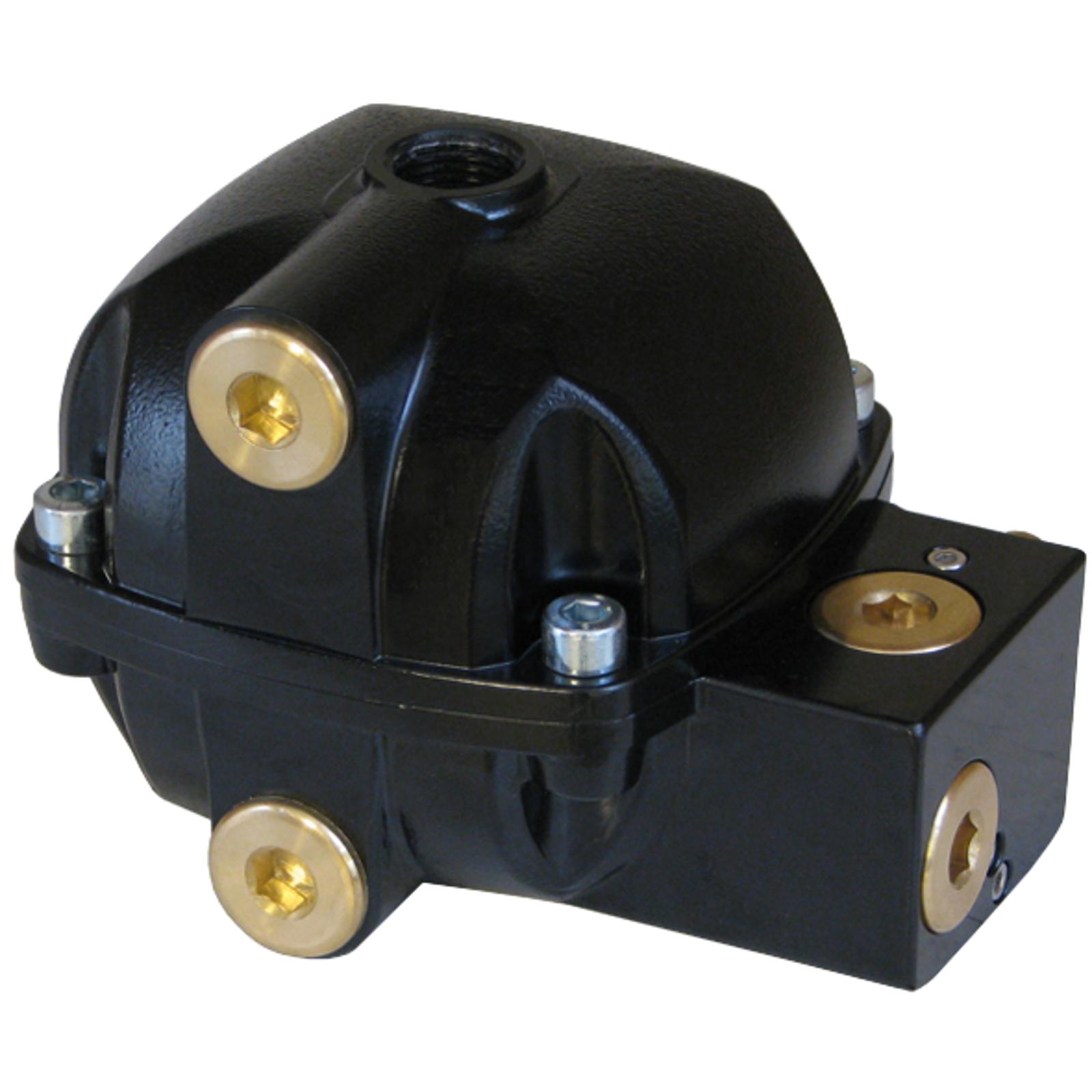

Robust aluminium housing with three inlet options, offering you installation flexibility.
- Competitive ‘true green’ solution.
- No operating costs.
- No electricity required - install and go!
- Operating pressure up to 16 bar.
- Reduced stocking costs - 1 model covers 100 m³/min.
- Suitable for any type of compressed air system.
- No complicated sizing charts required.
- Compact and unique design.
- Successful draining of condensate due to large orifice (also heavily emulsified condensate).

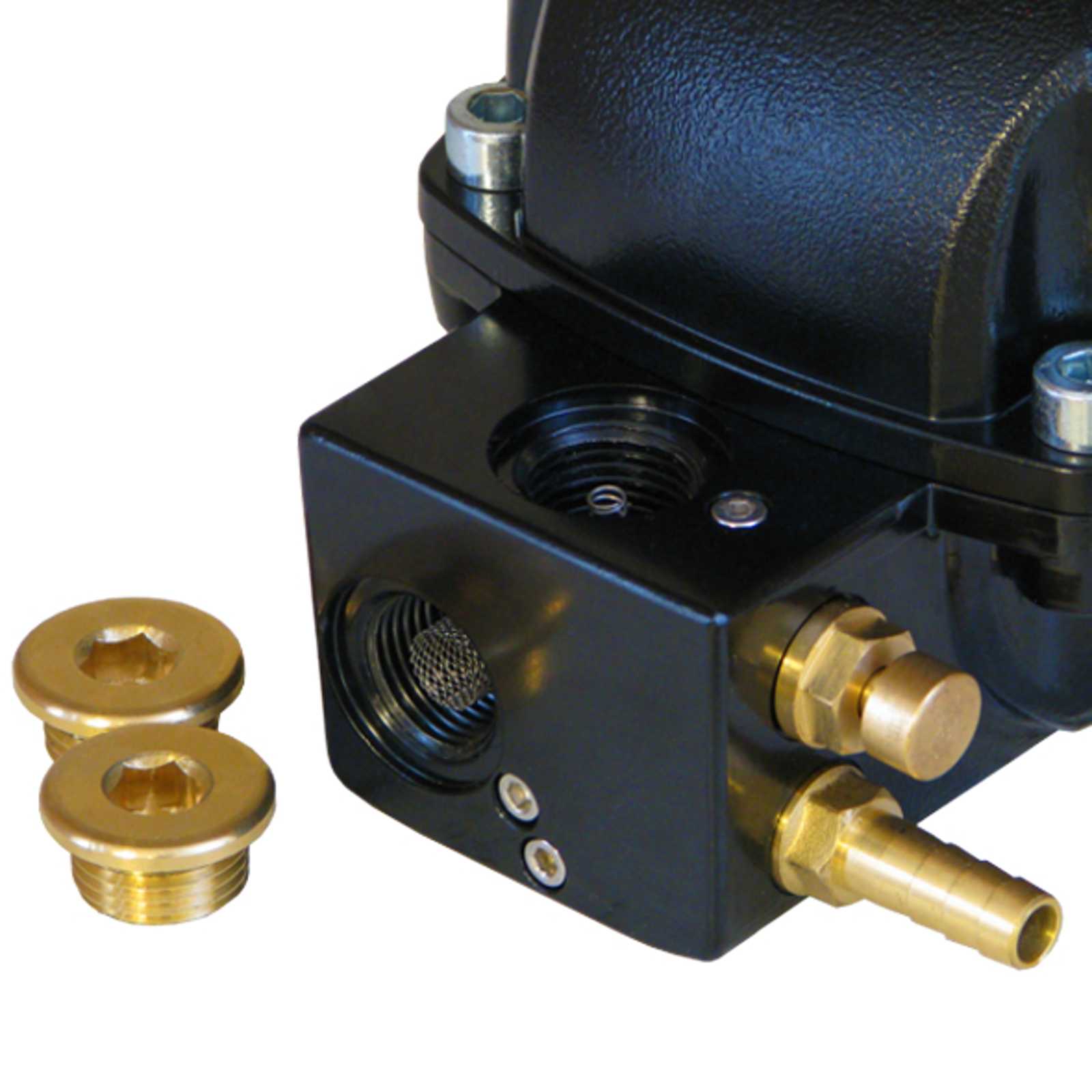

- Incredibly easy and quick to install and to service.
- No complicated control air line and pressure regulator required.
- Integrated strainer.
- Top and side inlets available.
- Test feature.
- Robust aluminium housing.
- Direct acting valve construction for a reliable condensate discharge operation.
MAX. COMPRESSOR CAPACITY | 100 m³/min. (3500 CFM) |
MAX. DRAINAGE CAPACITY | 1062 liters condensate per hour at 16 bar |
MIN./MAX. SYSTEM PRESSURE | 3 - 16 bar (44 - 230 psi) |
MIN./MAX. MEDIUM TEMPERATURE | 1 - 60 °C (34 - 140 °F) |
MIN./MAX. AMBIENT TEMPERATURE | 1 - 60 °C (34 - 140 °F) |
ENCLOSURE PROTECTION RATING | IP68 (NEMA6) |
INLET CONNECTIONS | 1/2″ BSP or NPT, 3 inlet options |
INLET HEIGHT | 12 cm (top) and 9.7 & 1.5 cm (side) |
OUTLET CONNECTION | 1/4″ BSP, with brass hose barb adapter |
VALVE TYPE | Direct acting |
VALVE ORIFICE | 6 mm |
VALVE SEALS | FPM |
SERVICEABLE VALVE | Yes |
INTEGRATED MESH STRAINER | Yes |
HOUSING MATERIAL | Corrosion resistant aluminium, EP coating |
TEST FEATURE | Yes |
