MAGY optionally available with test button.

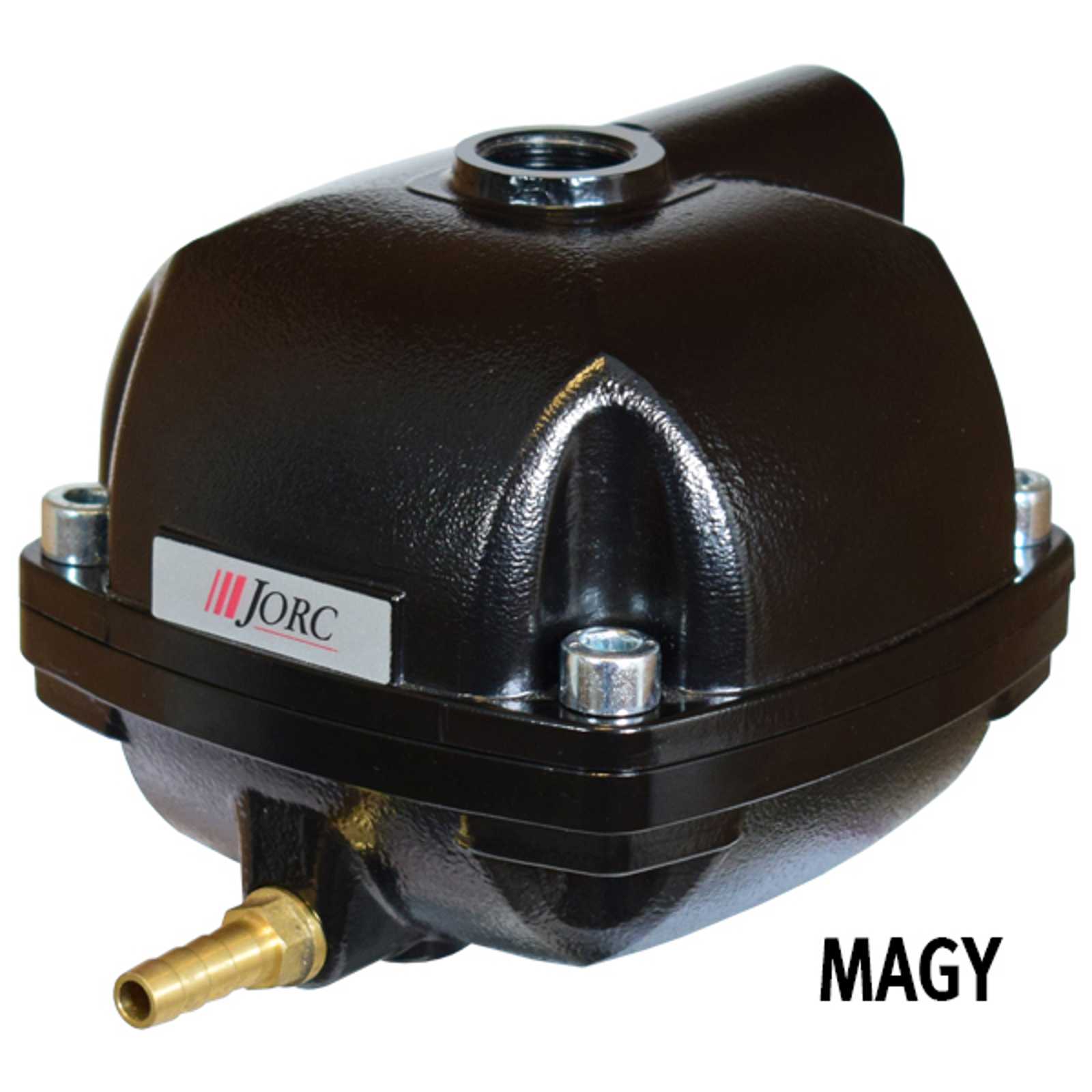

Magnetically operated zero air loss drain
The MAGY is a magnetically operated level sensed drain that discharges condensate from all compressed air systems by using a unique technology based on magnetic forces. The MAGY uses specially selected magnets that operate the 2/2 way direct acting valve assembly.The discharge process of the MAGY is automatic and there is no loss of compressed air during the condensate discharge cycle.
The specially selected long-life magnets ensure a high operation consistency.
The MAGY is easy to install and to service due to the top and side inlet options. The MAGY is ideally suited in applications where power is not available, too expensive or not reliable.
Typically the MAGY is installed in refrigerated dryers and under piston compressors. The MAGY features a specially treated robust aluminium housing suitable for oil lubricated and oil-free applications.
The MAGY is also available with a test feature. The test button offers the solution to check your MAGY ensuring nothing is obstructing the orifice. It also allows you to depressurise the drain for those yearly maintenance moments.
NEW! MAGY optionally available with test button!

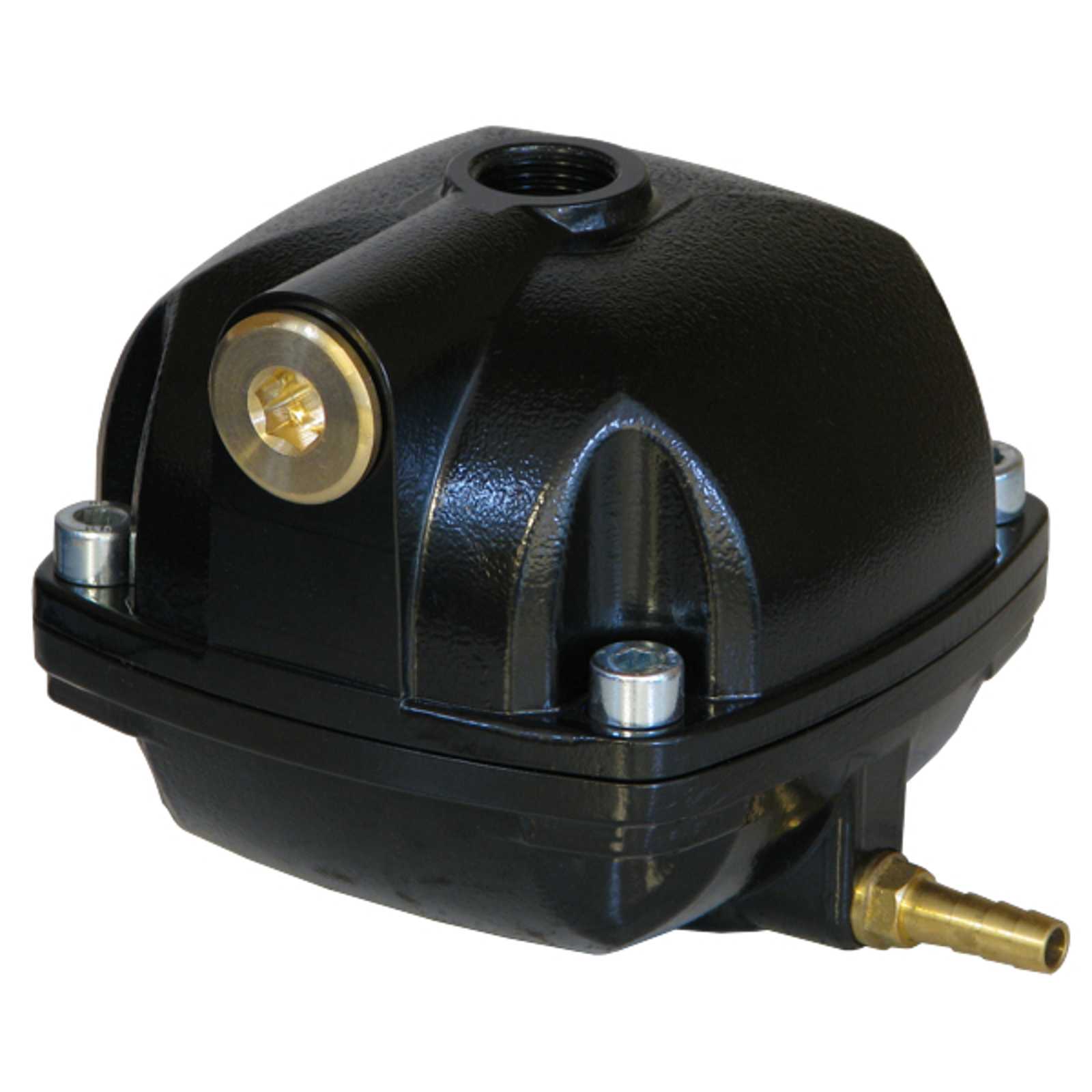

Two inlet options

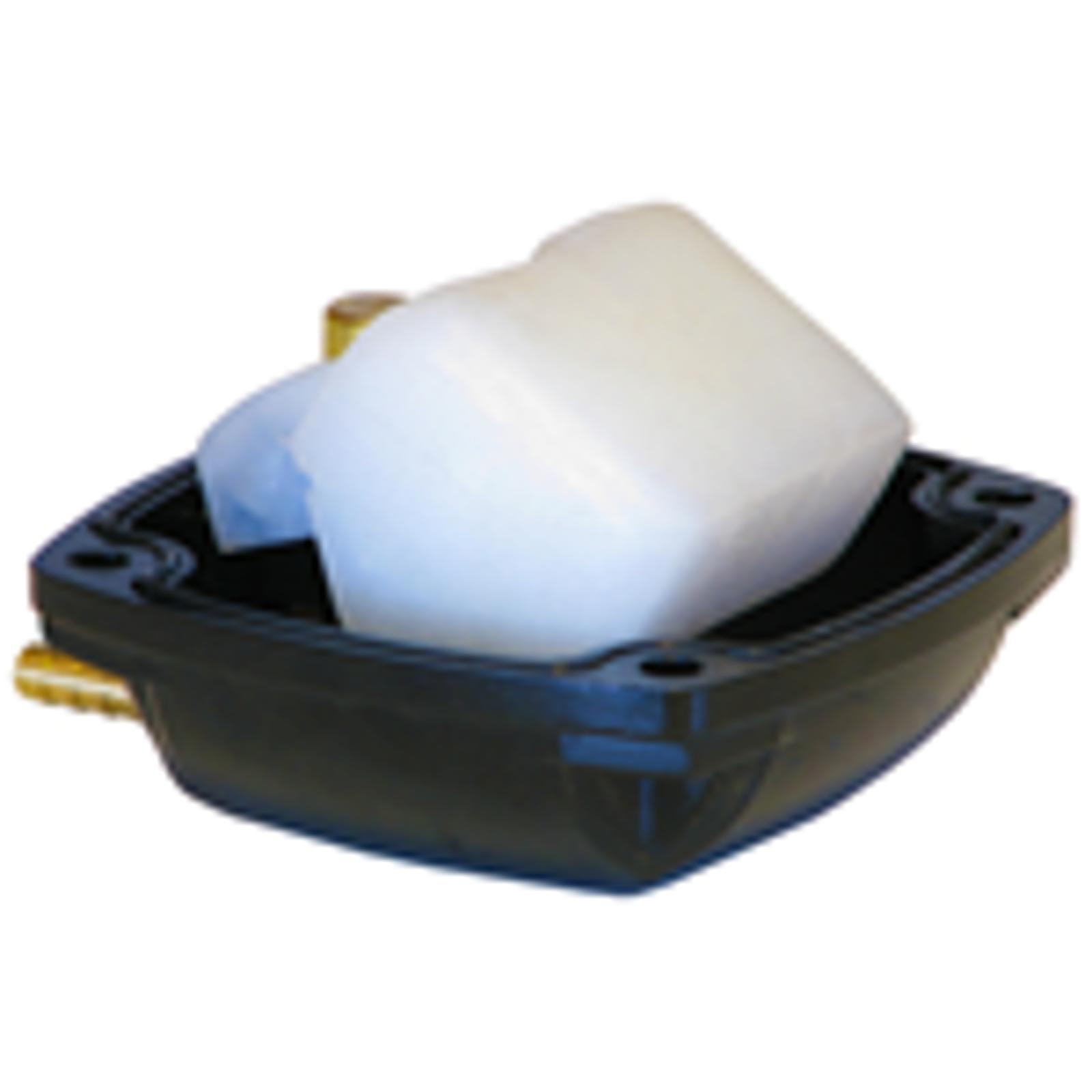

Specially selected magnets operate the 2/2 way direct acting valve assembly
- Extremely compact with top and side inlet options
- Level sensed magnetic technology saves air, energy and money!
- No operating cost once installed
- Service kits available
- Direct acting valve, for a reliable discharge
- Operating pressure 0 to 16 bar
- Robust corrosion resistant aluminium housing finished with an EP coating
- The direct acting valve is serviceable
- Also available with a test button
| Unlimited |
| 145 liters condensate per hour at 16 bar |
| 0 - 16 bar (0 - 230 psi) |
| 1 - 60 °C (34 - 140 °F) |
| 1 - 60 °C (34 - 140 °F) |
| IP68 (NEMA6) |
| 1/2″ BSP or NPT, 2 inlet options |
| 10.3 cm (top) and 9 cm (side) |
| 1/8″ BSP, with brass hose barb adapter |
| 2/2 way, direct acting |
| 2 mm |
| FPM |
| Yes |
| Corrosion resistant aluminium, EP coating |
| Optionally available |
magy-bv-nl-12-2018.pdf
MAGY
magy-bv-de-11-2018.pdf
MAGY
magy-bv-fr-12-2018.pdf
MAGY
magy-bv-sv-1-2019.pdf
MAGY
zal-engels-bv-10-2021.pdf
LEVEL SENSED DRAINS
zal-catalogus-duits-bv-6-2020.pdf
LEVEL SENSED DRAINS
zal-catalogue-bv-francais-8-2020-lr.pdf
LEVEL SENSED DRAINS
zal-espanol-bv-08-2020.pdf
LEVEL SENSED DRAINS
magy-v2-francais.pdf
MAGY
magy-v2-espanol.pdf
MAGY
magy-v2-portuguese.pdf
MAGY
magy-v2-polski.pdf
MAGY
magy-v2-with-test-20-10-2020.pdf
MAGY TEST
ANTI-AIRLOCK ADAPTER
The anti-airlock adapter is simple to install and helps prevent air locks from being created.
DRAIN HEATER
Prevent freezing in condensate drains with JORC’s Drain Heater. Ideal for cold environments, it ensures reliable operation and protects your compressed air system
BALL VALVE STRAINERS
The FLUIDRAIN and EZ-1 drain valves have an orifice of 4.5 mm (EZ-1 4.0 mm).
SERVICE KITS
Great care is taken to ensure long lasting components are selected and applied in our products.
MAGY - SEE HOW IT WORKS
MAGY INTRODUCTION:
MAGY MAINTENANCE INSTRUCTIONS:
TIPS & TRICKS

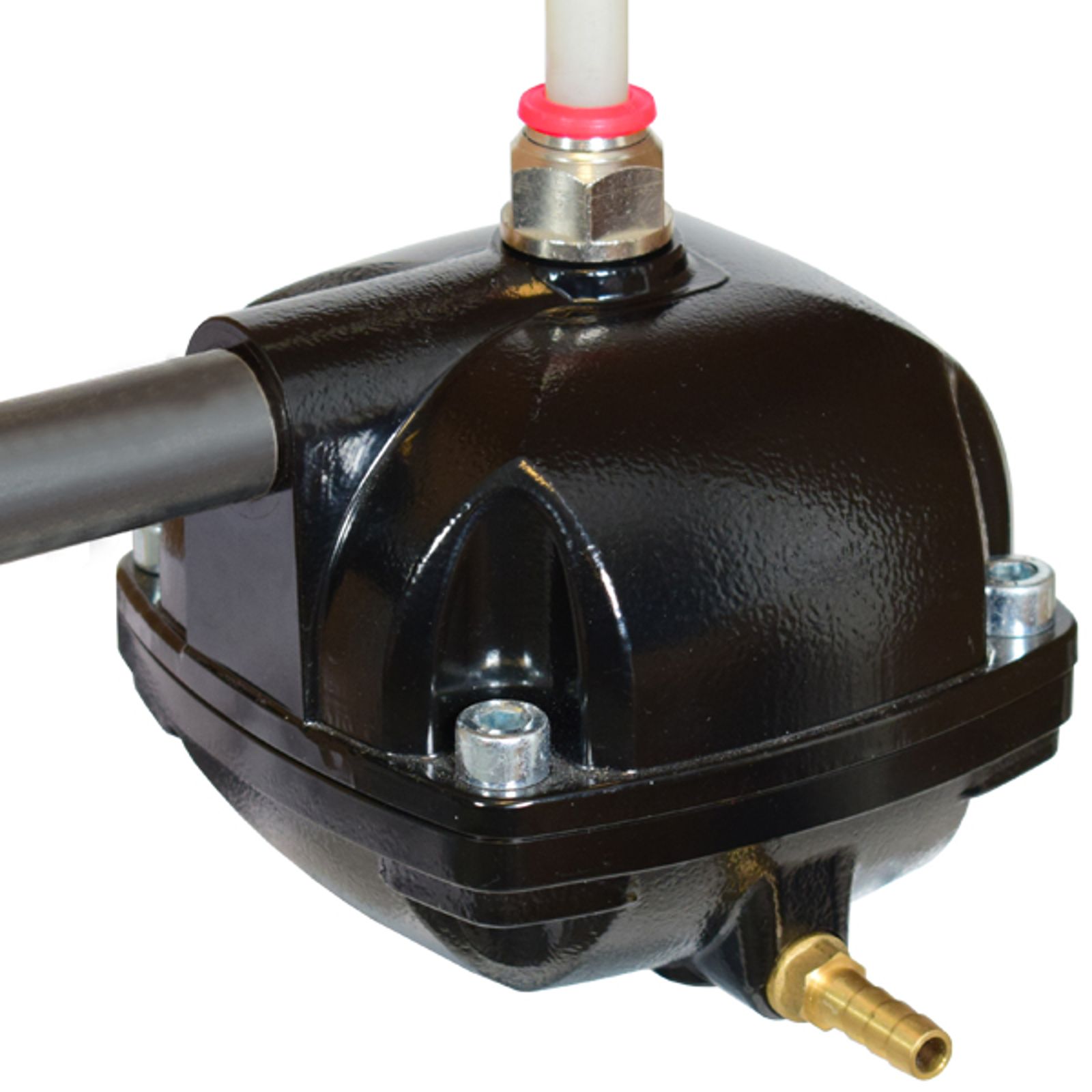

Avoiding airlocks:
