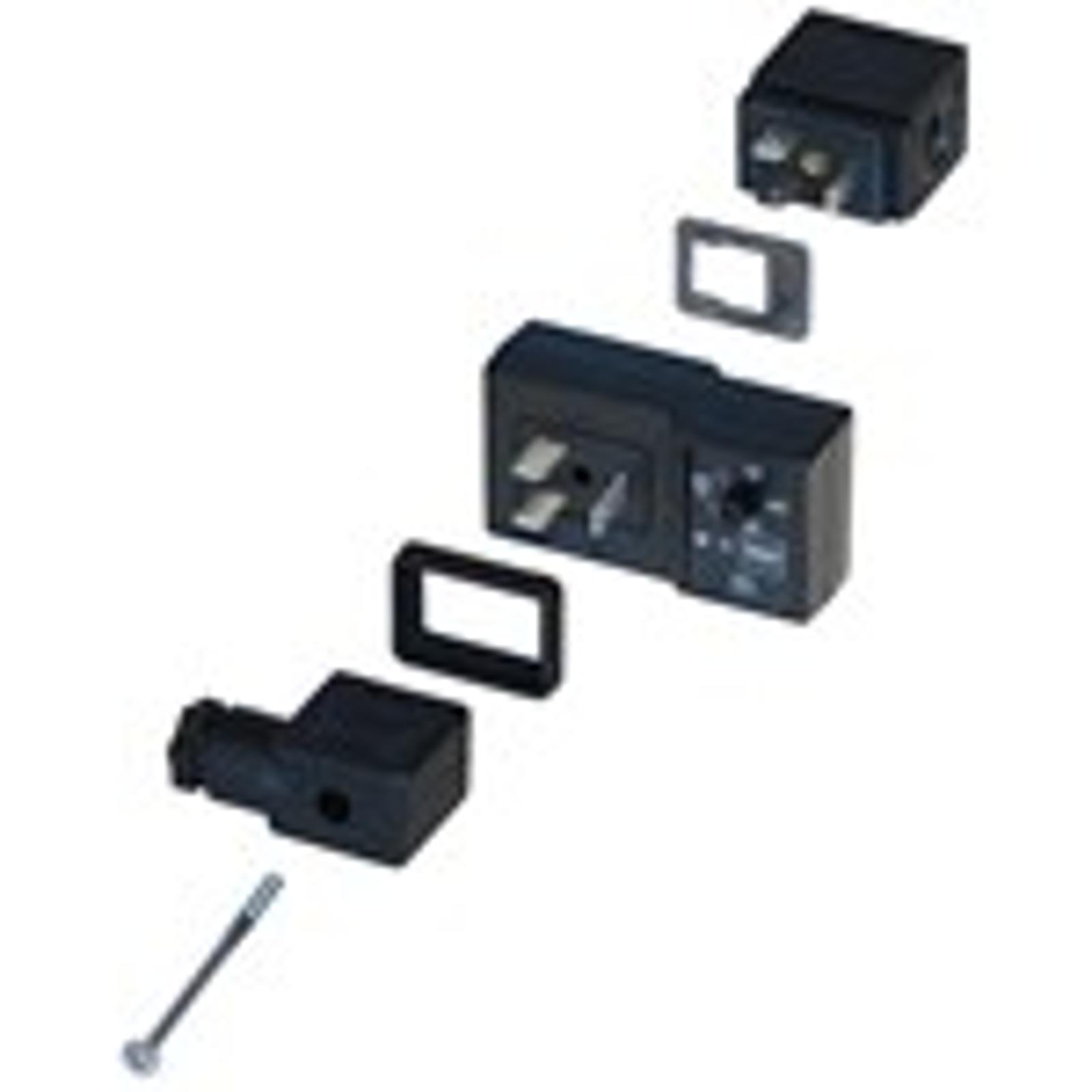

DIN form B connection, offering you a solution for DIN form B coil connections.

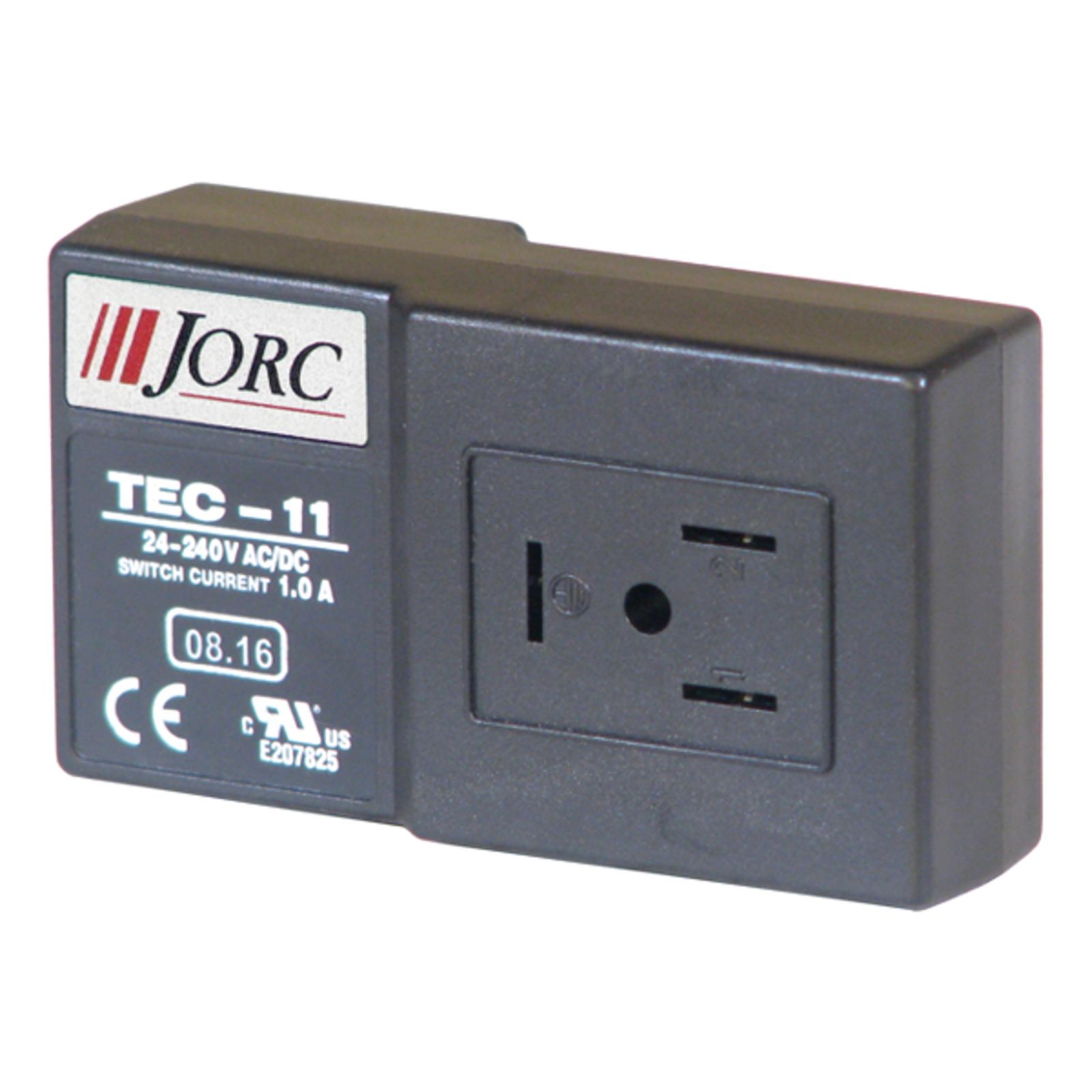

Electronic solenoid valve timer
The TEC-11 Timer is produced using SMT (Surface Mounting Technology), ensuring improved performance and consistency process.
The application of the timer is to control the OPEN (pulse) and CLOSED (pause) cycles of solenoid valves.
Cycles range options are: milli-seconds, seconds, minutes and hours.
An adjustable cycle potentiometer offers OFF cycle options, a bright yellow LED indicates in which cycle the timer is operating. The ON cycle is fixed.
The TEC-11 is designed to fit all solenoid valves with connection type DIN 43650-B/ISO 6952
Premium PCB components applied, offering you consistent reliability.
Private labelling possible.
- Multi-voltage 10 - 380VAC/DC 50/60Hz.
- Lower and higher voltages are available.
- Compact in-line design.
- TEST feature.
- ABS housing material.
| 10 - 30VAC/DC, 24 - 240VAC/DC, 48 - 380VAC/DC 50/60Hz. (please indicate) |
| 1 - 55 °C |
| 2 seconds, fixed / 1.2 - 120 minutes, adjustable |
| SMD technology, ensuring consistency in production |
| Bright LED illumination |
| ABS plastic FR grade |
| Black |
| Yes |
| DIN 43650-B/ISO 6952 |
| IP65 (NEMA4) |
