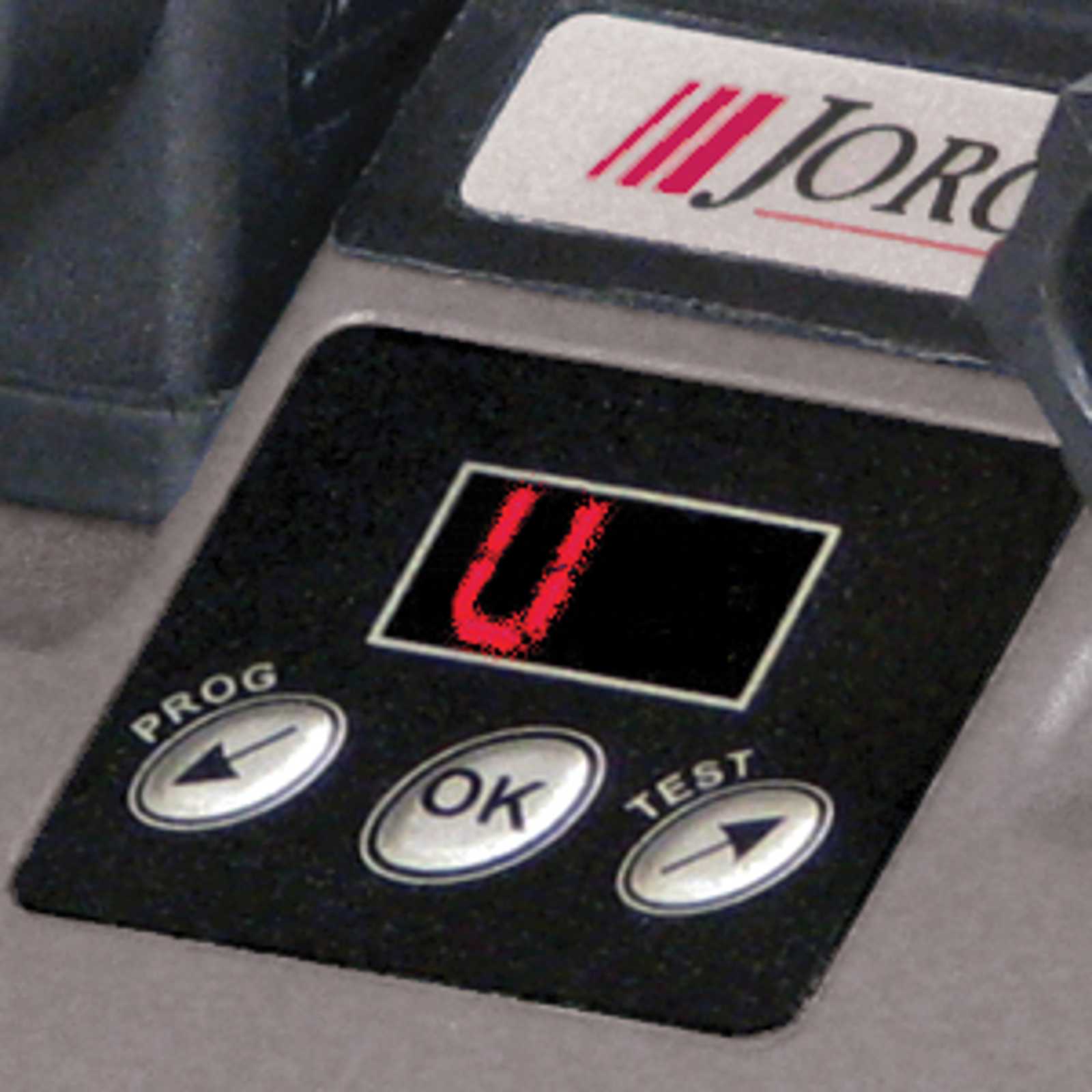

Visual display of operating status.

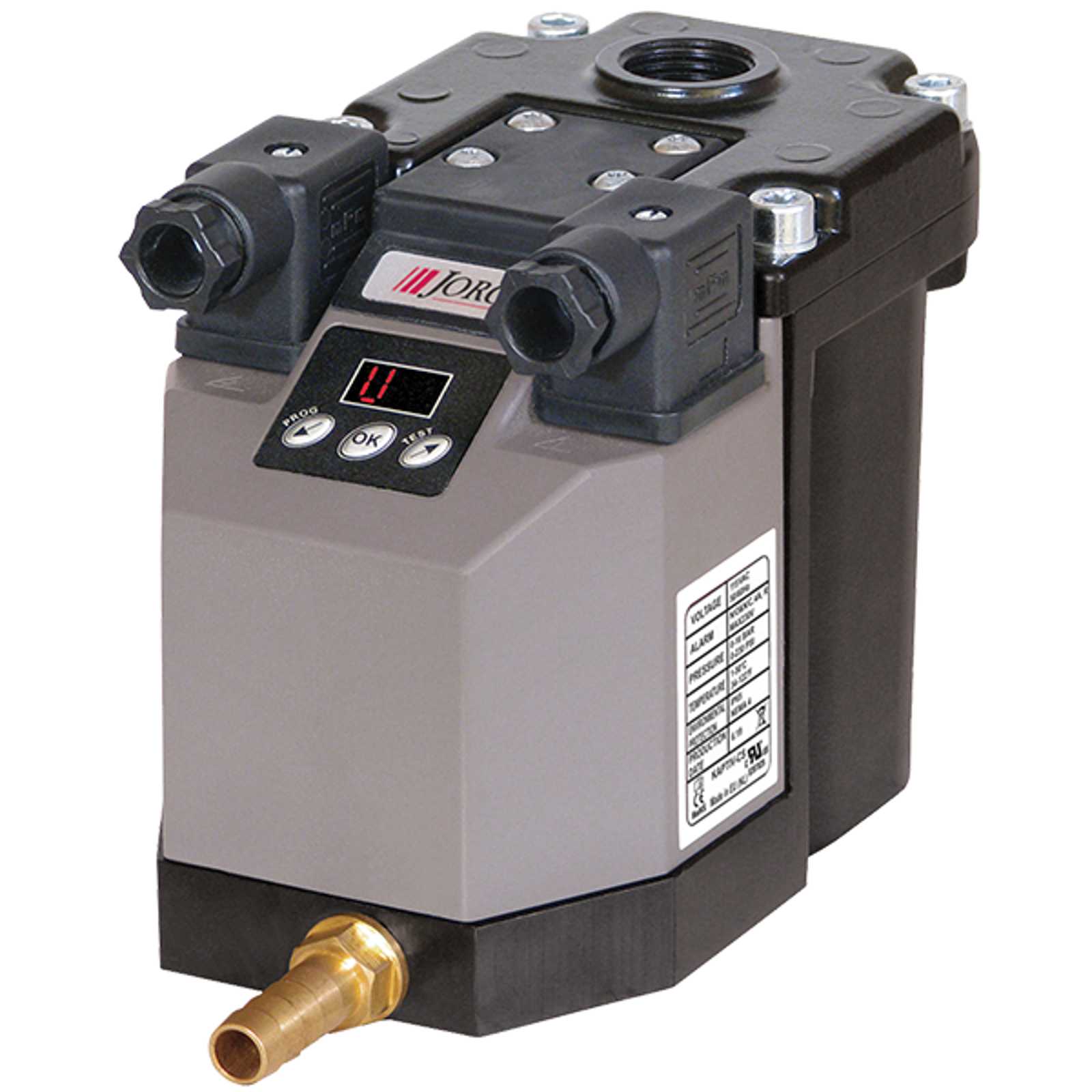

Electronic zero air loss drain
The KAPTIV-CS-D-LUX is an electronically operated level sensed condensate drain that guarantees zero air loss during the condensate discharge cycle.This comprehensive, high-end condensate draining solution incorporates alarm options, service interval warning options and an anti-air-lock feature. All programming options can be easily selected and activated by using the touch buttons. The digital display feature indicates the selected option.
The KAPTIV-CS-D-LUX has a robust industrial housing and can be installed on all compressed air system components, regardless their size and climate zone.
Only 1 model required for all systems up to any compressor capacity. The KAPTIV-CS-D-LUX can be applied in oil lubricated as well as oil-free applications.

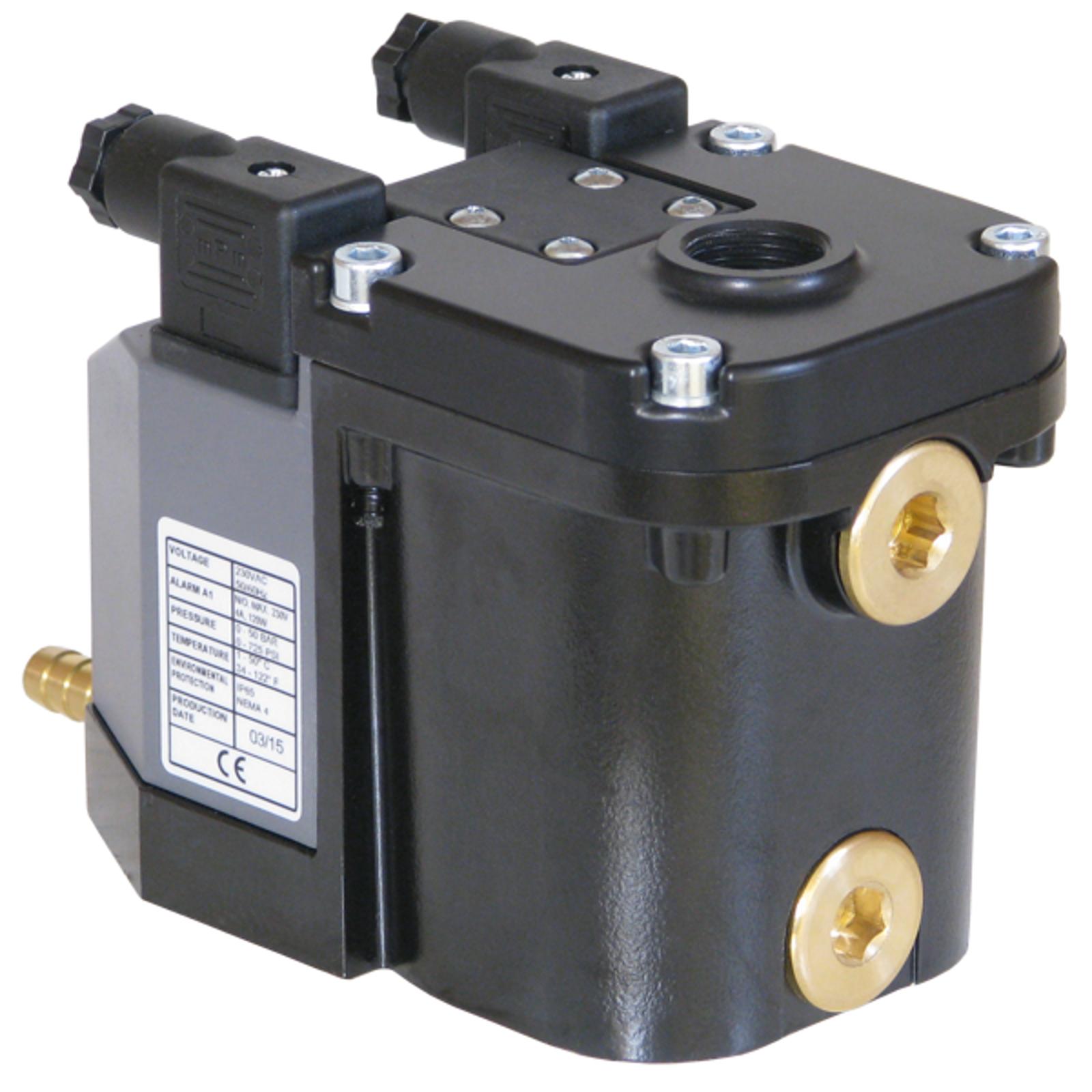

Robust aluminium housing with three inlet options, offering you installation flexibility.

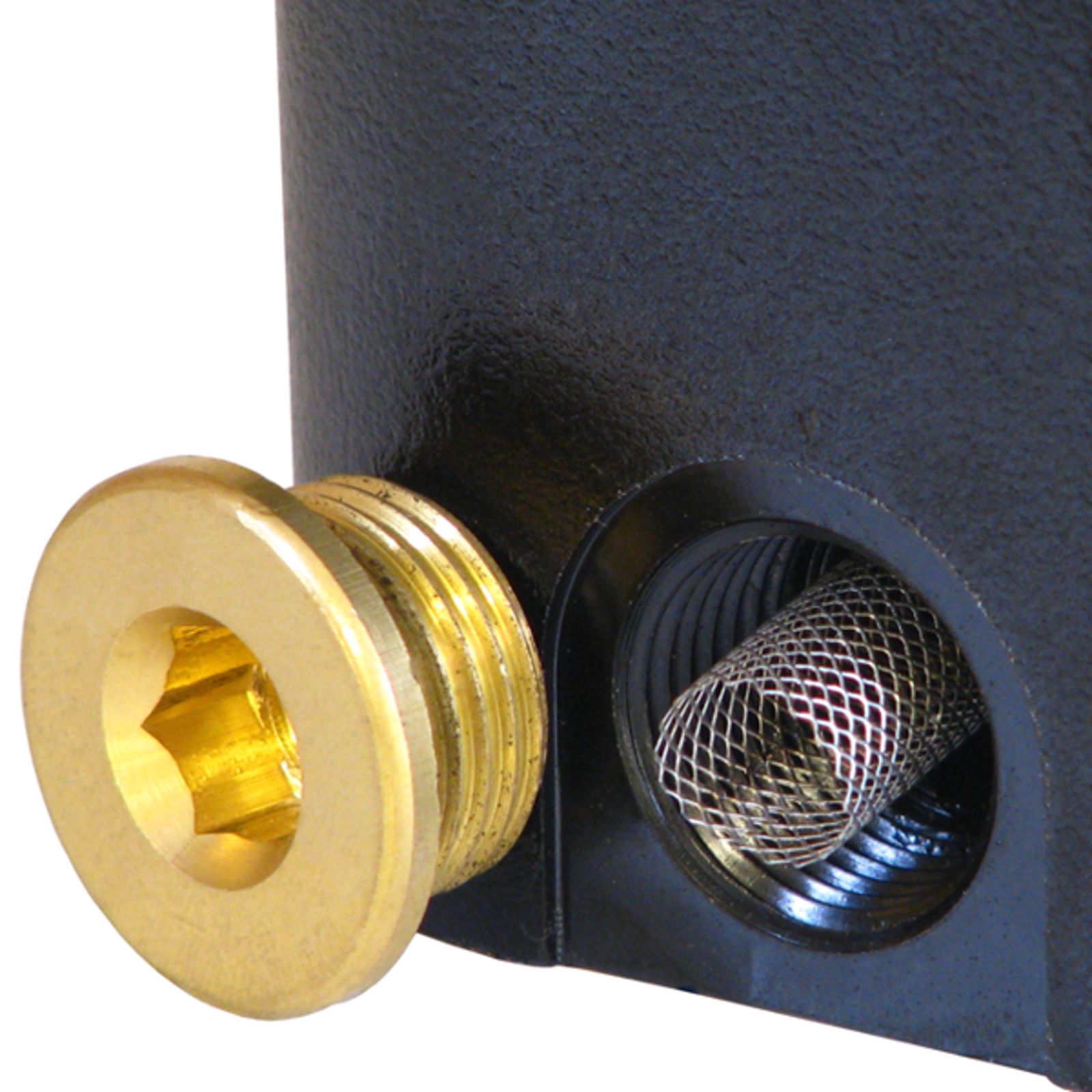

Integrated mesh strainer to protect the valve from clogging.
- Capacitive level sensing technology saves air, energy and money.
- Bio/Anti-air-lock feature
- Competitive compact zero air loss draining solution.
- Alarm function (N/O and N/C) incorporated as a standard.
- No sizing charts required.
- The KAPTIV-CS-D-LUX can be connected to any other alarm device.
- Visual display of operating status.
- Direct acting valve assembly, ensuring reliable discharge operation.
| 100 m³/min. (3500 CFM) |
| 665 liters condensate per hour at 16 bar |
| 0 - 16 bar (0 - 230 psi) |
| 1 - 60 °C (34 - 140 °F) |
| 1 - 60 °C (34 - 140 °F) |
| 230VAC / 115VAC / 24VAC / 24VDC |
| IP65 (NEMA4) |
| DIN 43650-B |
| 1/2″ BSP or NPT, 3 inlet options |
| 11 cm (top) and 7.5 & 1.5 cm (side) |
| 1/4″ BSP, with brass hose barb adapter |
| 2/2 way, direct acting |
| 4 mm |
| FPM |
| Yes |
| Yes |
| Corrosion resistant aluminium, EP coating |
| Yes |
| Yes, LED indication |
| Normally Open alarm output contact -potential free relay |
| Normally Closed alarm output contact -potential free relay |
