Powerful separating power, offering you a reliable separation of oil and water solution.
Oil water separator

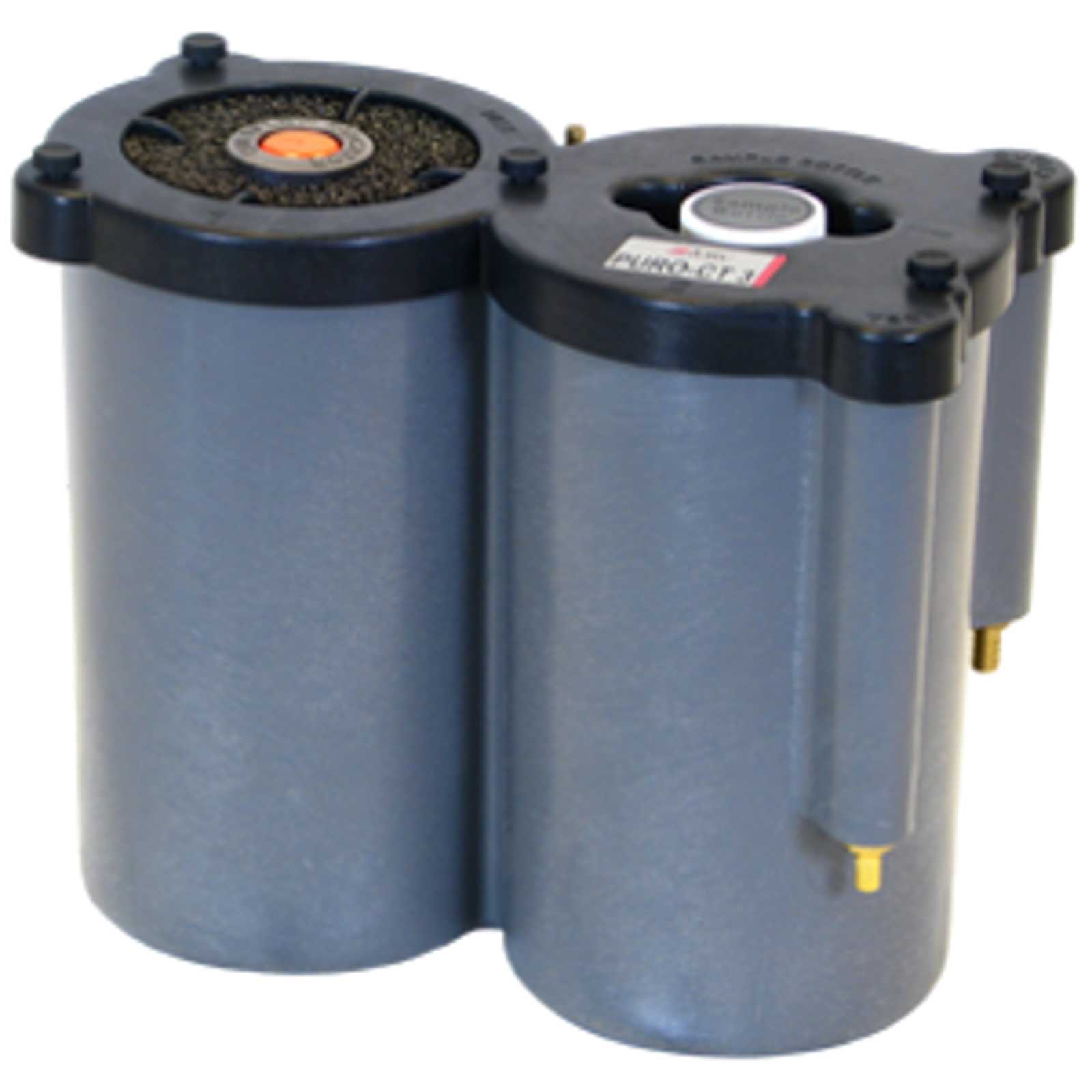

The PURO-CT range of oil water separators separates oil from condensate, generated by compressed air systems.
The PURO-CT achieves efficient separation of oil from condensate by means of directing the condensate through various separation stages.
As condensate flows in to the PURO-CT, the oil is filtered out through various filtration elements.
The PURO-CT uses adsorption filter materials, instead of a weir, to remove the bulk of the oil.

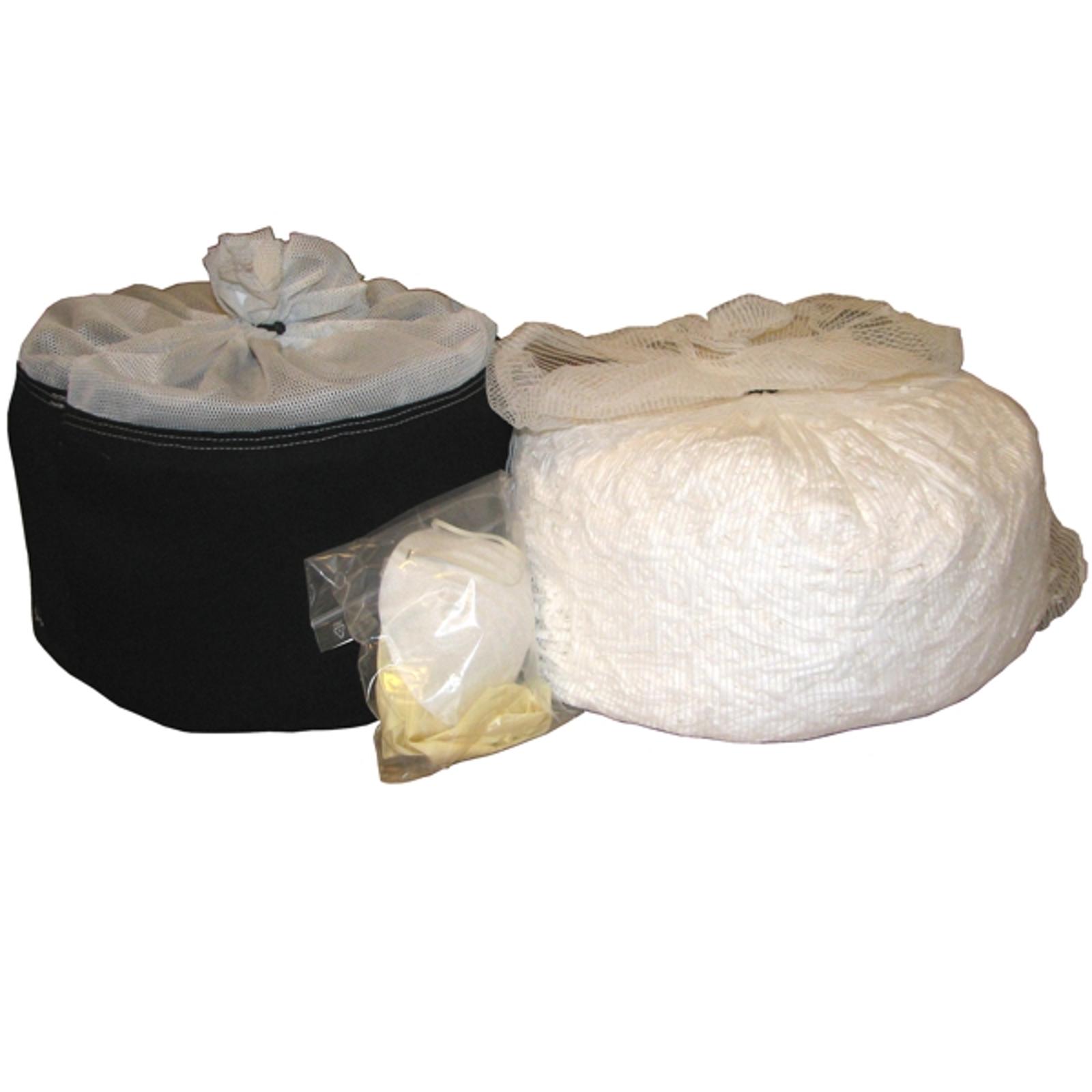

The life of the PURO-CT first stage filtration element is determined by the amount of oil removed, not by the amount of condensate treated.
The PURO-CT carbon element is utilised only for final purification purposes and ensures that the targeted values of <10 ppm are achieved.
The professional design of the PURO-CT is incredibly compact and the elements are lightweight, maximising the ergonomic factors when carrying out routine maintenance.
Brass connection inserts ensure a secure fixing of the condensate inlets and outlet connections.
Powerful separating power, offering you a reliable separation of oil and water solution.

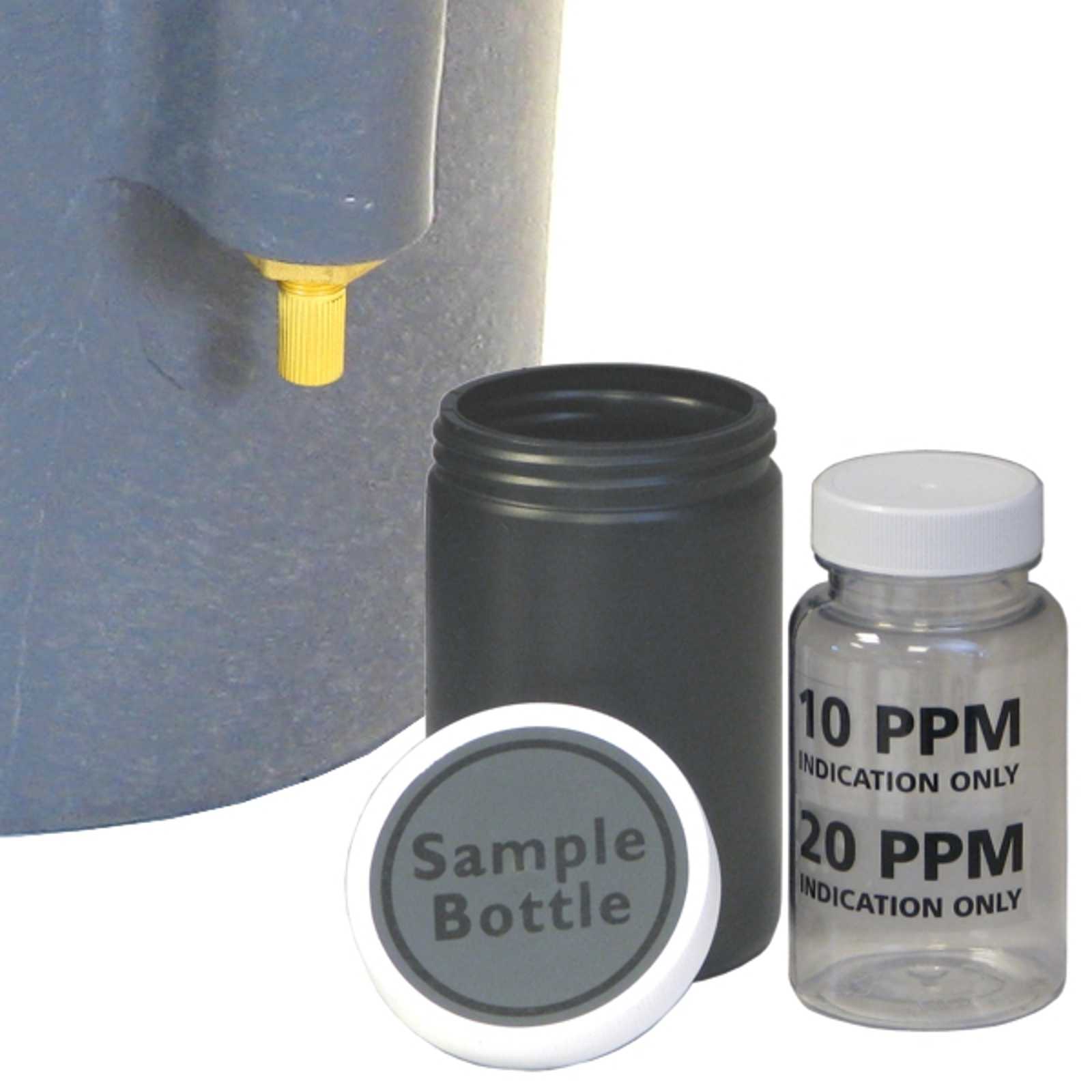

Test valve & sample bottle for output testing/measuring the ppm value (indication).
Small footprint, offering you installation flexibility.
- Maximum compressor capacity 3 m³/min. (125 CFM)
- Operates with all JORC type condensate drains (both timer controlled and level sensed)

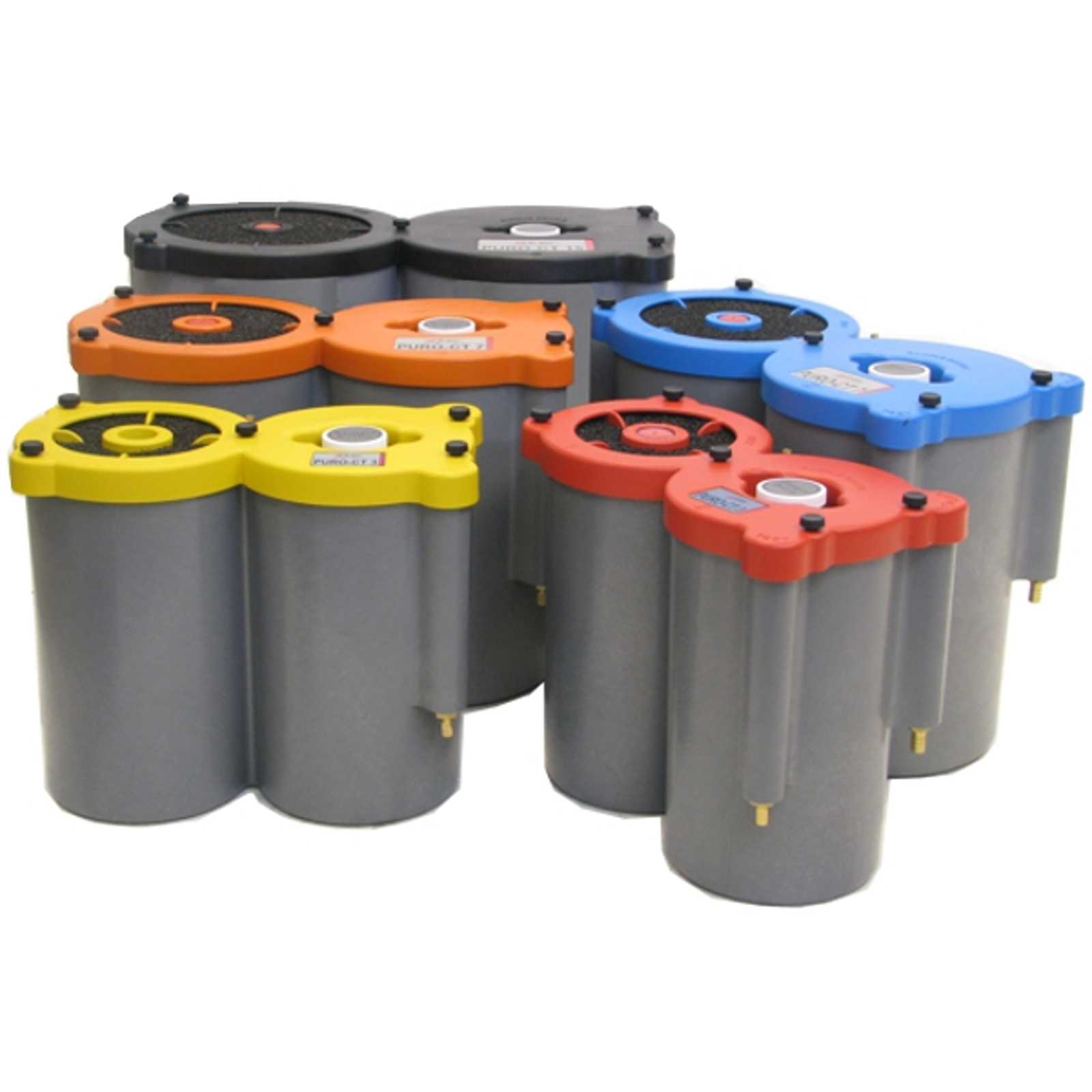

- Private labelling is possible, including different coloured lids
- Freight cost advantages, even the largest model can be sent as a parcel shipment
- Light and easy replacement of elements
- Simple installation and maintenance procedures
- Test valve & sample bottle for output testing/measuring the ppm value (indication)
- Overflow indicator
| 3 m³/min. (125 CFM) |
| 3 litres |
| 1/2", with 10 mm brass hose barb adapter |
| 1/2", with 14 mm brass hose barb adapter |
| Yes |
| Yes |
| <10 ppm |
| PPC |
| Grey |
| Black |
| Yes |
| Yes |
