DISTRIBUTOR

Compressed air condensate distributor

Large compressor systems might require two or more oil/water separators to be installed to match the total compressor capacity of an installation. To connect the oil/water separators together and to ensure an even distribution of condensate in to the oil/water separators, you require the DISTRIBUTOR. The DISTRIBUTOR ensures an equal distribution of the condensate in to the oil/water separators and the elements are subsequently saturated evenly.

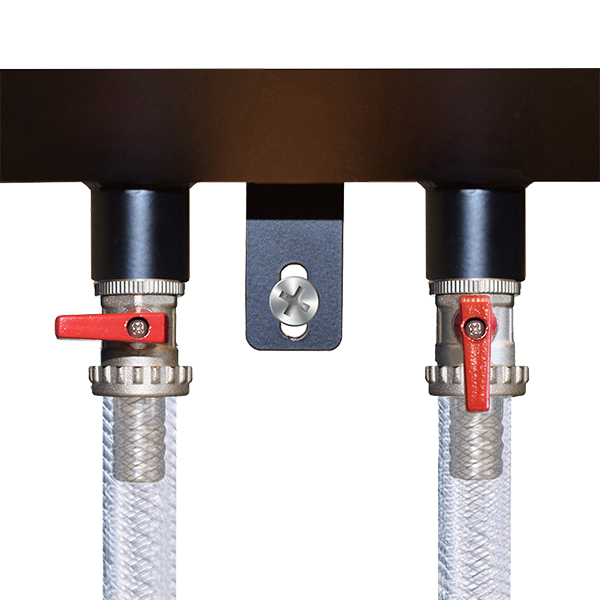

The DISTRIBUTOR has two 1" condensate inlets and six 1/2" outlets with integrated ball valves, allowing you to connect two and up to six oil/water separators.

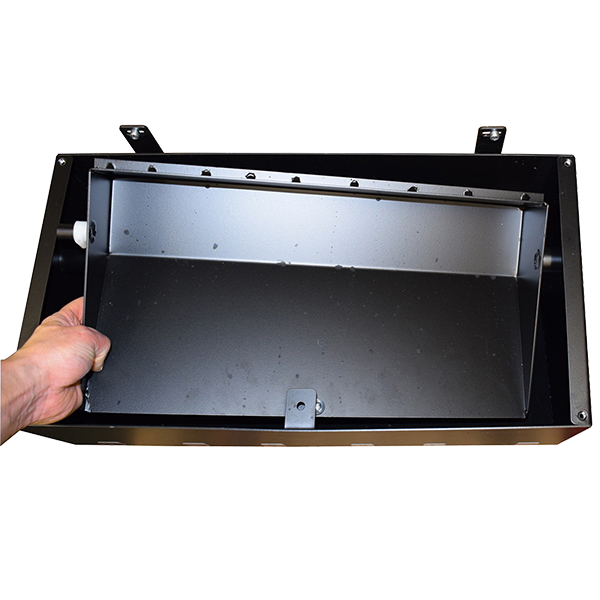

To service the DISTRIBUTOR simply loosen the 4 top screws and remove the lid. This will give you instant access to the inner working mechanism.

The depressurising chamber ensures compressed air condensate depressurisation and the subsequent distribution into the oil/water separators.

Features

The equal condensate distribution ensures even filter element saturation.

Removable lid, offering quick access to the working mechanism, for servicing purposes.

Specifications

OIL/WATER SEPARATOR CONNECTION POINTS	6
CONDENSATE INLET THREAD CONNECTION	1" BSP (2 off)
INLET HOSE CONNECTIONS	25-26 mm (hose inner diameter)
CONDENSATE OUTLET THREAD CONNECTION	1/2" BSP (6 off)
OUTLET HOSE CONNECTIONS	14-16 mm (hose inner diameter)
MAX. SYSTEM PRESSURE	16 bar (230 psi)
INTEGRATED BALL VALVES	Yes
HOUSING MATERIAL	Aluminium, powder coated black
