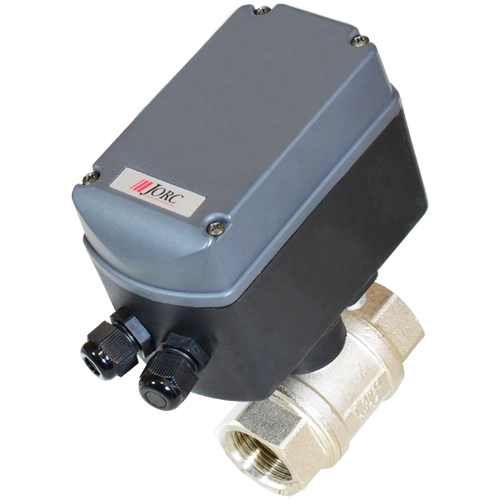

AIR-SAVER-LS G2

Compressed air energy saver

The AIR-SAVER-LS helps end-users to save valuable compressed air from escaping unnecessarily, reducing compressor running hours and thus extending its lifetime, saving energy and operating costs.

The AIR-SAVER-LS G2 (Light Switch) is installed in the compressed air line after the air receiver. The AIR-SAVER-LS G2 is controlled via an internal relay which is connected to an external switch and separate power supply.

A typical installation example is to connect the AIR-SAVER-LS to a light switch. By switching on the lights in the production area, the AIR-SAVER-LS will subsequently open. The saved compressed air flows into the factory compressed air line and the compressor kicks in to produce the air needed to fill the system. At the end of the work-shift you switch off the light(s) and the AIR-SAVER-LS will close accordingly.

The AIR-SAVER is also available as a time controlled option with a week programming feature. This version allows you to set the open and closed position according to customer specific demands. For more information click here


AIR SAVER



A typical installation of an AIR-SAVER-LS connected to a light switch.

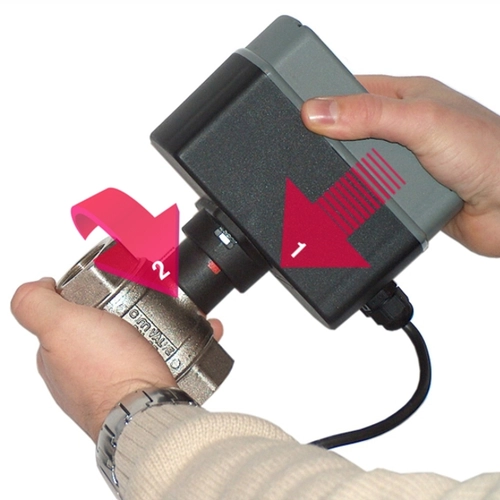

Manual valve opening and closing possible, in case of a power failure.

  • At least one air receiver’s worth of compressed air savings per day
  • No unnecessary compressor start-up during periods when compressed air is not required
  • Compressor, dryer and filter activities are avoided during factory closing hours
  • Manual valve opening and closing possible, in case of a power failure
  • Very quick and easy to connect to an external (light) switch
  • Slow valve opening to avoid “water hammer” in pipe line system
  • Brass valve, nickel plated
  • Compact design - Easy to install
  • MIN./MAX. SYSTEM PRESSURE
0 - 16 bar
  • MIN./MAX. MEDIUM TEMPERATURE
1 - 100 °C
  • MIN./MAX. AMBIENT TEMPERATURE
1 - 50 °C
  • SUPPLY VOLTAGE OPTIONS
115 VAC or 230 VAC 50/60Hz.
  • POWER CONSUMPTION
Approx. 9W during cycle rotation
  • ENCLOSURE PROTECTION RATING
IP54 (NEMA13)
  • RELAY SWITCH
115 VAC or 230 VAC
  • VALVE INLET/OUTLET CONNECTIONS
2" (BSP or NPT)
  • VALVE OPENING/CLOSING DURATION
105 sec. (90°)
  • VALVE HOUSING MATERIAL
Brass valve, nickel plated
  • MANUAL OVERRIDE
Yes

AIR-SAVER-LS, SEE HOW IT WORKS.

AIR-SAVER-LS INTRODUCTION:

Features

A typical installation of an AIR-SAVER-LS connected to a light switch.


Manual valve opening and closing possible, in case of a power failure.

  • At least one air receiver’s worth of compressed air savings per day
  • No unnecessary compressor start-up during periods when compressed air is not required
  • Compressor, dryer and filter activities are avoided during factory closing hours
  • Manual valve opening and closing possible, in case of a power failure
  • Very quick and easy to connect to an external (light) switch
  • Slow valve opening to avoid “water hammer” in pipe line system
  • Brass valve, nickel plated
  • Compact design - Easy to install

Specifications

  • MIN./MAX. SYSTEM PRESSURE
0 - 16 bar
  • MIN./MAX. MEDIUM TEMPERATURE
1 - 100 °C
  • MIN./MAX. AMBIENT TEMPERATURE
1 - 50 °C
  • SUPPLY VOLTAGE OPTIONS
115 VAC or 230 VAC 50/60Hz.
  • POWER CONSUMPTION
Approx. 9W during cycle rotation
  • ENCLOSURE PROTECTION RATING
IP54 (NEMA13)
  • RELAY SWITCH
115 VAC or 230 VAC
  • VALVE INLET/OUTLET CONNECTIONS
2" (BSP or NPT)
  • VALVE OPENING/CLOSING DURATION
105 sec. (90°)
  • VALVE HOUSING MATERIAL
Brass valve, nickel plated
  • MANUAL OVERRIDE
Yes
